CRL P9 42 in Polished Stainless Steel Railing Kit 180° Center Post
CRL P9 42 in Polished Stainless Steel Railing Kit 180° Center Post
Regular price
$524.36 CAD
Regular price
Sale price
$524.36 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P942CPS
Shipping Weight: 13.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 13.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Length
5 in. (127 mm)
Base Plate Mounting Holes
4
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Polished Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick glass or panel infill
- Glass attachment fittings sold separately (purchase by application)
- Standard post height: 42" (1.07 m); custom post heights available
- Two standard stainless finishes; custom powder coat finishes available

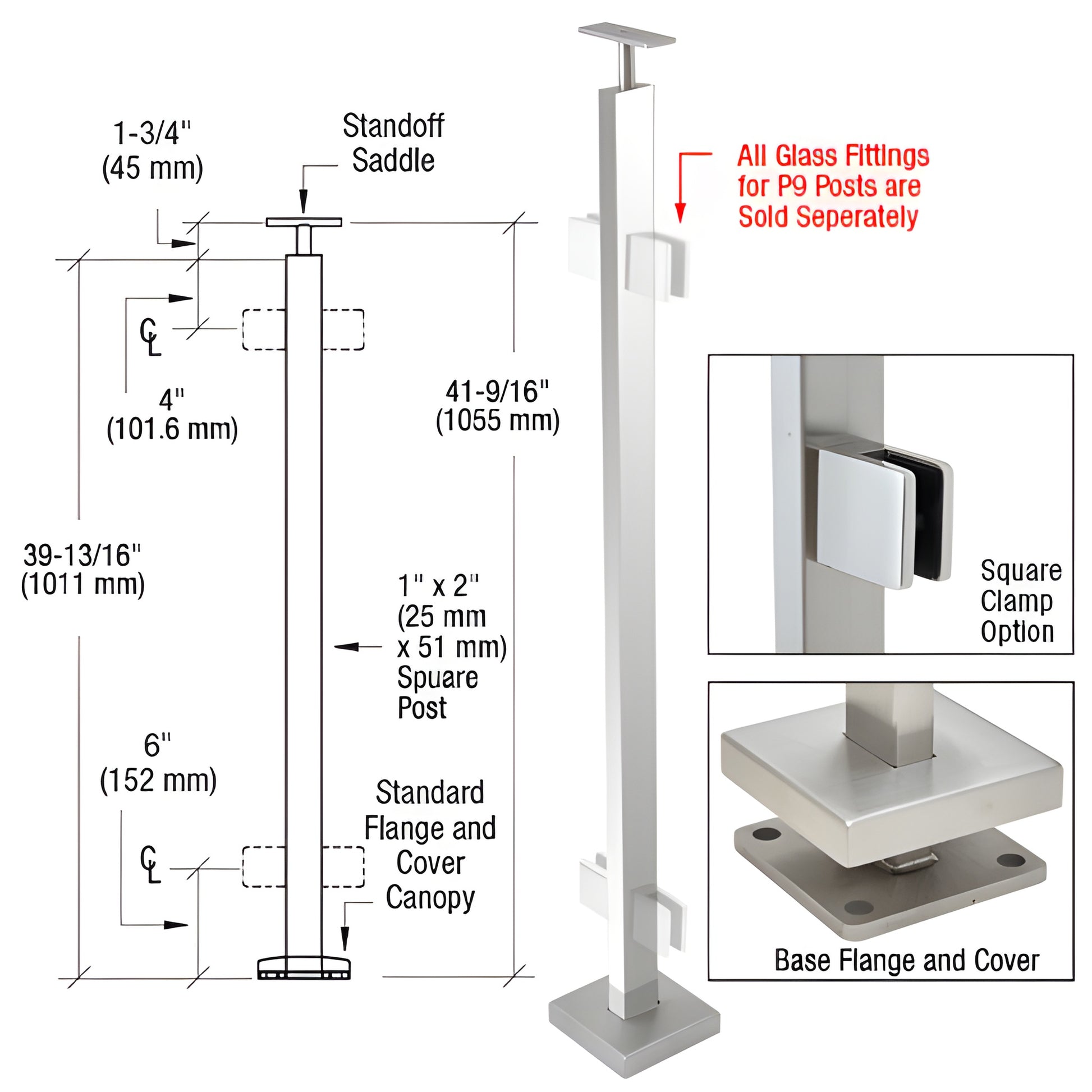

CRL P9 Surface Mounted Post Railing Kits (SKU: P942CPS) are manufactured from 1" x 2" (25 mm x 51 mm) stainless steel rectangular tubing and are engineered for guardrail and handrail applications. Saddles support a 1" x 2" (25 mm x 51 mm) stainless steel rectangular top rail. Kits include base plate, base cover flange, and welded top saddle with vertical adjustment for precise alignment. For top rail attachment screws, specify Cat. No. PRS1032 (10-32 x 5/8" stainless steel screws, sold 50 per pack). These surface mounted post kits are ideal for glass railing systems and commercial or residential balcony guardrails.
Product Warning:
All P-Series post kits are sold without glass attachment fittings; fittings must be purchased separately.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Need a custom height or finish? Contact CRL Customer Service to configure your P942CPS surface mounted post railing kit today.
