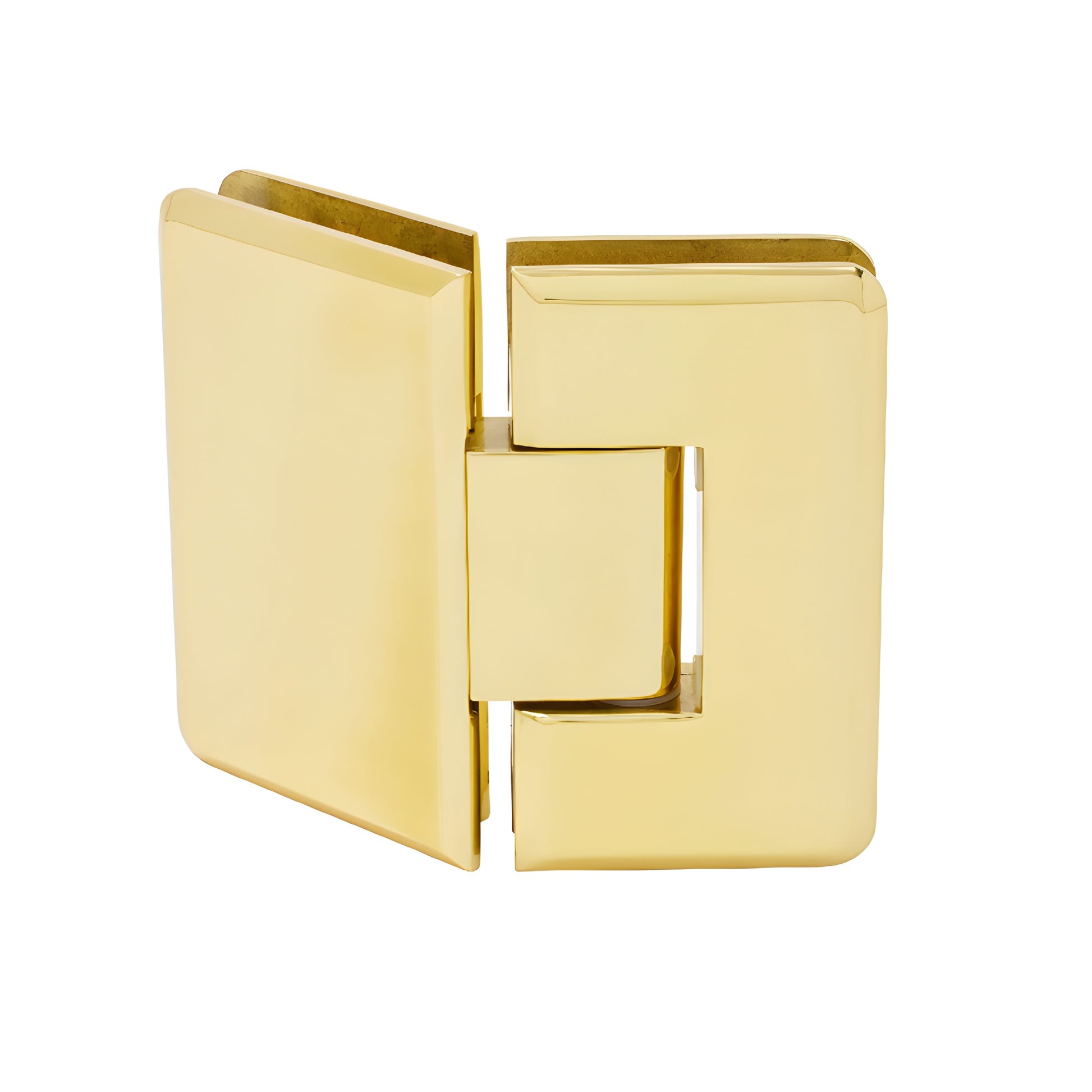

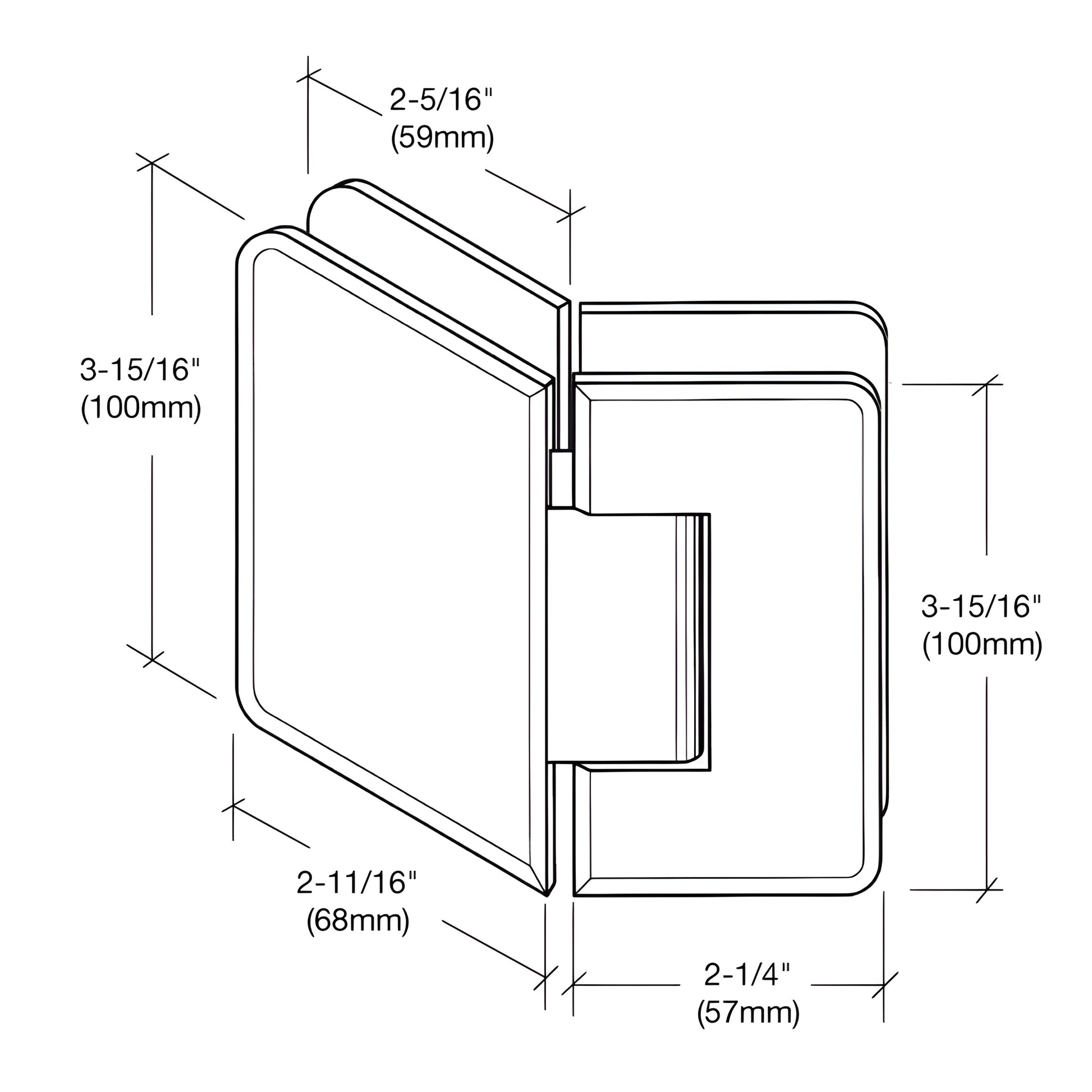

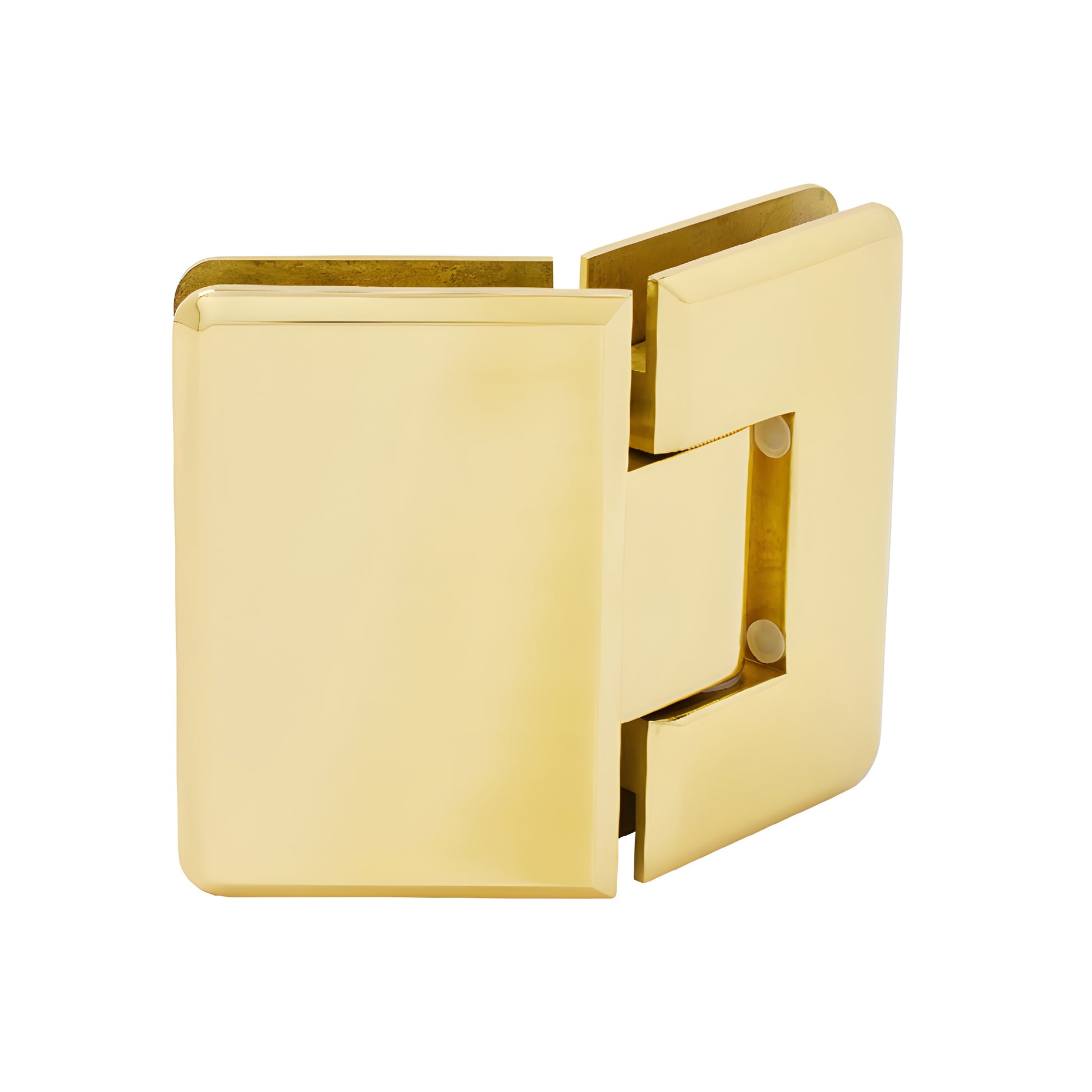

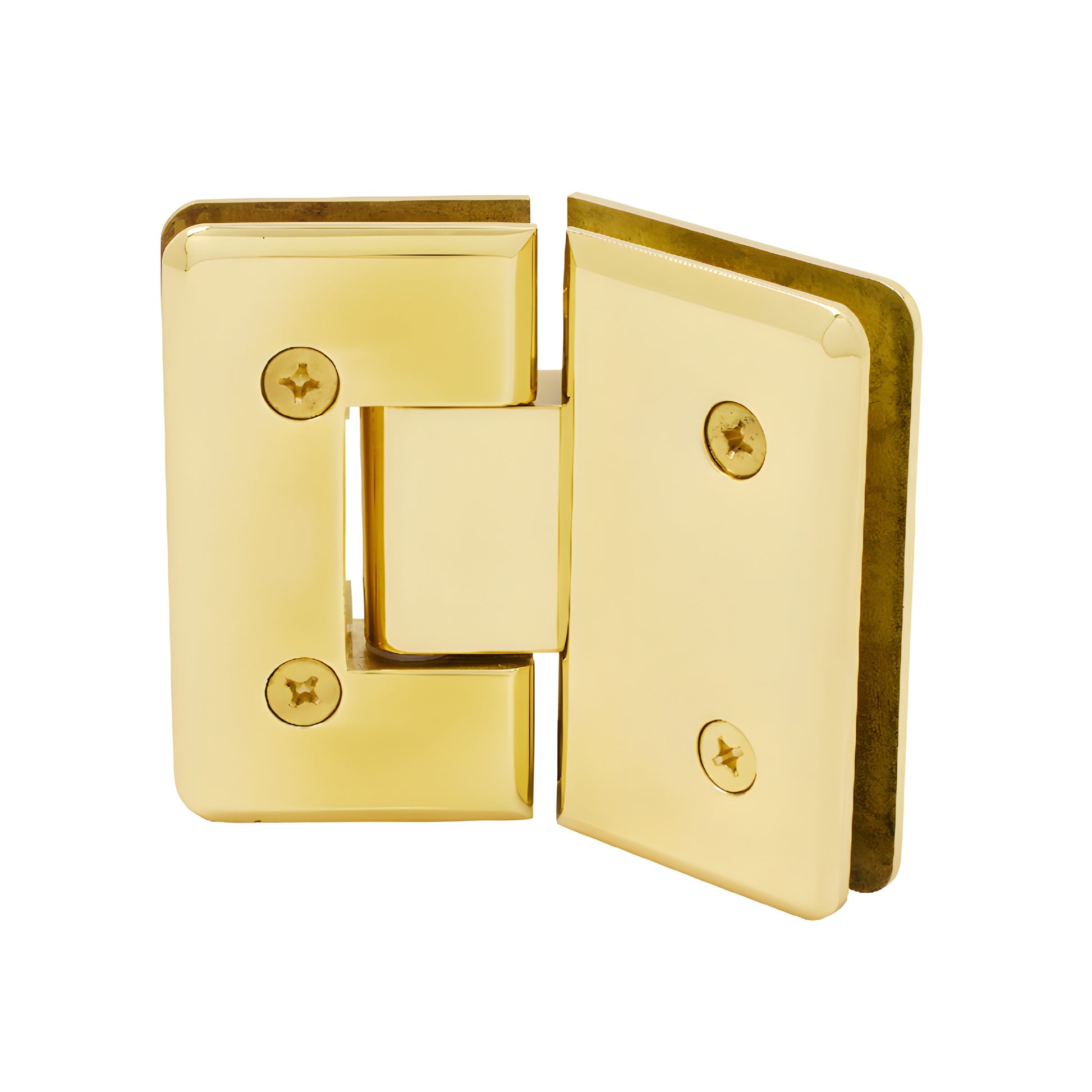

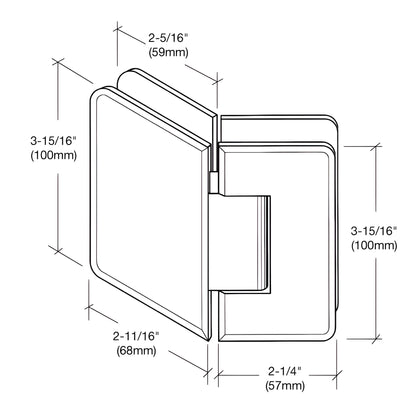

CRL Cologne 045 135° Polished Brass Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes (including brass)
• 135º glass-to-glass hinge for frameless shower doors
• Use with monolithic tempered glass

CRL Cologne Hinges (SKU: C0L045BR) combine radius corners and beveled edges for a sleek, modern look—similar to Vienna hinges but engineered for wider, heavier frameless shower doors. Built from solid brass, the Cologne series uses two internal steel pins to offer mounting flexibility: leave the pins in for CRL "mouse-ears" cut-outs, or remove them for rectangular/square cut-outs (including some competitive templates). These design choices make Cologne Hinges a strong, adaptable option for residential and hotel shower door installations.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90º on one side and 85º on the other. Standard models ship with the 90º side active; Pre-Set models ship at 85º for a 5º tighter closure toward the shower interior. The pin can be rotated (not flipped) to change engagement.

CUSTOM PIVOT PIN: Custom pivot pins are available to accommodate off-angle walls or non-90º installations—specify the required angle (up to 45º) when ordering.

Load Capacities:

• Two-hinge installation (3/8"–1/2" glass): supports up to 110 lb (50 kg); max door width 36" (914 mm)
• Three-hinge installation (3/8"–1/2" glass): supports up to 140 lb (63 kg); max door width 36" (914 mm)

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90º in and 90º out (double-action)
Closing Type: Self-centering within 15º of closed position
Cut-Out Required: Cut-out required (except C0L092, which requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes are available—contact CRL Technical Sales for finish options and lead times.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use. For uses outside these applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—CRL cut-out dimensions may differ from other
