Product Details
- For 5/16" to 1/2" (8 to 12 mm) Thick Glass
- Glass-to-Glass Application
- Special Nylock Nut Allows Pivoting of Clamps
- Glass Transom Swivels to Allow Release of Steam
- Use Monolithic Tempered Glass

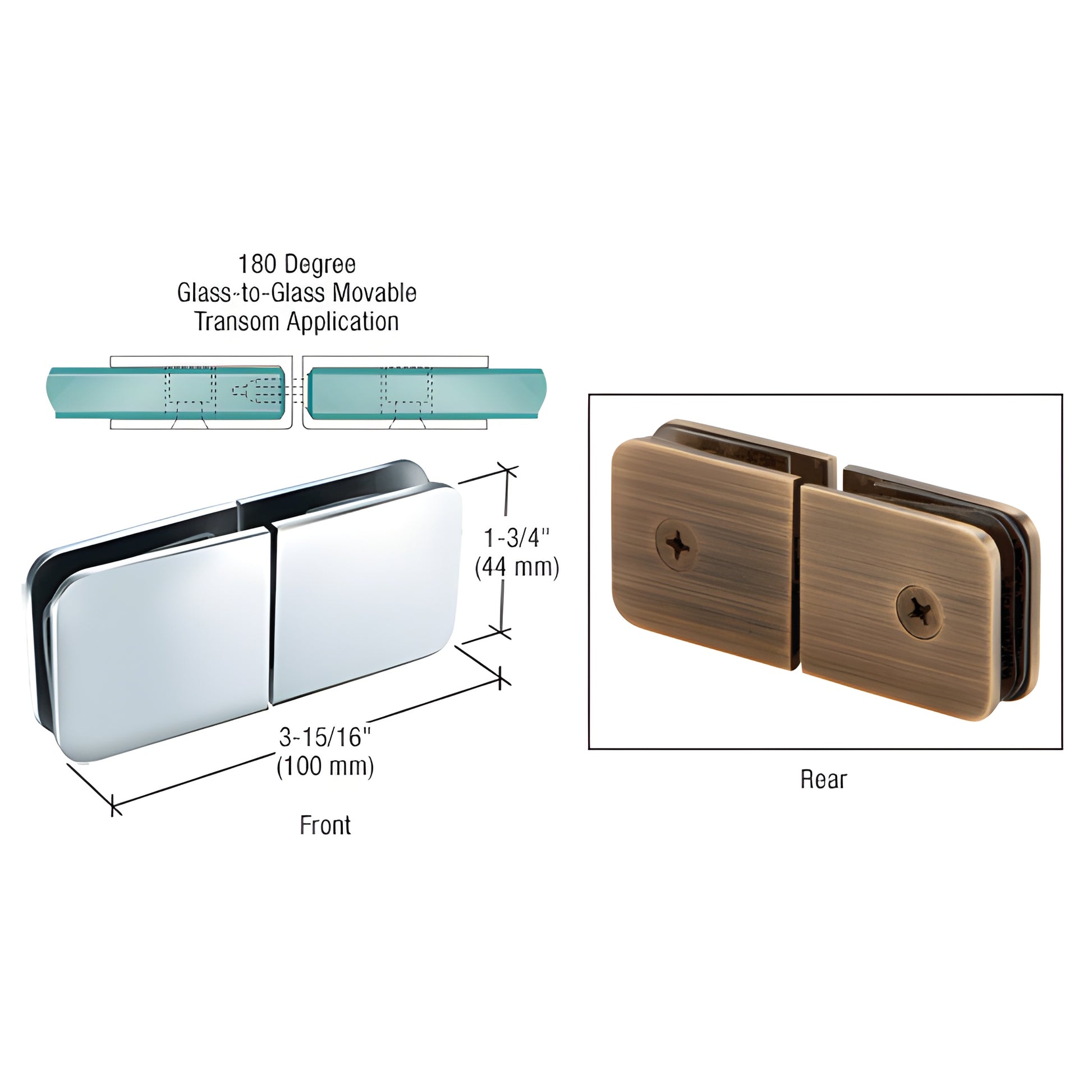

The Traditional 180 Degree Glass-to-Glass Movable Transom Clamp is designed to pivot transom panels above the shower door. Clamp should be centered on glass for optimum performance. Replacement parts are Cat. Nos. 90295A120 (Nylon Washer), 193004 (Nylon Lock Nut), 211039 (Flat Head Screw), and UCG77 (Gaskets).
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Glass Fabrication Required: 5/8" or 3/4" (16 or 19 mm) diameter hole in fixed panel and a notch in transom.
Includes: Gaskets
NOTE: Maximum transom size is 12" x 30" (305 x 762 mm) wide. Larger transoms require the use of Square or Beveled Transom Clamps, or pivot hinges used as movable transom clamps. Call for details.
Product Warning:
Maximum transom size is 12" (305 mm) high x 30" (762 mm) wide. Larger transoms require the use of pivot hinges used as a transom clamp. Contact Technical Sales Shower Door Department for details.
