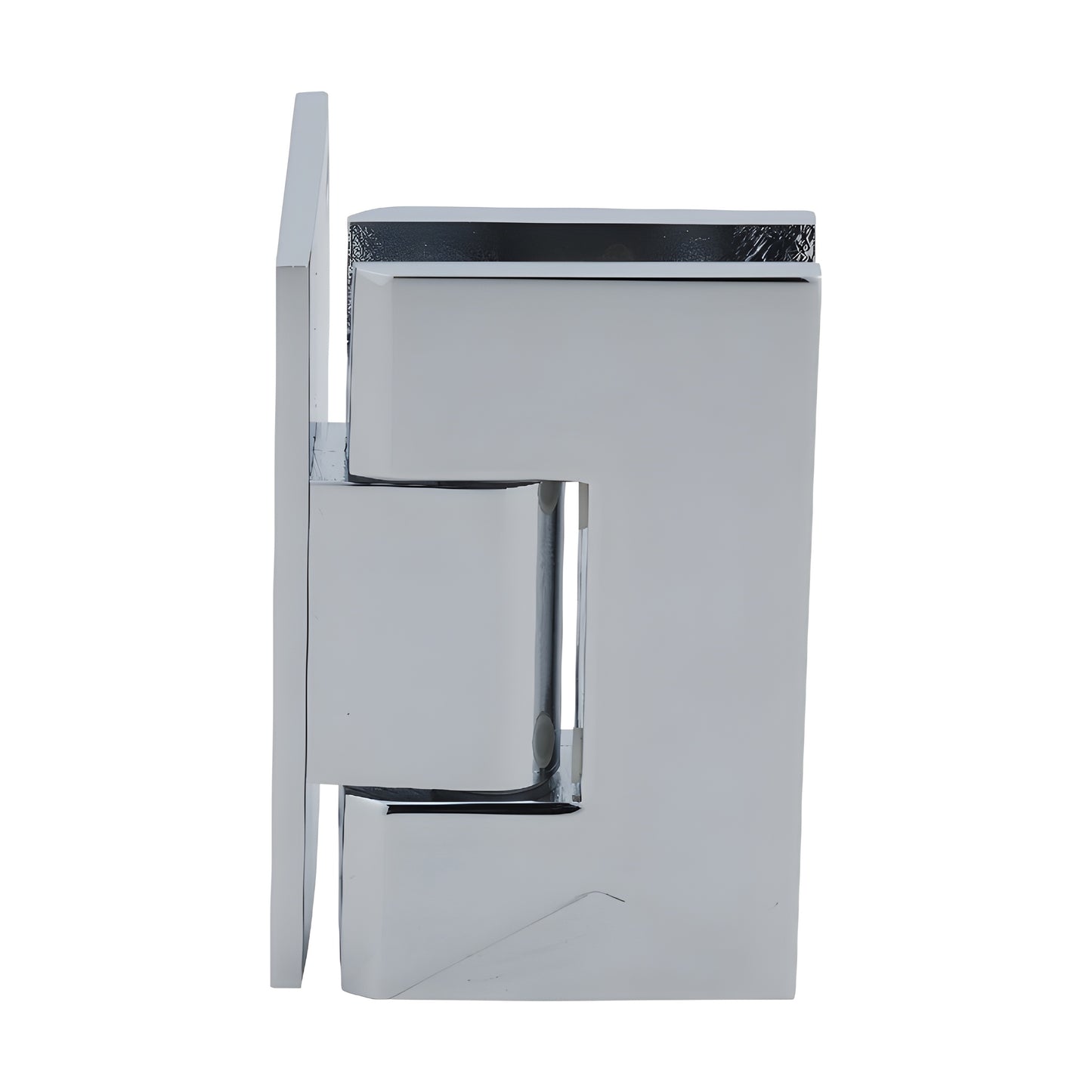

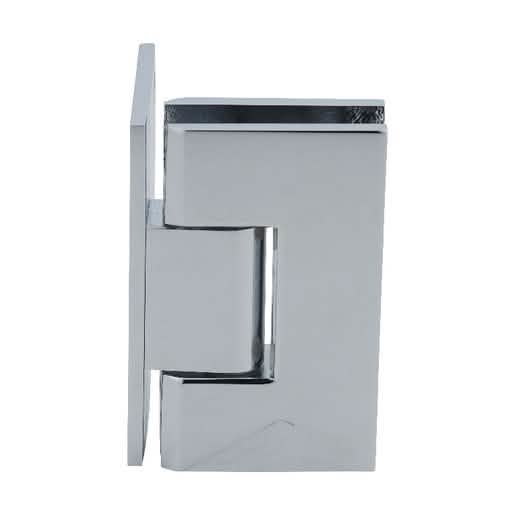

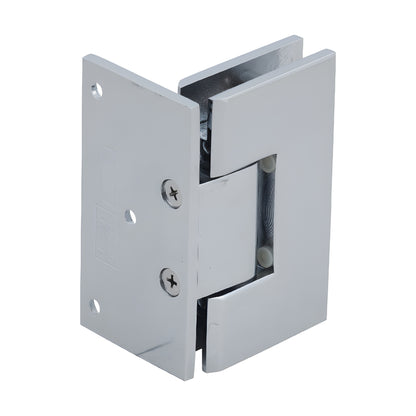

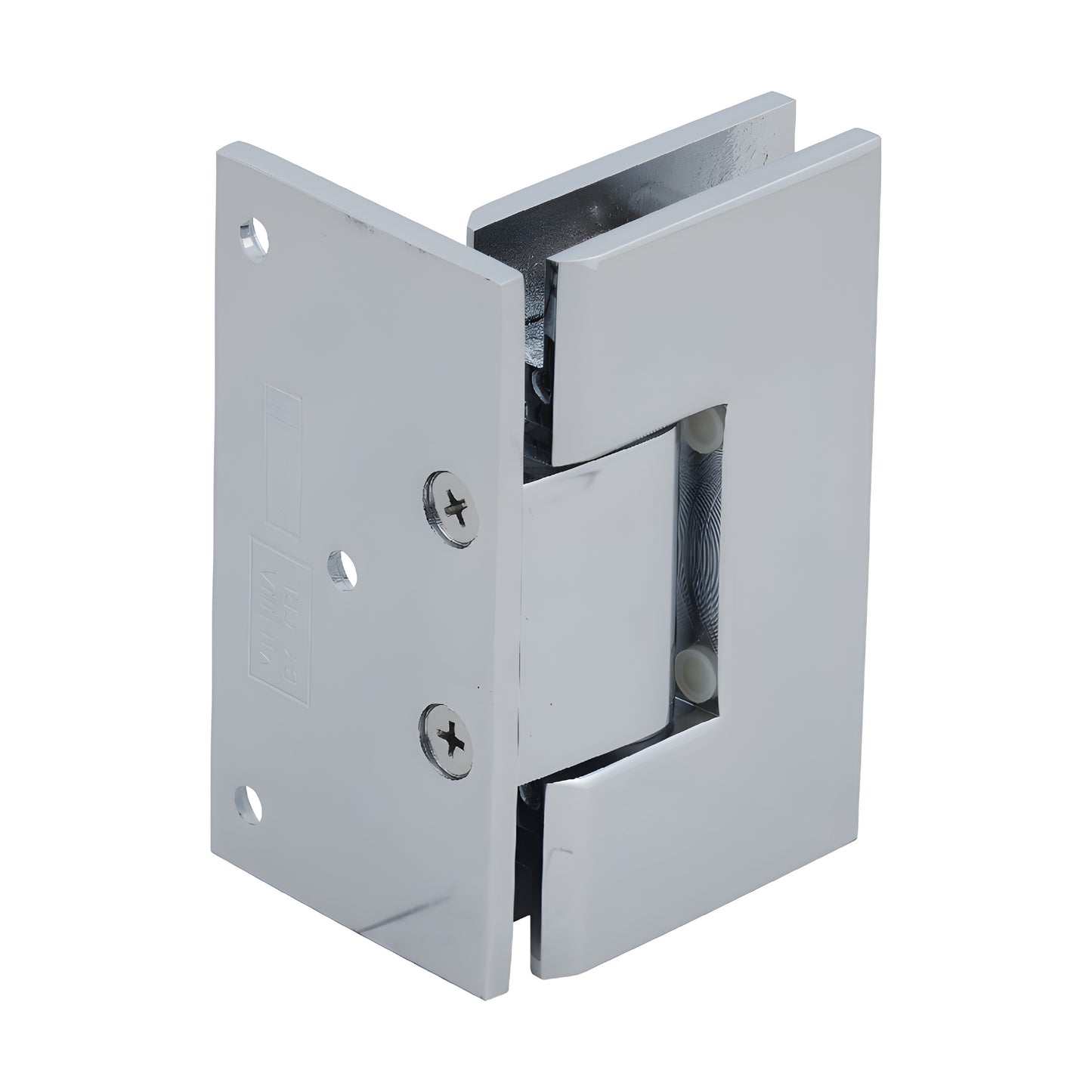

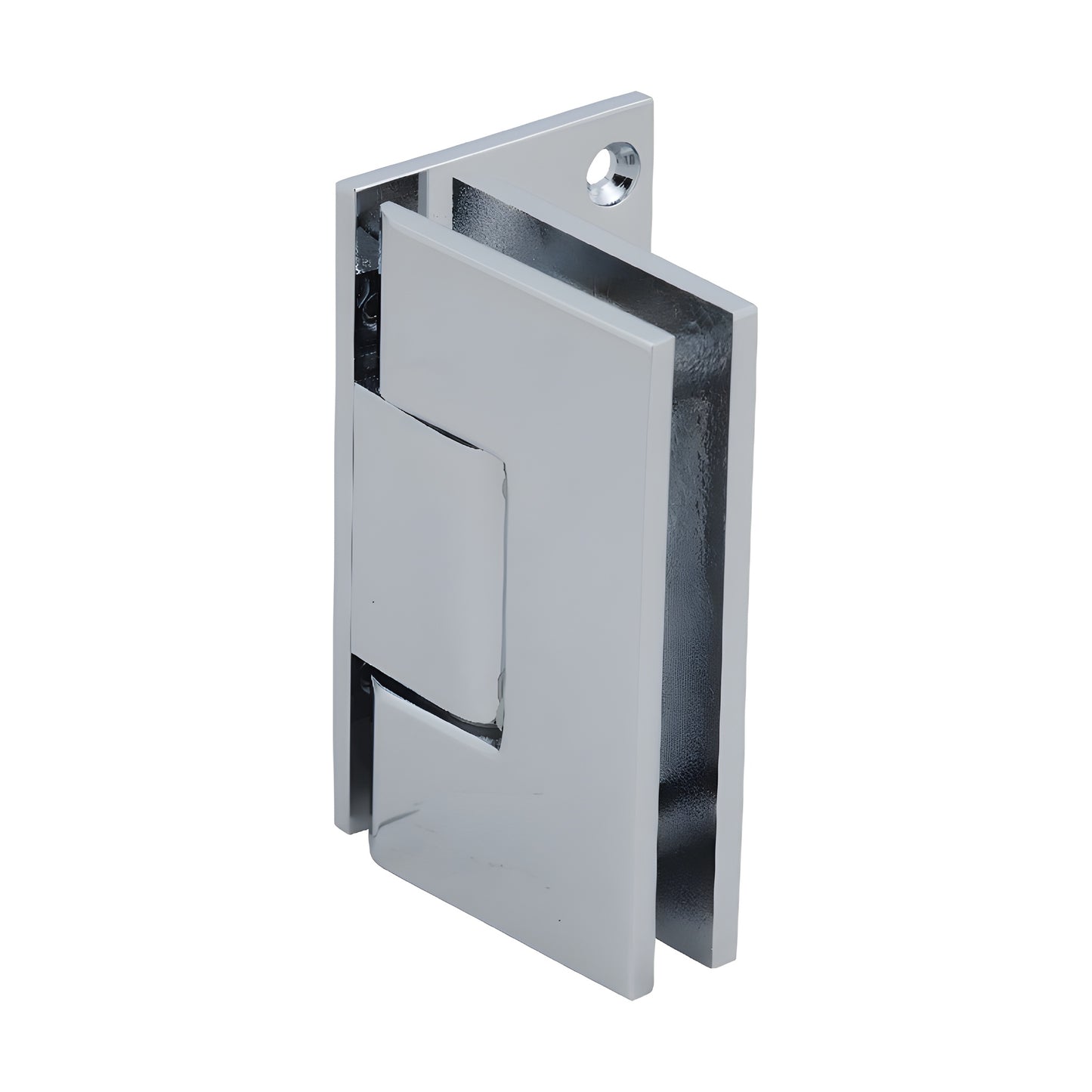

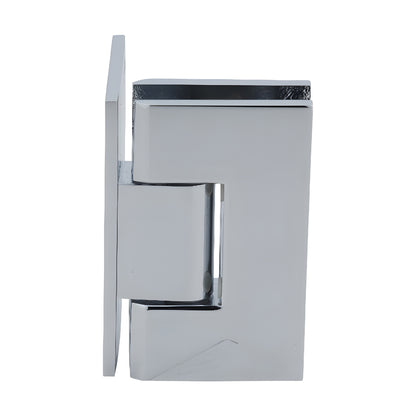

CRL Vienna 044 Polished Chrome 5° Wall-Mount Offset Glass Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several durable finishes (custom finishes available on request)
• 3 Year Warranty
• 5° pre-set model (factory set for 5° tighter closure into shower interior)
• Designed for monolithic tempered glass shower doors

CRL Vienna Hinges — SKU: V1E544CH are engineered for wider, heavier glass shower doors when standard hinges are insufficient. Two internal steel template pins give installation flexibility: leave pins in for CRL "mouse-ears" cut-outs or remove pins for increased adjustability and compatibility with CRL or some competitive rectangular, square-cornered cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with 90° activated; Pre-Set models ship with the 85° side activated for a 5° tighter closure into the shower interior. Rotate the pin (do not flip) to change activation.

CUSTOM PIVOT PIN: Custom pivot pins available up to 45° to accommodate off-angle installations where walls do not meet the door at 90°.

Load & Door Width Capacities:
Using two hinges with 3/8" (10 mm) glass: holds up to 100 lbs (45 kg), max door width 34" (864 mm).
Using two hinges with 1/2" (12 mm) glass: holds up to 100 lbs (45 kg), max door width 32" (813 mm).
Using three hinges with 3/8" (10 mm) glass: holds up to 130 lbs (59 kg), max door width 34" (864 mm).
Using three hinges with 1/2" (12 mm) glass: holds up to 130 lbs (59 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass — corrosion-resistant, long-lasting shower hinge
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Standard cut-out required (except V1E092 which requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions

Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department for finish and customization options.
