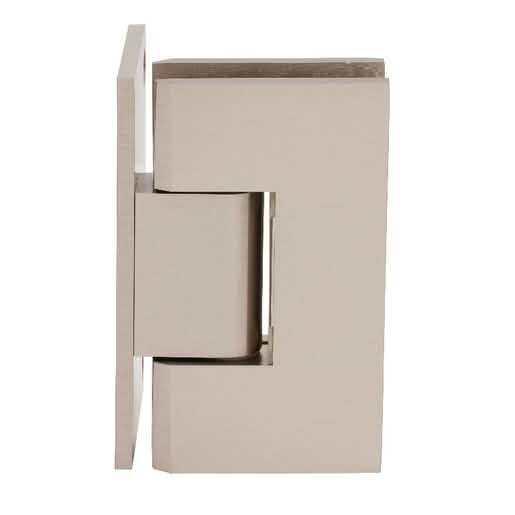

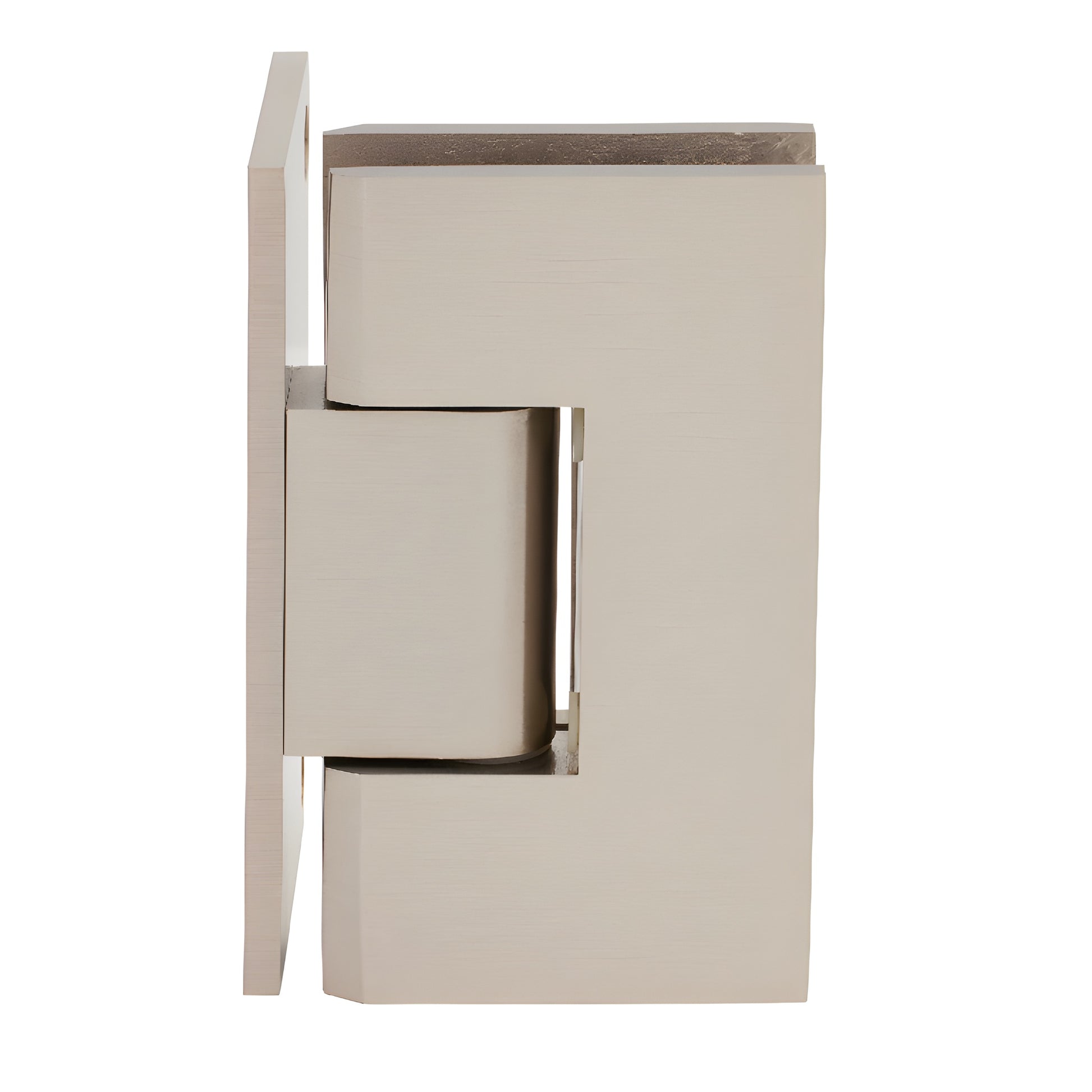

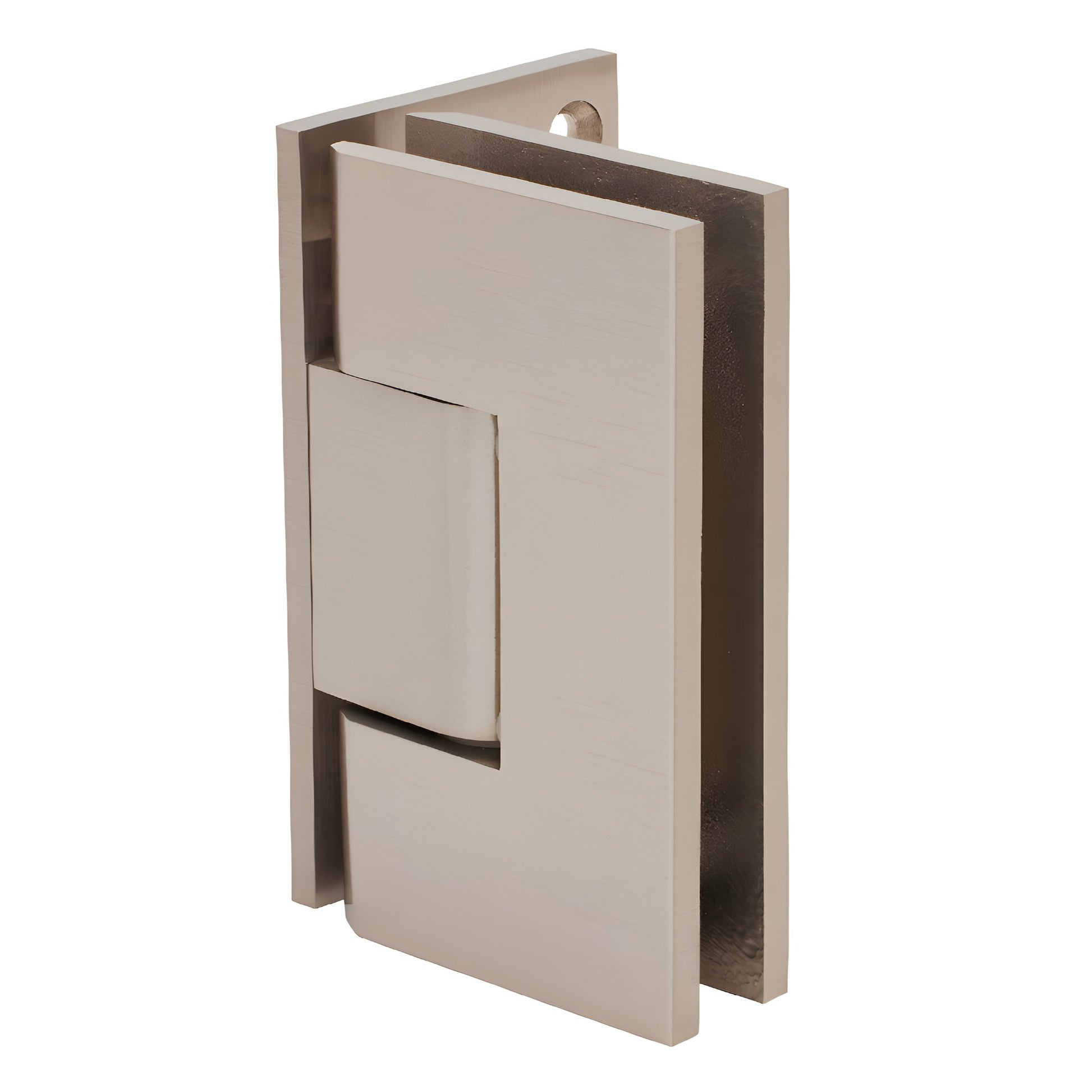

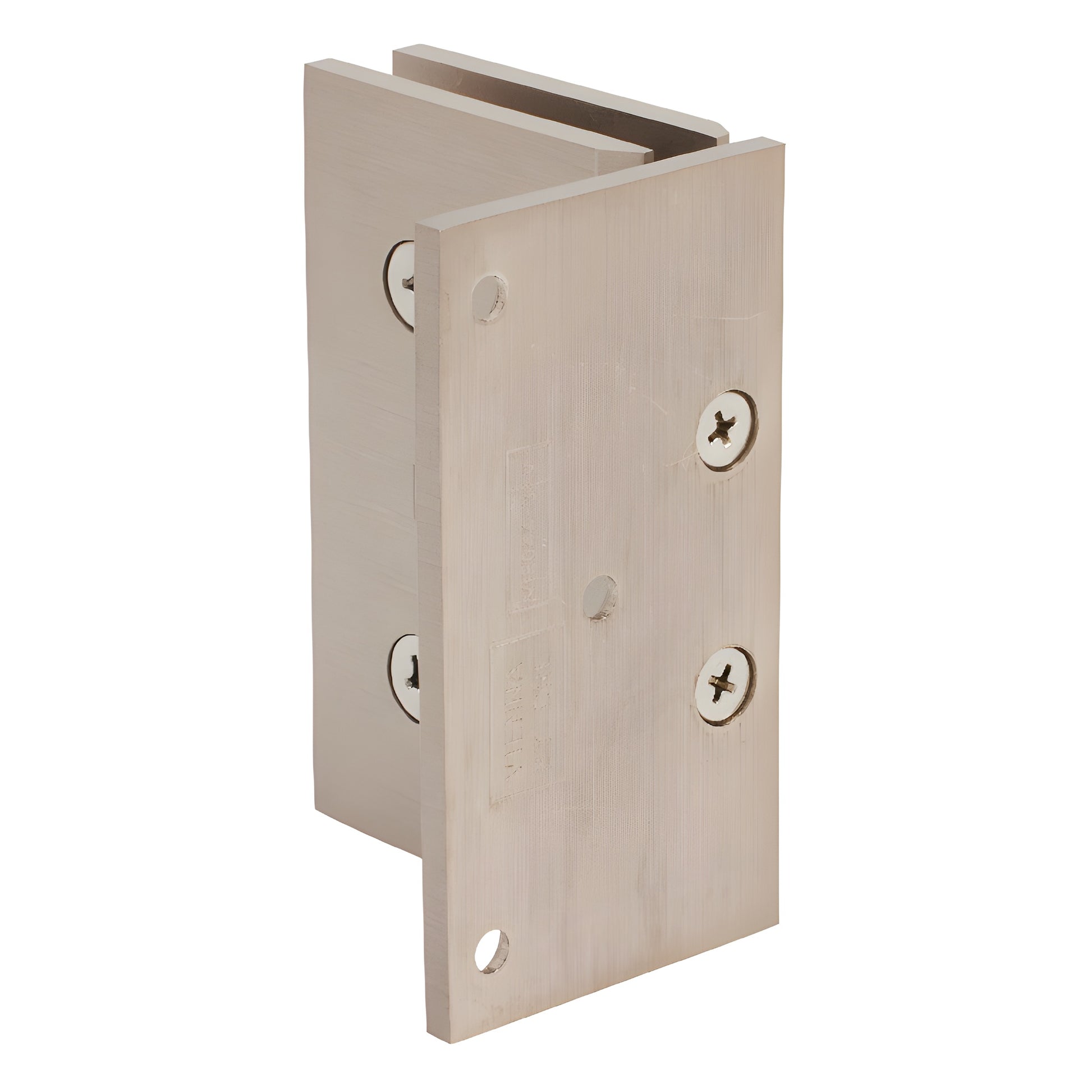

CRL Vienna 044 Brushed Nickel 5° Preset Wall-Mount Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes
• 3 year warranty
• 5° pre-set model (factory set for 5° tighter closure into shower interior)
• Use monolithic tempered glass

CRL Vienna Hinges are a heavy-duty shower door hinge solution for wider, heavier frameless glass doors that standard hinges can't support. Two internal steel pins provide template flexibility: leave both pins in place for compatibility with CRL "mouse-ears" door cut-outs, or remove them for increased adjustability and compatibility with CRL rectangular (square-corner) cut-outs and, in some cases, competitive rectangular cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge includes a reversible pivot pin—one side marked 90° and the opposite side marked 85°. Standard models ship with the 90° side active. Pre-set models are factory-set to 85° for a 5° tighter closure into the shower interior. The pivot pin can be rotated (not flipped) to change the active angle.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify required angle up to 45°) when the standard 5° preset does not achieve the desired door closing position.

Load & Door Width Capacity:

• Two hinges with 3/8" (10 mm) glass: holds up to 100 lb (45 kg); maximum door width 34" (864 mm).
• Two hinges with 1/2" (12 mm) glass: holds up to 100 lb (45 kg); maximum door width 32" (813 mm).
• Three hinges with 3/8" (10 mm) glass: holds up to 130 lb (59 kg); maximum door width 34" (864 mm).
• Three hinges with 1/2" (12 mm) glass: holds up to 130 lb (59 kg); maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass—durable, corrosion-resistant material ideal for shower door hardware
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Cut-out required for installation (except V1E092 which requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions

Custom finishes are available on request. Contact CR
