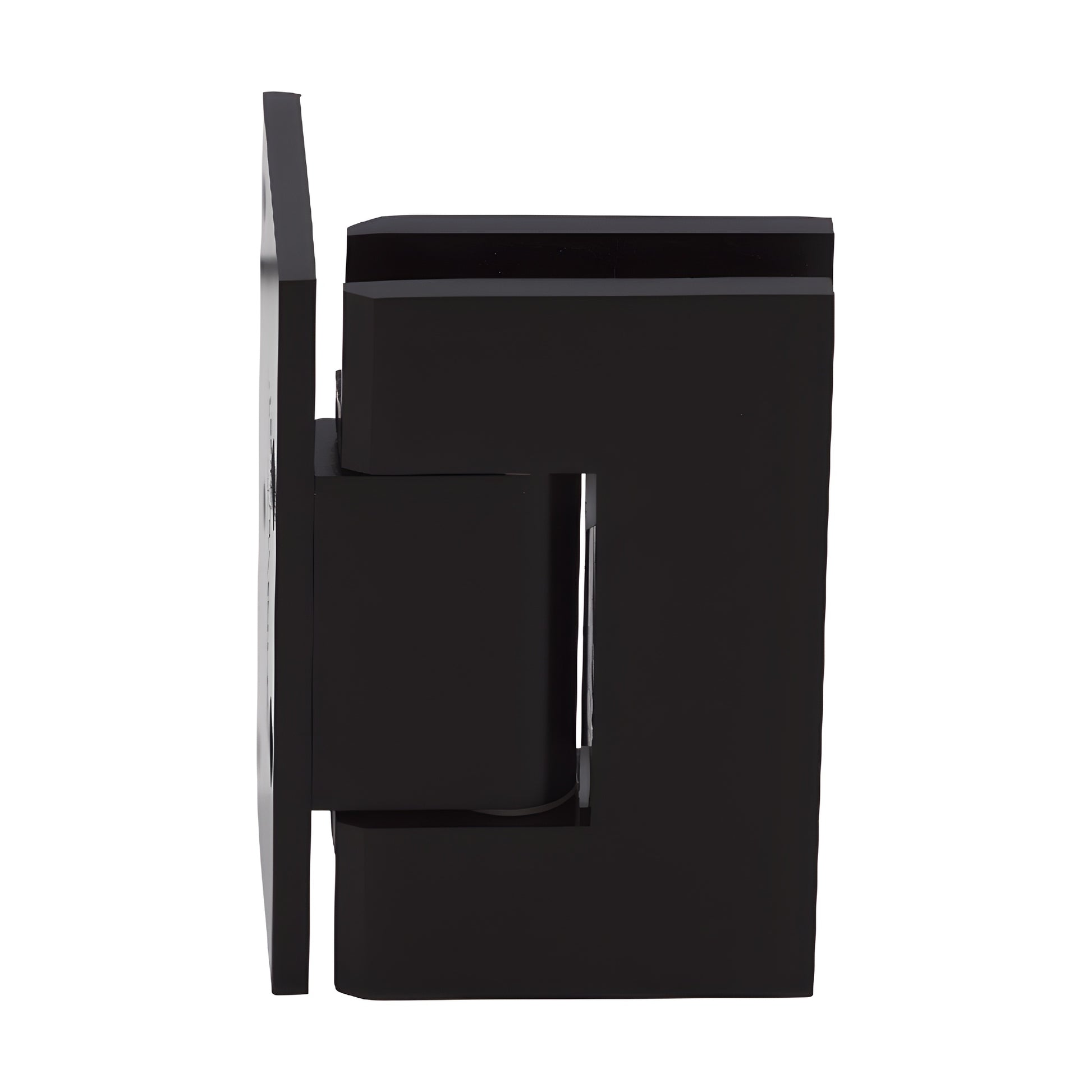

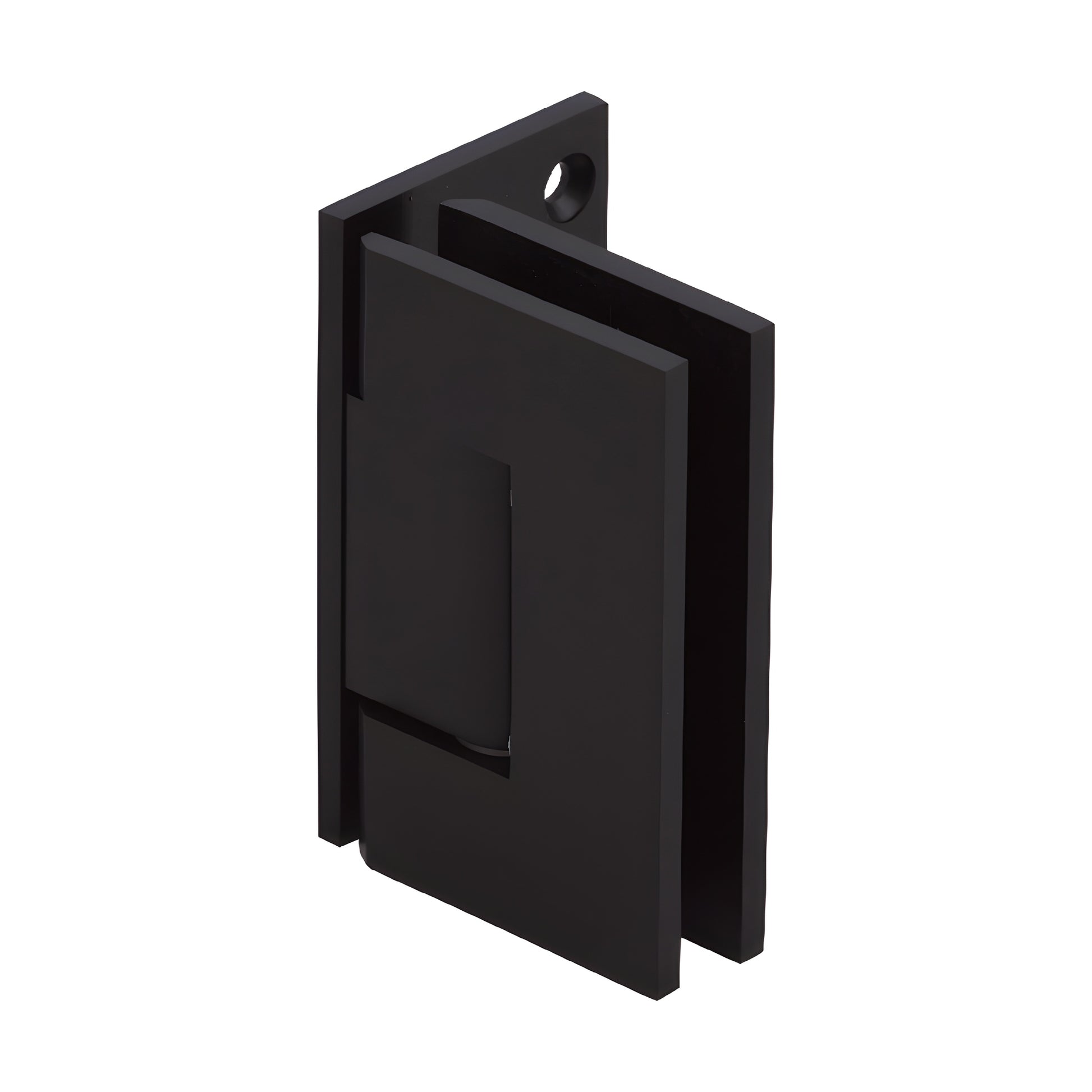

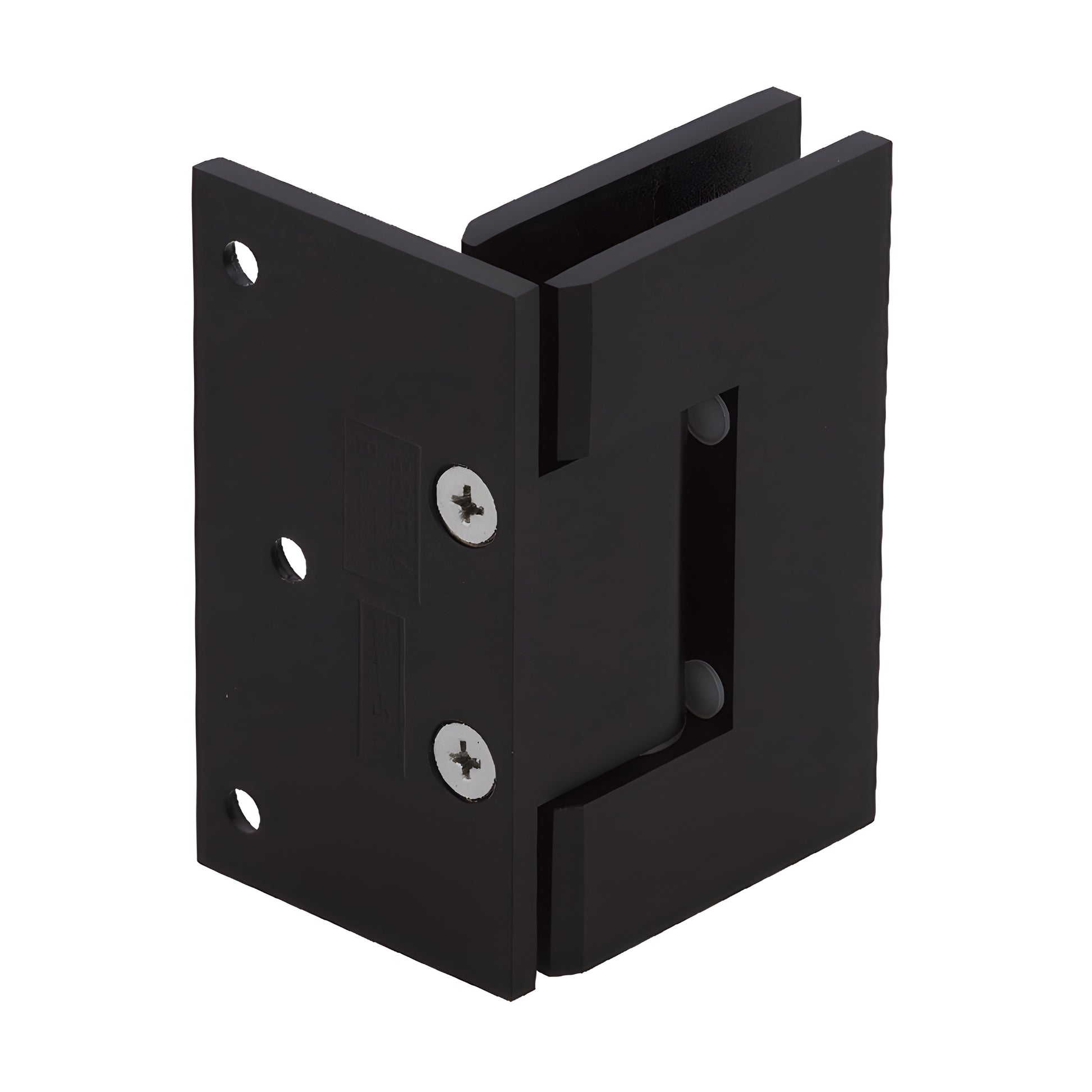

CRL Vienna 044 5° Preset Oil Rubbed Bronze Offset Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
• Available in several beautiful finishes
• 3 Year Warranty
• 5 Degree Pre-Set Model (factory set for 5° tighter closure into shower interior)
• Use monolithic tempered glass

CRL Vienna Hinges (SKU: V1E5440RB) are heavy-duty frameless shower door hinges engineered for wider, heavier doors that standard hinges can't support. Internal dual steel pins provide two template options: leave pins in for compatibility with CRL "mouse-ears" cut-outs for added safety, or remove pins for increased adjustability and compatibility with CRL rectangular (and some competitive) square-corner cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with 90° activated. Pre-Set models ship with the pin set to 85° (5° tighter closure into the shower interior). Rotate the pin (do not flip) to change settings.

CUSTOM PIVOT PIN: Custom pivot pins are available to accommodate off-angle installations (specify required angle up to 45°).

Performance (weight & max door width):
Using two hinges with 3/8" (10 mm) glass: holds up to 100 lbs (45 kg), max width 34" (864 mm).
Using two hinges with 1/2" (12 mm) glass: holds up to 100 lbs (45 kg), max width 32" (813 mm).
Using three hinges with 3/8" (10 mm) glass: holds up to 130 lbs (59 kg), max width 34" (864 mm).
Using three hinges with 1/2" (12 mm) glass: holds up to 130 lbs (59 kg), max width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid brass for long-lasting corrosion resistance
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Standard—except V1E092 which requires cut-out for door plus two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions

Custom finishes are available on request. Contact CRL Technical Sales —
