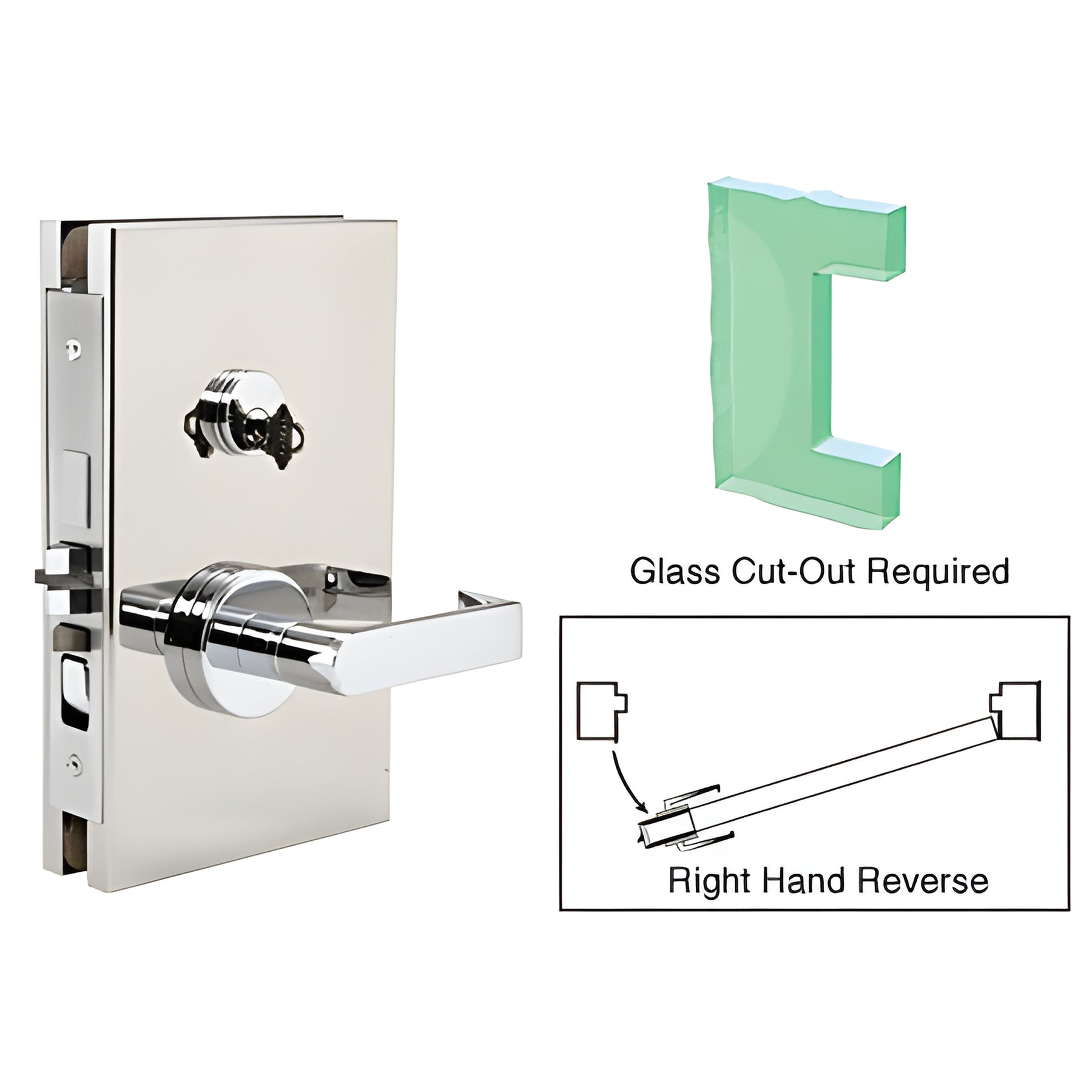

CRL Polished Stainless Steel 6x10 RHR Center Deadlatch Entrance Lock

• Five lock functions: Office, Entrance, Passage, Storeroom, and Classroom
• Fits 1/2" (12 mm) tempered glass doors; custom units for other glass thicknesses available on special order
• Ships in under a week (SKU: DL611REPS)
• Available in five finishes
• Hassle-free installation—no cement or silicone required
• Jamb-mount strike plates available on special order
• Designed for use with monolithic tempered glass

CRL 6" x 10" Center Locks with Deadlatch deliver versatile keyed entry and secure deadlatch performance for commercial 1/2" (12 mm) heavy glass doors. These center lock assemblies are left- and right-handed, require only a simple cut-out in the glass, and install cleanly without cement or silicone—ideal for glass storefronts, office entrances, and classroom doors. Available in five finishes to match storefront hardware and glass door trim.

Office Lock Function: Latchbolt operated by lever on either side (outside lever can be locked by rocker in faceplate) or by key outside. Auxiliary latchbolt deadlocks the main latch to resist jimmying. Inside lever always retracts latch for egress.

Entrance Lock: Latchbolt operated by lever on either side (except when deadbolt is projected). Deadbolt operated by key outside and thumbturn inside. Inside lever retracts both latch and deadbolt for exit.

Passage Lock: Latchbolt operated by lever on either side. Inside lever always retracts latch for free egress—no key required.

Storeroom Lock: Latchbolt operated by inside lever and by key outside; outside lever is fixed. Auxiliary latchbolt deadlocks main latch to prevent jimmying. Commonly used with electric strikes for secure storage or backroom doors.

Classroom Lock: Latchbolt operated by lever either side except when outside lever is locked by key. Key operates latch and unlocks outside lever; inside lever is always operable for safe egress.

Stainless Steel Advisory:

For the CRL 6" x 10" center lock for 1/2" tempered
