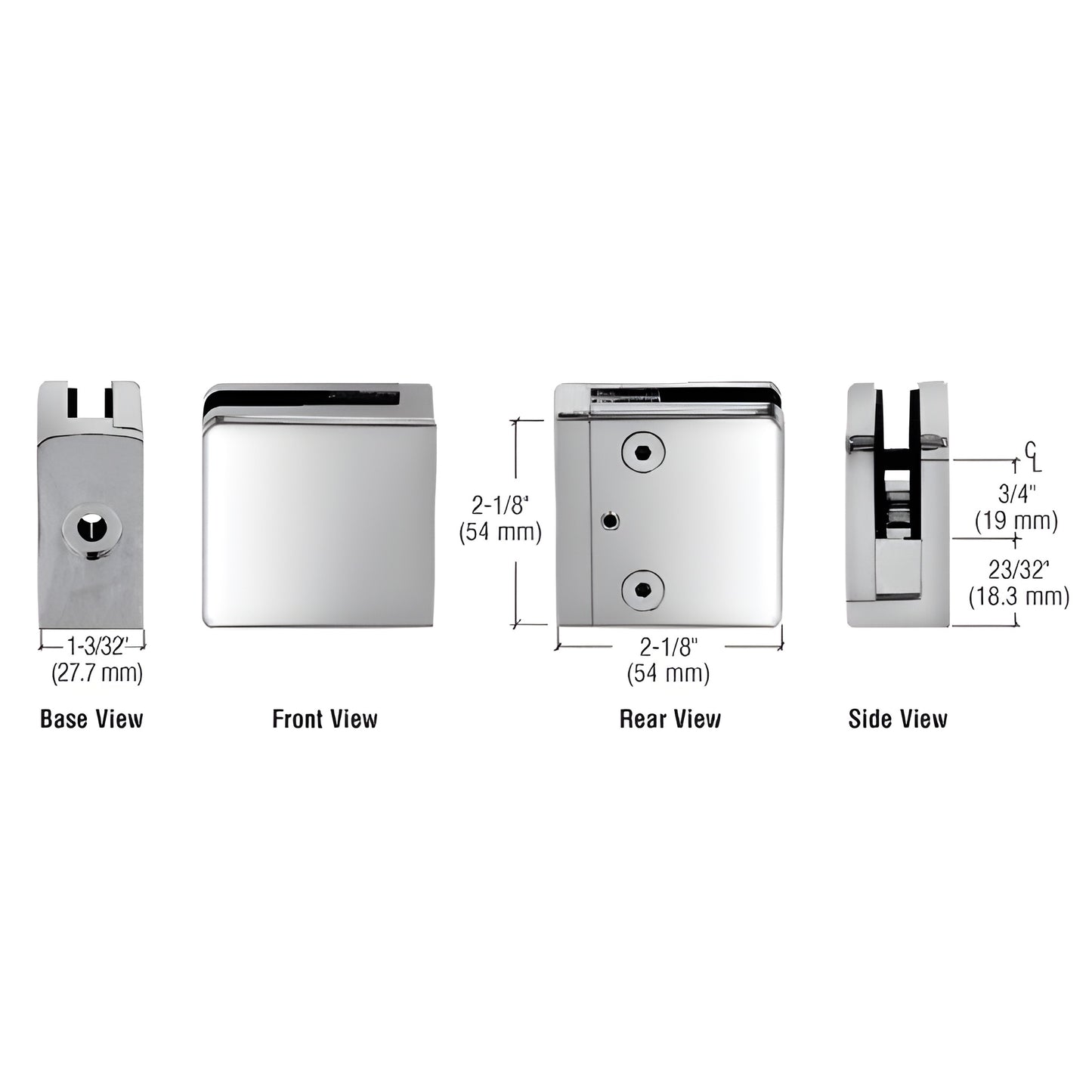

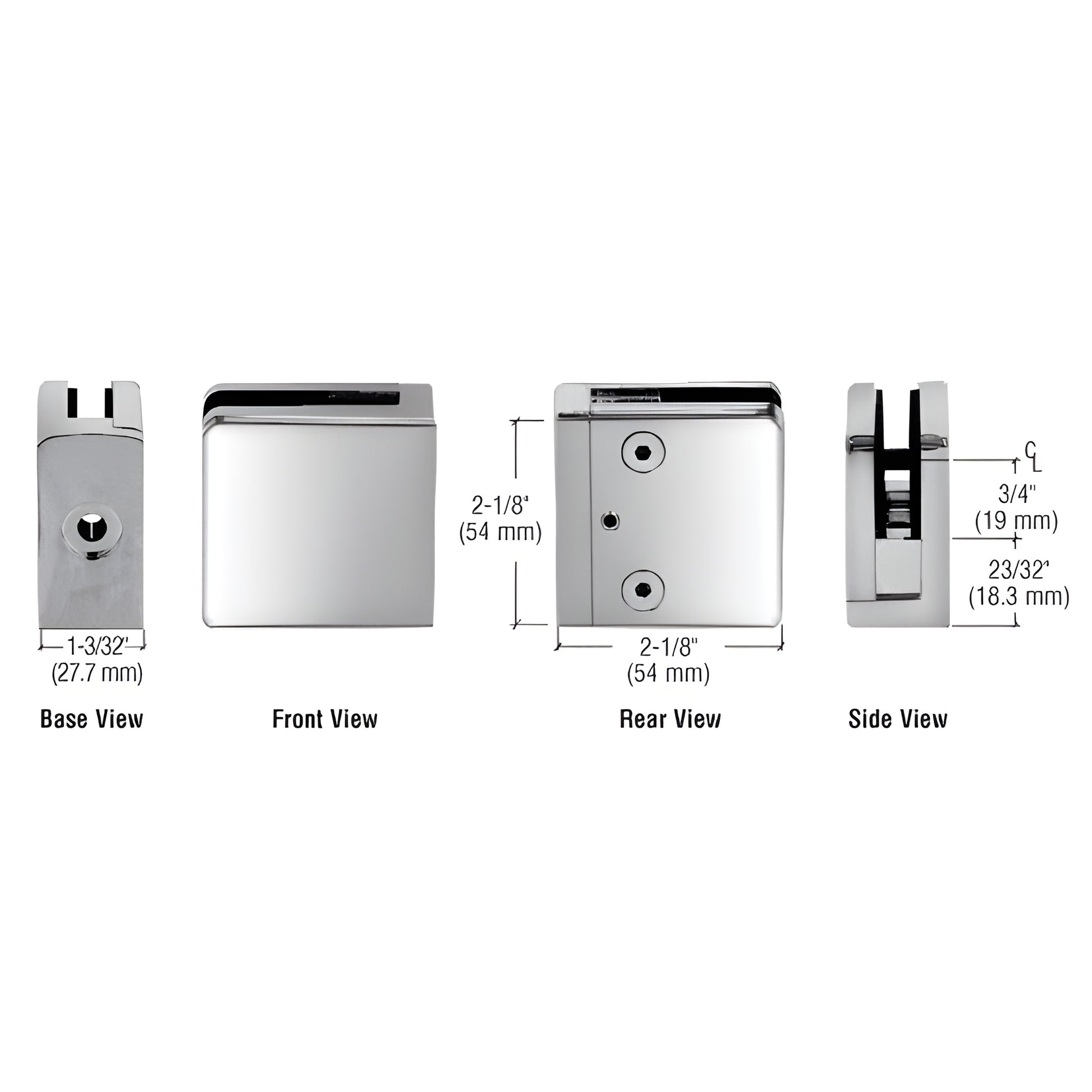

CRL Z-Series Polished Stainless Flat Base Square Glass Clamp for 3/8"

• Designed to accommodate glass thickness of 3/8" (10 mm)
• Replacement gaskets available: CRL Cat. No. Z38SG
• For use on mezzanines, partitions, railings and windbreaks
• Use with monolithic tempered glass
• Steel pin available for additional glass support
• Custom painted finishes available upon request

CRL Z-Series Square Type Flat Base Glass Clamp (SKU Z910PS) fits 3/8" (10 mm) glass and is available in zinc or stainless steel. This square flat-base glass clamp is ideal for partitions, railings, mezzanines and exterior windbreaks where a low-profile, durable glass clamp is required.

For securing the Z-clamp to thin-wall tubing (less than 1/8"), use CRL ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. Drill a 17/32" (13.5 mm) hole, then install the rivet-nut with the 34604 Heavy-Duty Thread Insert tool and 34618 5/16" mandrel and nosepiece.

NOTE: A 1/2" (12 mm) hole is required if using the included steel pin for additional glass support.

SPECIFICATIONS:

Glass Thickness: 3/8" (10 mm)

Base Design: Flat

For Use With: Square tubing or other flat surfaces

Material: Zinc or stainless steel. Stainless steel or powder-painted zinc recommended for exterior durability.

Glass Fabrication:

• For 1/4" (6 mm), 5/16" (8 mm) and 3/8" (10 mm) glass: 1/2" (12 mm) diameter hole required when using the steel pin
• For 1/2" (12 mm) glass: 9/16" (14 mm) diameter hole required when using the steel pin

Includes: Rubber gaskets and steel pin (with grommet). Replacement hardware: CRL ZCS5X15SS screws. Replacement gaskets: CRL Z38SG.

Product Warning: For interior and exterior applications CRL recommends pinning each glass panel when the panel is not supported from the bottom edge to prevent slippage. Rubber gaskets and steel pins are provided.
