CRL Satin Anodized Patch Door Kit for Transom & Sidelite - No Lock

• For 3/8" or 1/2" (10 or 12 mm) tempered glass
• Five architectural finishes

CRL PHA4 North American Door Kits (SKU: PHA4A) include all hardware required to complete a free-swinging tempered glass pivot door with fixed transom and sidelite, except glass and any additional structural supports for the fixed transom and sidelite. Pivot setback: 2-3/4" (70 mm). Compatible with a floor closer using a tapered spindle (closer ordered separately). This commercial glass door hardware kit is ideal for office, storefront, and architectural interior applications seeking durable, low-profile hardware.

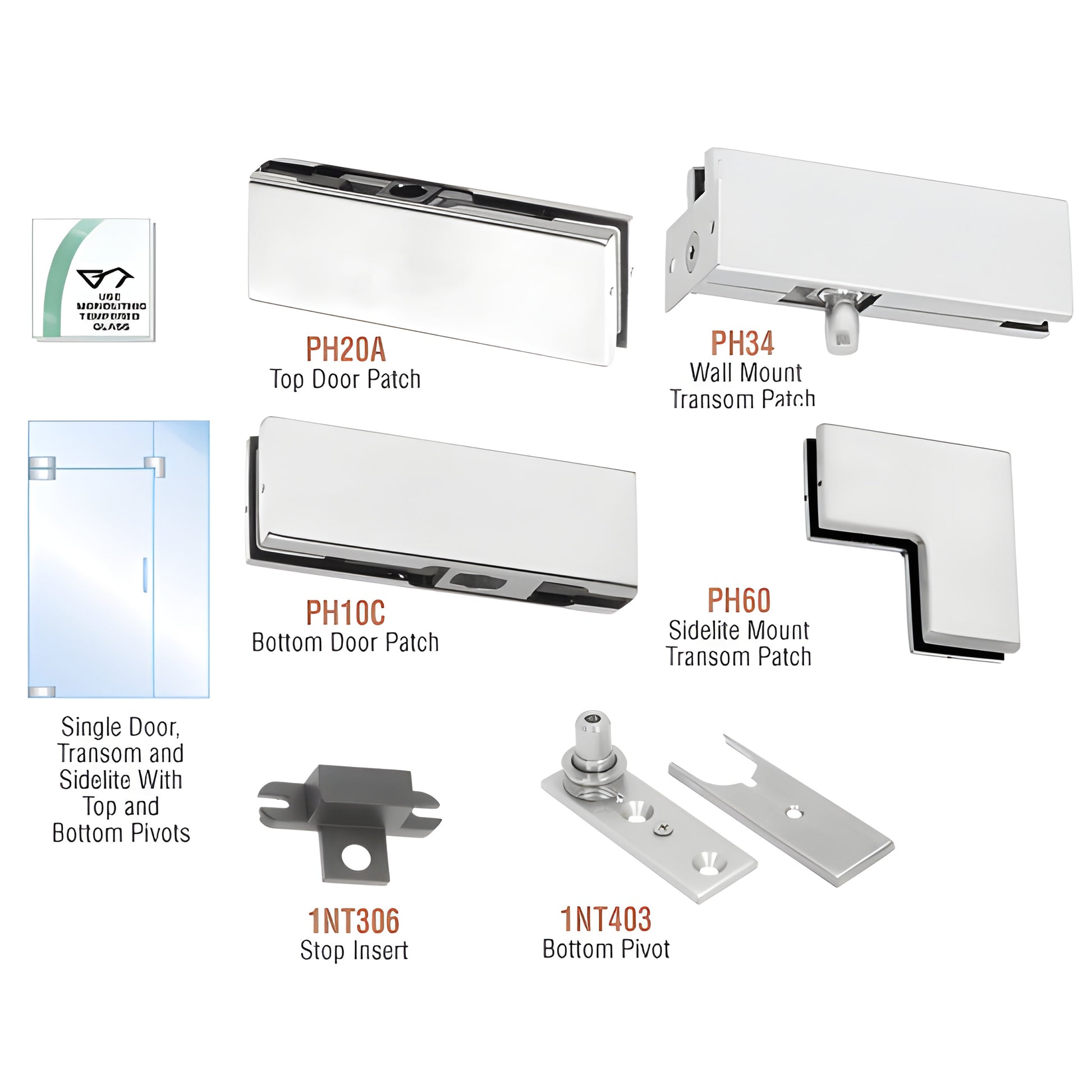

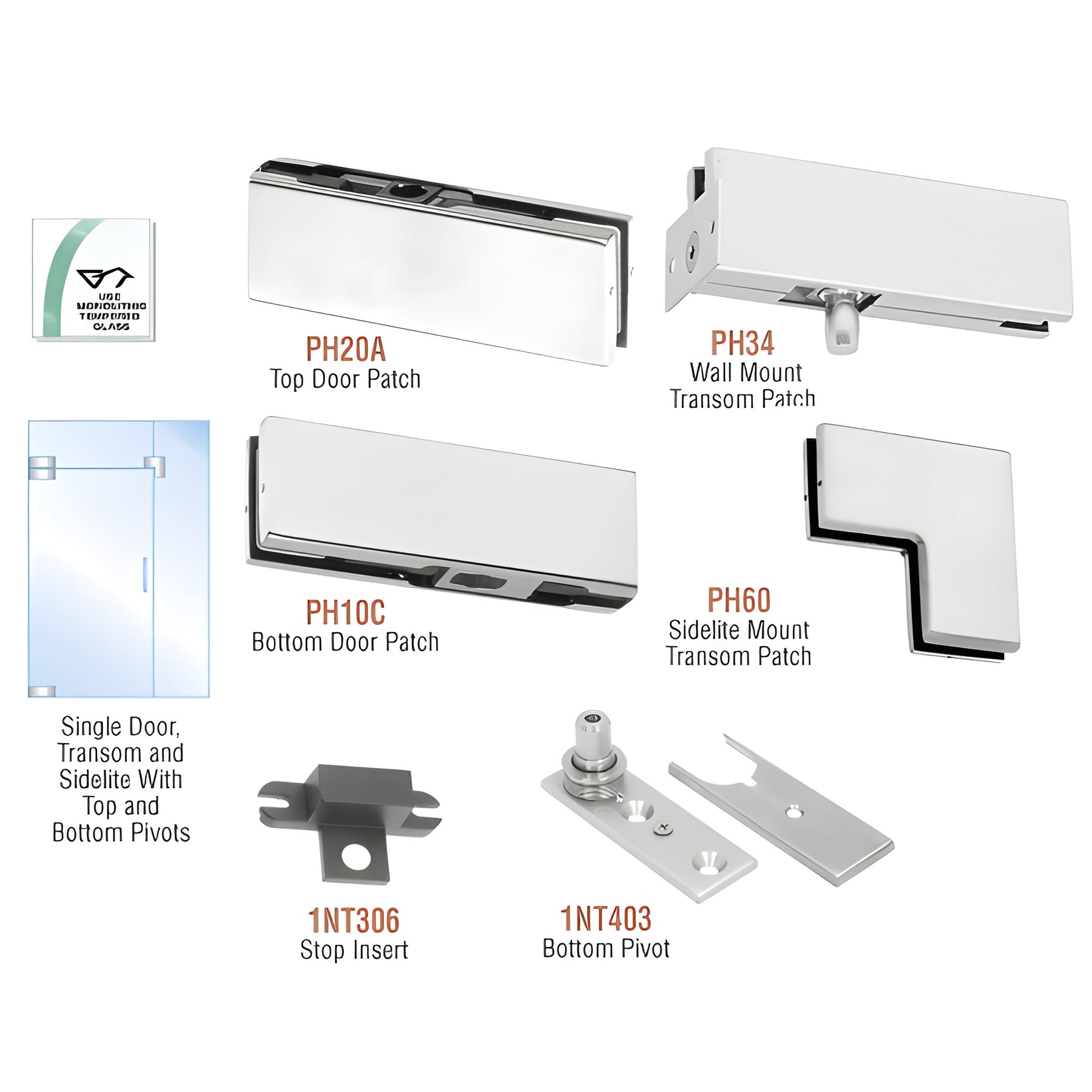

Kit Contains:

• 1 - PH34 Wall Mount Transom Patch
• 1 - PH60 Sidelite Mount Transom Patch
• 1 - PH20A Top Door Patch
• 1 - PH10C Bottom Door Patch
• 1 - 1NT306 Stop Insert
• 1 - 1NT403 Bottom Pivot
• Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass requires holes and notches)

Kits with lock include one Cat. No. AMR205 patch lock; cylinders, thumbturns, and keepers are ordered separately. This PHA4A pivot door kit supports ADA-compliant installations when combined with appropriate closers and thresholds—verify final configuration for compliance.

NOTE: For maximum door sizes and safe installation practices, CRL follows GANA Guidelines for glass and glazing hardware.

Shop the PHA4A commercial tempered glass pivot door kit now to complete your architectural glass door project.
