CRL Black Bronze Glass Patch Door Kit for Transom & Sidelite No Lock

CRL Black Bronze Glass Patch Door Kit for Transom & Sidelite No Lock

$445.46 CAD
$445.46 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHA4DU
Shipping Weight: 6.05 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Single With Transom-Sidelite
Door Type
A Style Glass Door
Finish/Color
Black Bronze Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-3/4

Overview

  • Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Available in five architectural finishes

CRL PHA4 North American Door Kits (SKU: PHA4DU) include the hardware to build a free-swinging glass door with fixed transom and sidelite—excluding glass and any additional structural supports for the fixed transom and sidelite. Pivot setback: 2-3/4" (70 mm). Compatible with a floor closer that uses a tapered spindle (floor closer sold separately).

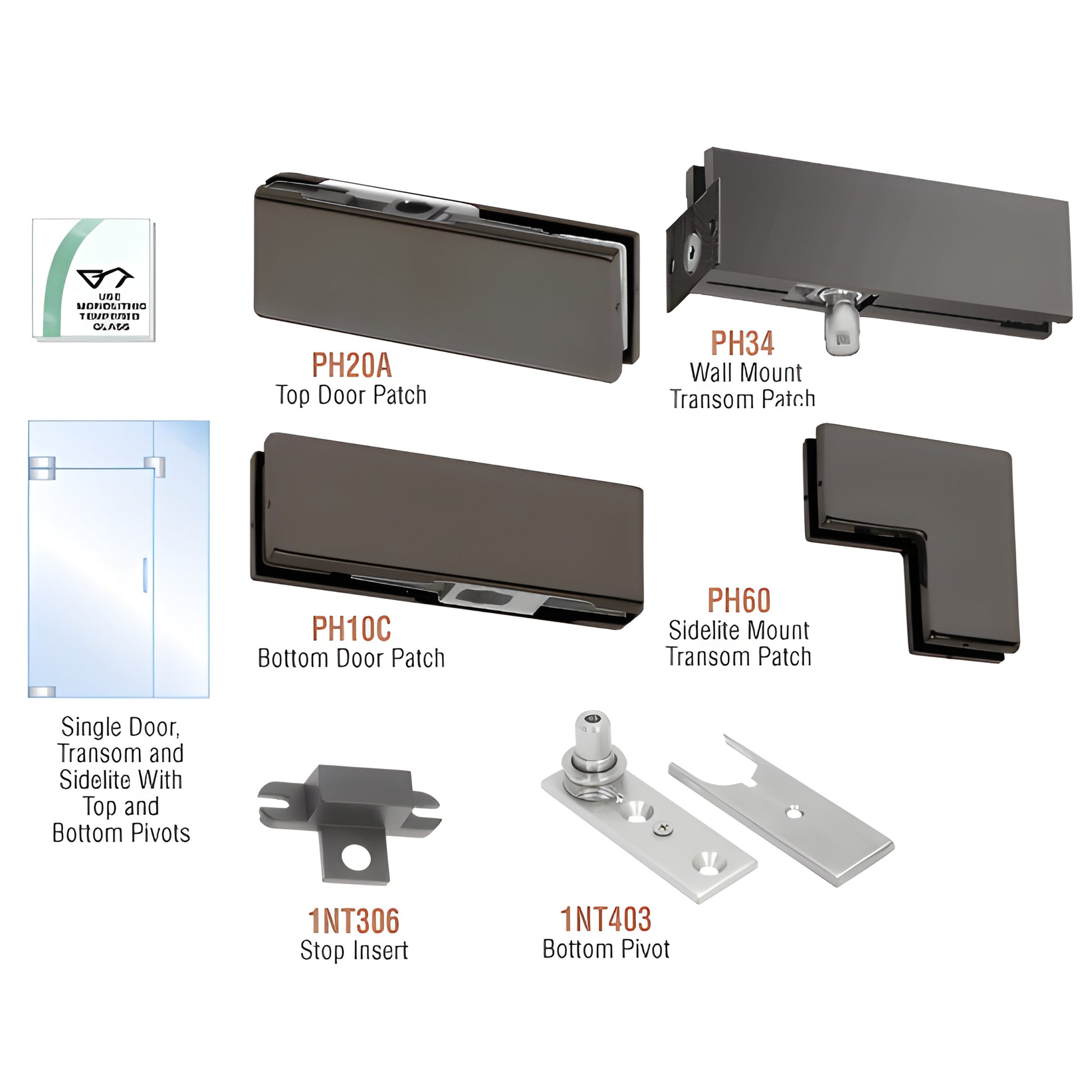

Kit Contains:
  • 1 - PH34 Wall Mount Transom Patch
  • 1 - PH60 Sidelite Mount Transom Patch
  • 1 - PH20A Top Door Patch
  • 1 - PH10C Bottom Door Patch
  • 1 - 1NT306 Stop Insert
  • 1 - 1NT403 Bottom Pivot
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass must have required holes and notches)

Kits with a lock option also include one Cat. No. AMR205 patch lock. Cylinders, thumbturns, and keepers are ordered separately.

NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are representative; colors may vary by monitor.

Order the PHA4DU commercial glass door hardware kit for a durable, architect-grade pivot patch solution—contact CRL to purchase or request a quote.
