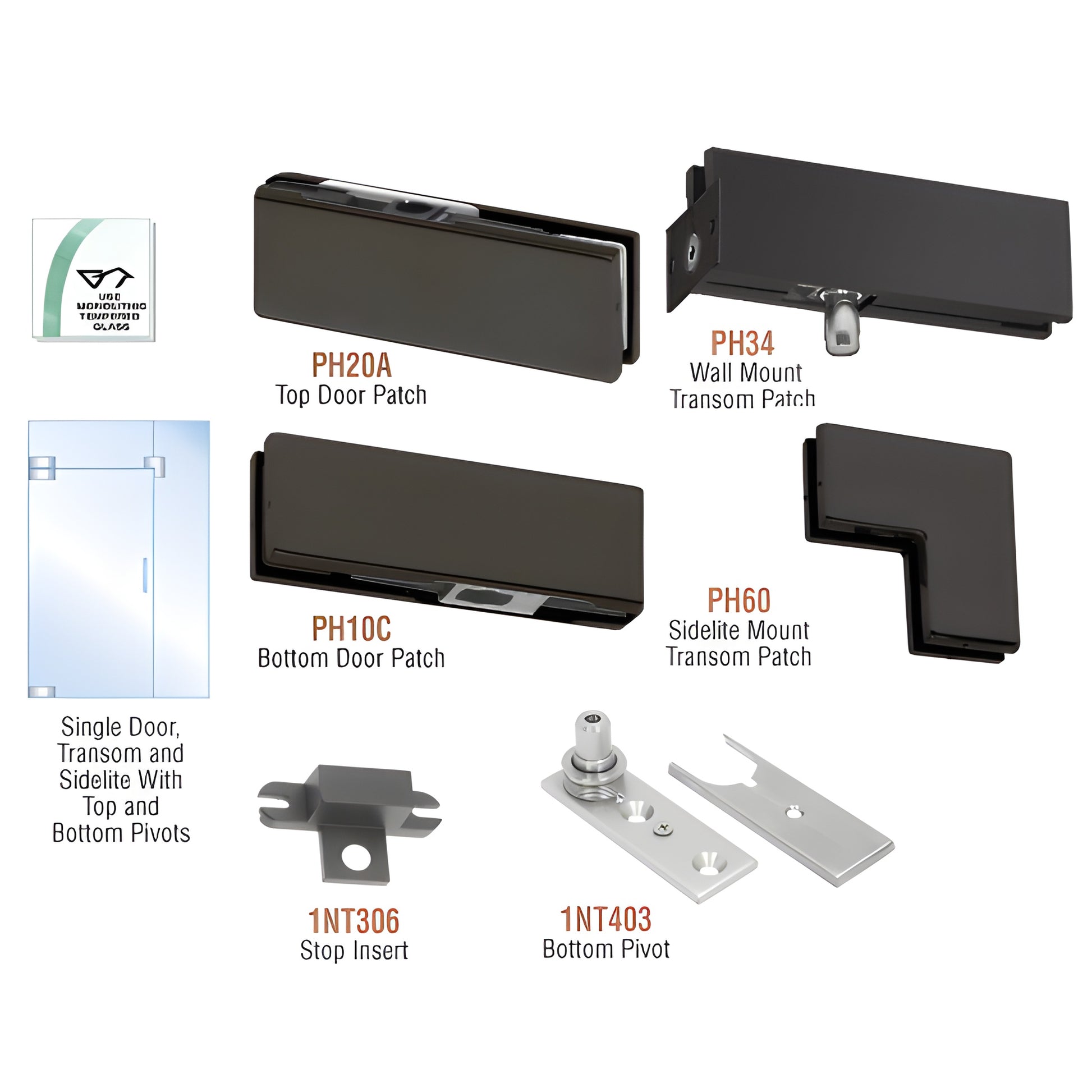

• PHA4MBL matte-black pivot door kit: top/bottom/transom/sidelite patches, bottom pivot and stop for 3/8-1/2" tempered glass.
1 1

CRL

CRL Matte Black NA Patch Door Kit for Fixed Transom + Sidelite, No Lock

CRL Matte Black NA Patch Door Kit for Fixed Transom + Sidelite, No Lock

$255.56 CAD
$255.56 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHA4MBL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Single With Transom-Sidelite
Door Type
A Style Glass Door
Finish/Color
Matte Black
Glazing Thickness
3/8 in. or 1/2 in. (10 mm or 12 mm)
Pivot Setback
2-3/4 in. (69.85 mm)

Overview

  • For 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Five architectural finishes available

CRL PHA4 North American Door Kits (SKU: PHA4MBL) include all hardware needed for a free-swinging pivot door with fixed transom and sidelite (glass and additional supports for the fixed transom/sidelite are not included). Pivot setback: 2-3/4" (70 mm). Use with a floor closer with tapered spindle (ordered separately).



Kit contains:
  • 1 - PH34 Wall Mount Transom Patch
  • 1 - PH60 Sidelite Mount Transom Patch
  • 1 - PH20A Top Door Patch
  • 1 - PH10C Bottom Door Patch
  • 1 - 1NT306 Stop Insert
  • 1 - 1NT403 Bottom Pivot
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass must have required holes and notches)

Kits with lock include one AMR205 patch lock. Cylinders, thumbturns, and keepers are sold separately.

NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Shipping weights are approximate. If you require an exact weight to determine shipping costs, contact CRL Customer Service before placing your order. Product images are representative; colors may vary by monitor and video card settings.

Durable pivot hardware designed for commercial storefronts and interior glass doors—available in five architectural finishes to match your design. Order the PHA4MBL kit now to complete your tempered glass pivot door installation.
