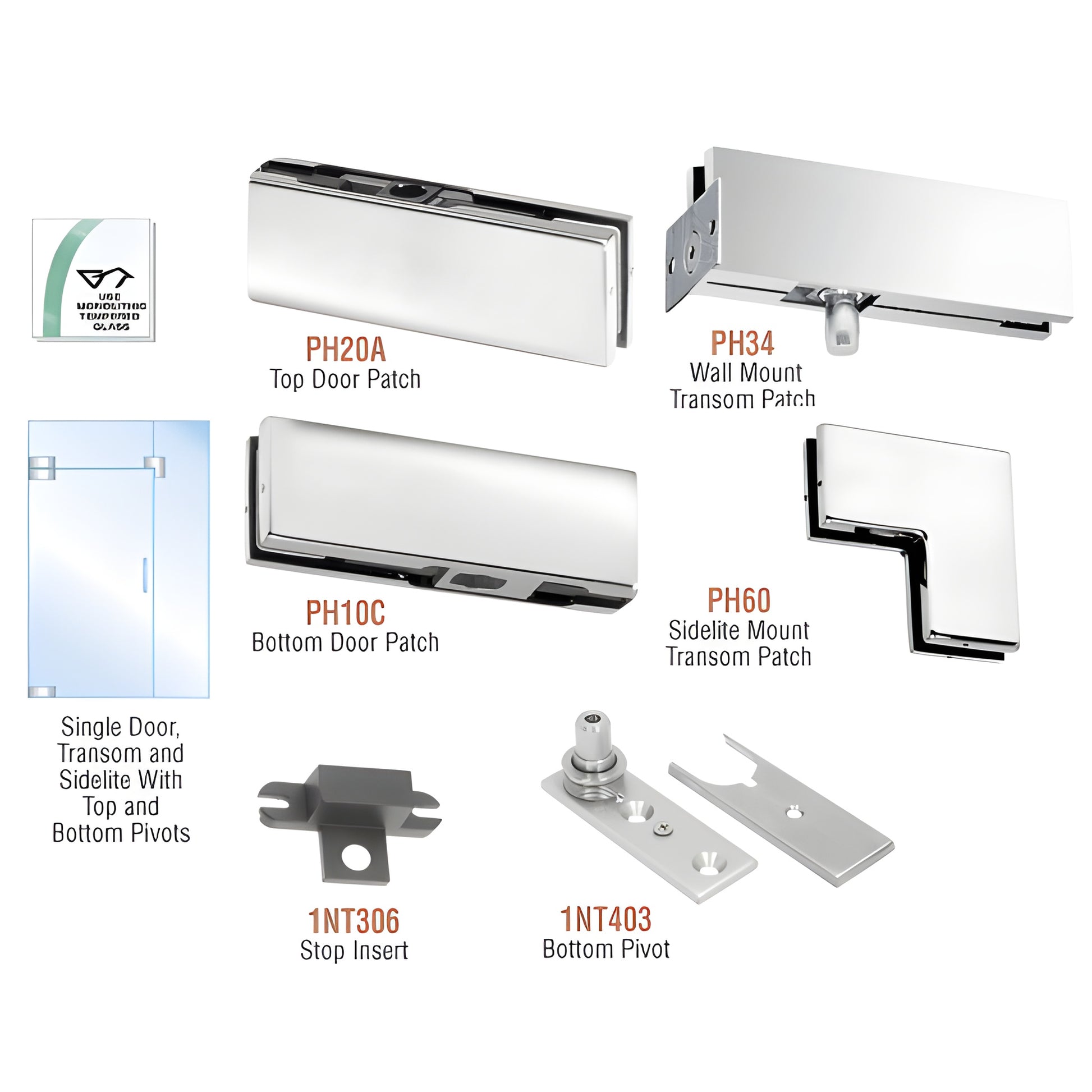

• PHA4PS polished stainless steel pivot door hardware kit for 3/8-1/2" tempered glass with transom and sidelite patches
1 1

CRL

CRL Polished SS Patch Kit for Fixed Transom & Sidelite No Lock

CRL Polished SS Patch Kit for Fixed Transom & Sidelite No Lock

$435.46 CAD
$435.46 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHA4PS
Shipping Weight: 7.25 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Single With Transom-Sidelite
Door Type
A Style Glass Door
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-3/4

Overview

  • For 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Five architectural finishes
CRL PHA4 North American Door Kits (SKU: PHA4PS) include the hardware needed to complete a free‑swinging pivot door with fixed transom and sidelite (glass and any additional supports for the fixed transom/sidelite not included). Pivot setback: 2-3/4" (70 mm). Compatible with a separate floor closer with tapered spindle (ordered separately). Ideal for commercial and architectural pivot door installations using tempered glass.

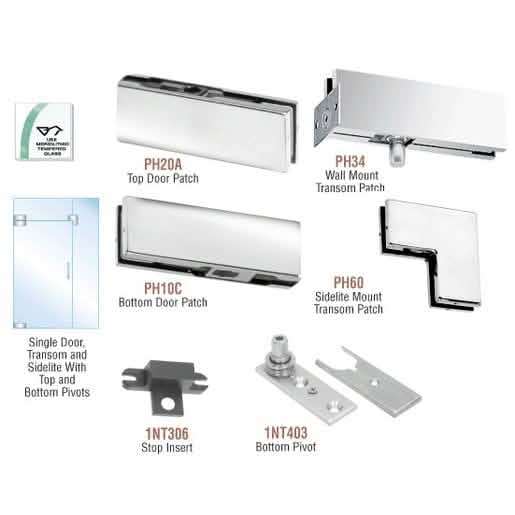

Kit contains:
  • 1 - PH34 Wall Mount Transom Patch
  • 1 - PH60 Sidelite Mount Transom Patch
  • 1 - PH20A Top Door Patch
  • 1 - PH10C Bottom Door Patch
  • 1 - 1NT306 Stop Insert
  • 1 - 1NT403 Bottom Pivot
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)
Kits with lock include one Cat. No. AMR205 patch lock; cylinders, thumbturns, and keepers are ordered separately.

NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Most shipping weights are approximate and have not been verified. If exact weight or shipping cost is required to complete your order, contact CRL Customer Service before submitting your order. Product images are of the actual product or a close representation. Colors can vary depending on monitor settings.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not stain- or rust-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for more information.

Looking for a durable, architect-grade pivot door hardware kit for tempered glass? Order PHA4PS or contact customer service to confirm compatibility and lead time.
