CRL Satin Chrome 1-1/4" Dia x 2" Glass Standoff Base

• Available in several lengths
• Custom lengths and finishes available
• Six popular decorator finishes
• Use monolithic tempered glass

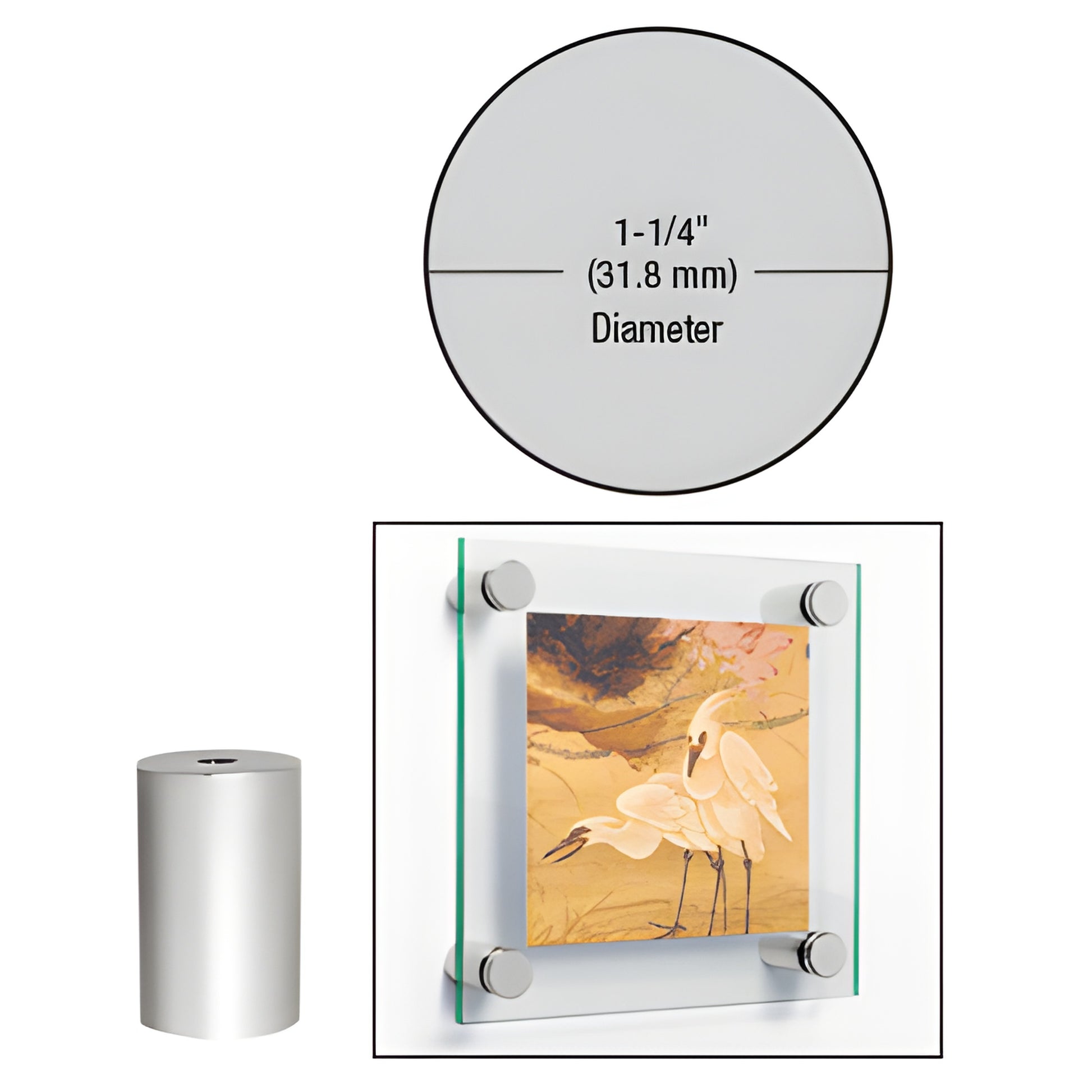

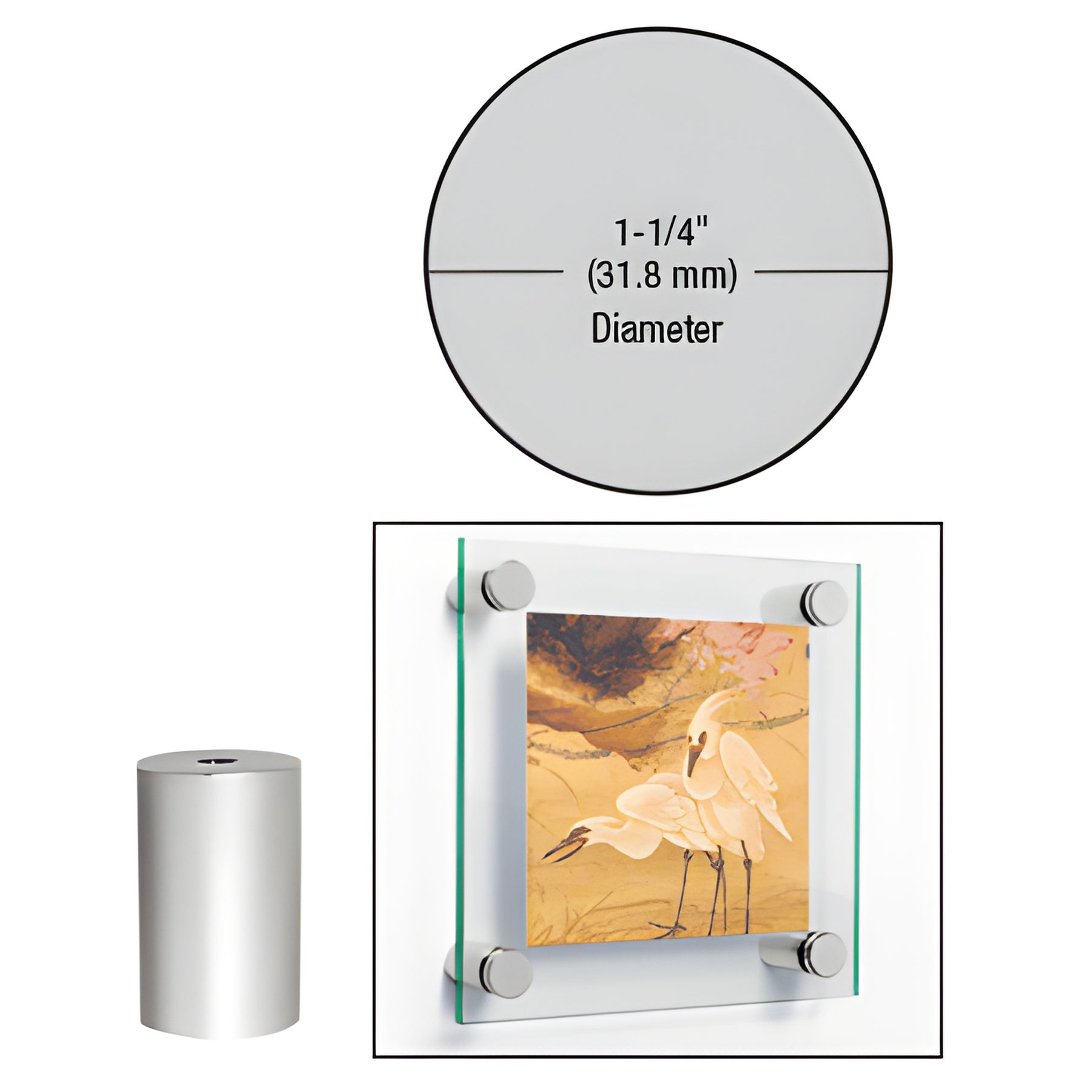

CRL's 1-1/4" Diameter Standoff System (SKU: S0B1142SC) lets you create varied looks for retail, commercial, and residential projects using 1-1/4" (32 mm) architectural standoffs for glass panels. The wide selection of bases and caps—round or square—provides flexibility in design. Simply drill 5/8" (16 mm) holes in glass, plastic, or wood panels and polish the edges for a contemporary finished appearance. Each stock base is drilled and tapped 5/16"-18 through the full length. Custom lengths and finishes are available by request from our Technical Sales Department.

Available in many distinctive finishes, CRL standoffs are high-tech in both design and appearance. The system can integrate with CRL Edge Grips and Swivel Fittings for maximum versatility. 1-1/4" (32 mm) standoff bases come in eight lengths from 1/4" to 6" (6 to 152.4 mm). Matching cap assemblies are ordered separately.

The CRL Standoff System includes a complete range of mounting accessories available in any quantity to avoid unused components. For installation techniques or design assistance using our standoffs (including tempered glass standoffs and architectural standoff mounting), contact our Technical Sales Department.

NOTE: Minimum material thickness for use with 1-1/4" (32 mm) diameter standoff bases is 1/4" (6 mm) with Standard and Low Profile caps, and 3/8" (10 mm) with Flush Mount caps.

Product Warning:
Due to diverse applications, weight limitations for standoff systems depend on wall or substrate anchoring and material strength. Verify anchoring and material specifications for glass panel installations.

For custom lengths, finishes, or a quote for your next glass or signage project using the 1-1/4"
