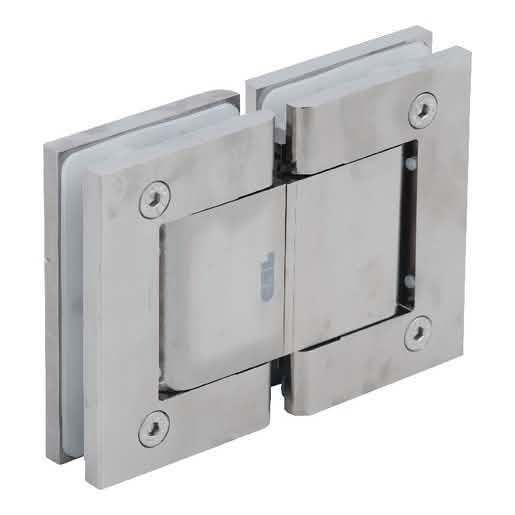

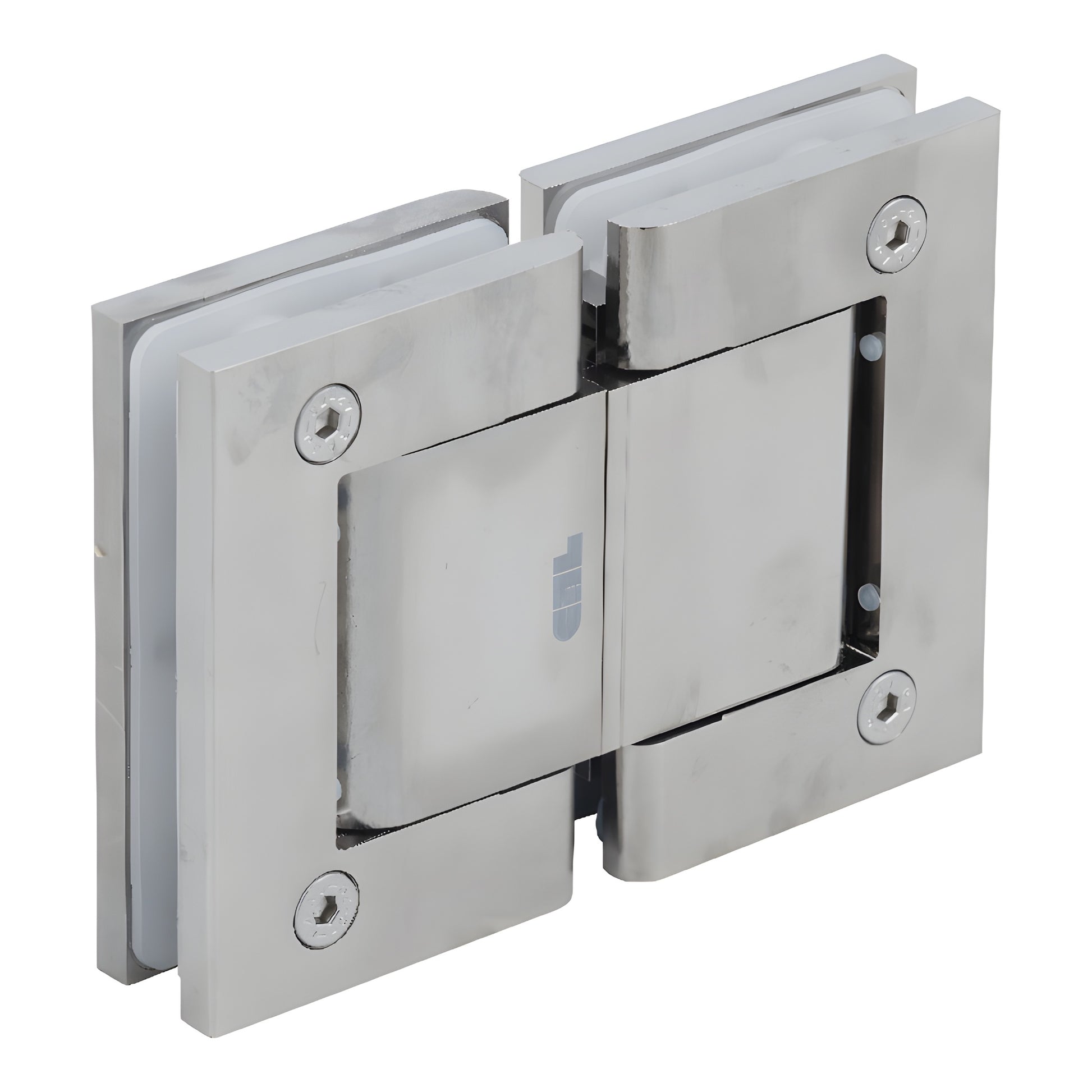

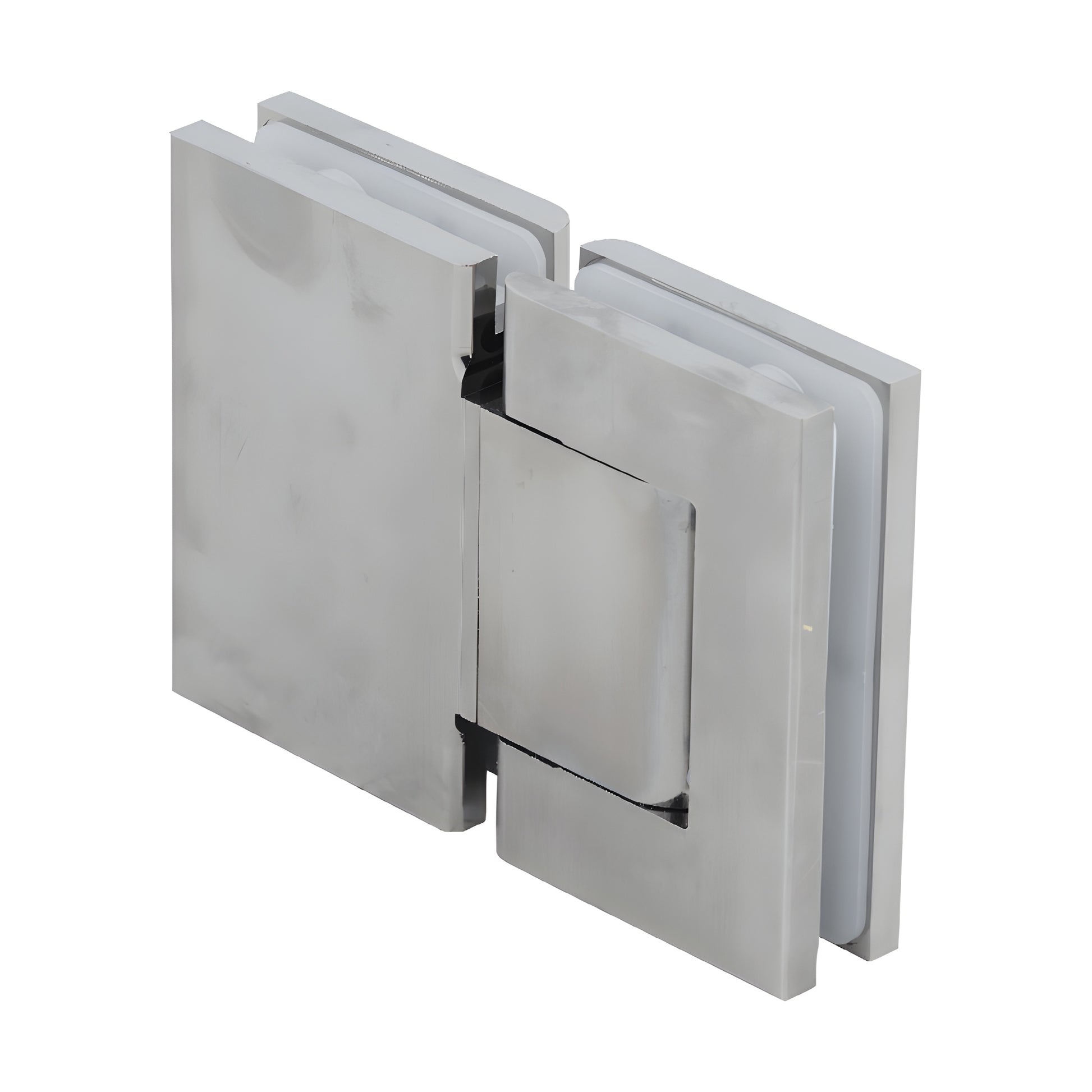

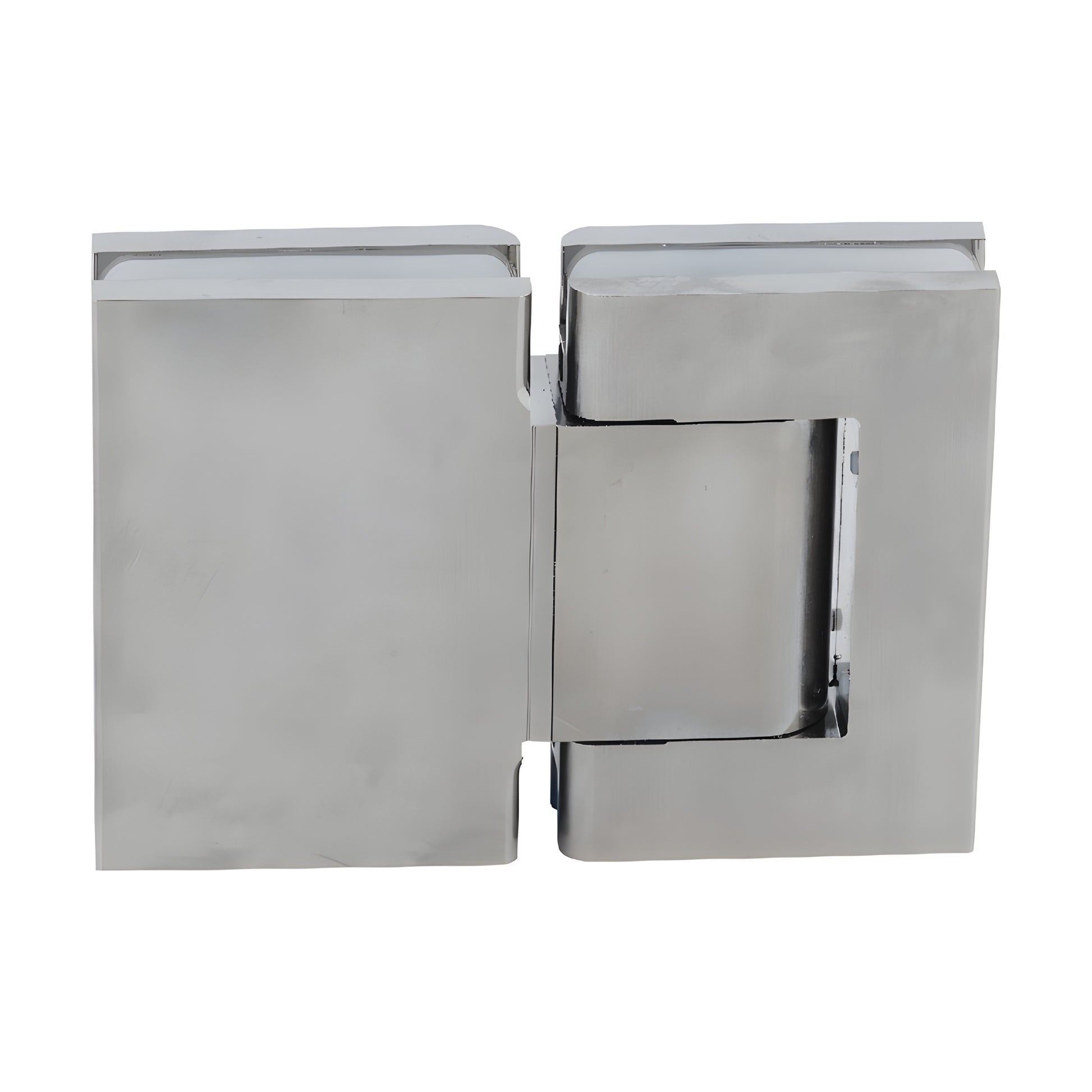

CRL Vernon 180° Satin Nickel Glass-to-Glass Shower Hinge

• For self-closing glass doors 5/16" to 9/16" (8 to 13.52 mm) thick
• Aluminum body — available in Brite Chrome, Satin Nickel, and Satin Anodized finishes
• Adjustable closing speed via control valve
• Alternative to floor closers and patch fittings — ideal for retrofit all‑glass doors

SKU: H8215BTSN

The CRL Oil Dynamic full back plate wall mount hinge swings 90º in and out with a hold at 0º and an adjustable closing speed. Intended for interior glass door applications; properly mounted, two hinges support a single door up to 39" (1 m) wide and 176 lbs. (80 kg). Oil Dynamic combines mechanical hinge reliability with hydraulic damping to deliver a self-closing glass door solution without floor-mounted or overhead closers—perfect for glass-to-wall installations and retrofit projects.

Key differentiators: ambidextrous design for left- or right-hand doors, aluminum construction for corrosion resistance, and proven durability (tested to over 1 million cycles). Includes snap-in molded gaskets for 5/16"–9/16" (8–13.52 mm) glass and requires glass cut-out fabrication.

SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90º inwards and outwards (except H8060 model, which swings one way)
Closing Type: Automatic closing from 0º to 80º (adjustable)
Cut-Out: Glass fabrication required
Includes: Snap-in molded gaskets for 5/16"–9/16" (8–13.52 mm) glass
Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 176 lbs. (80 kg)

Product Warning:
Do not use more than two hinges on one door. For uses other than intended, obtain approval from CRL Technical Sales. Use only the template included with this hinge—CRL cut-out dimensions may differ from other brands.
