CRL UV603 Medium Viscosity UV Curing Adhesive 1000g - Fast Cure
CRL UV603 Medium Viscosity UV Curing Adhesive 1000g - Fast Cure
Regular price
$681.79 CAD
Regular price
Sale price
$681.79 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# UV603T1K
Shipping Weight: 2.203 Pounds
Shipping Limitations: Hazardous Material - No Air Shipments
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.203 Pounds
Shipping Limitations: Hazardous Material - No Air Shipments
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Acceptable Bond line Gap
0.5 mil To 1 mil(0.013 mm To 0.025 mm)
Contents
1000 Grams
Glazing Thickness
1/4
Medium Viscosity
Yes
Shelf Life
12 Months
Shore D Hardness
25-35
Tensile Strength
2400 psi(16547.4 Kpa)
Wrist Circumference
1/4 in. (6 mm)
Overview
- Extremely flexible for bonding different materials and surface bonding
- Good capillary action for glass assemblies
- Acceptable bondline gap: 0.5 to 1 mil (.0127 to .0254 mm)
- Tensile/Shear strength: 1450 psi
- Shore D hardness: 25–35
- Optically clear, moisture- and yellowing-resistant

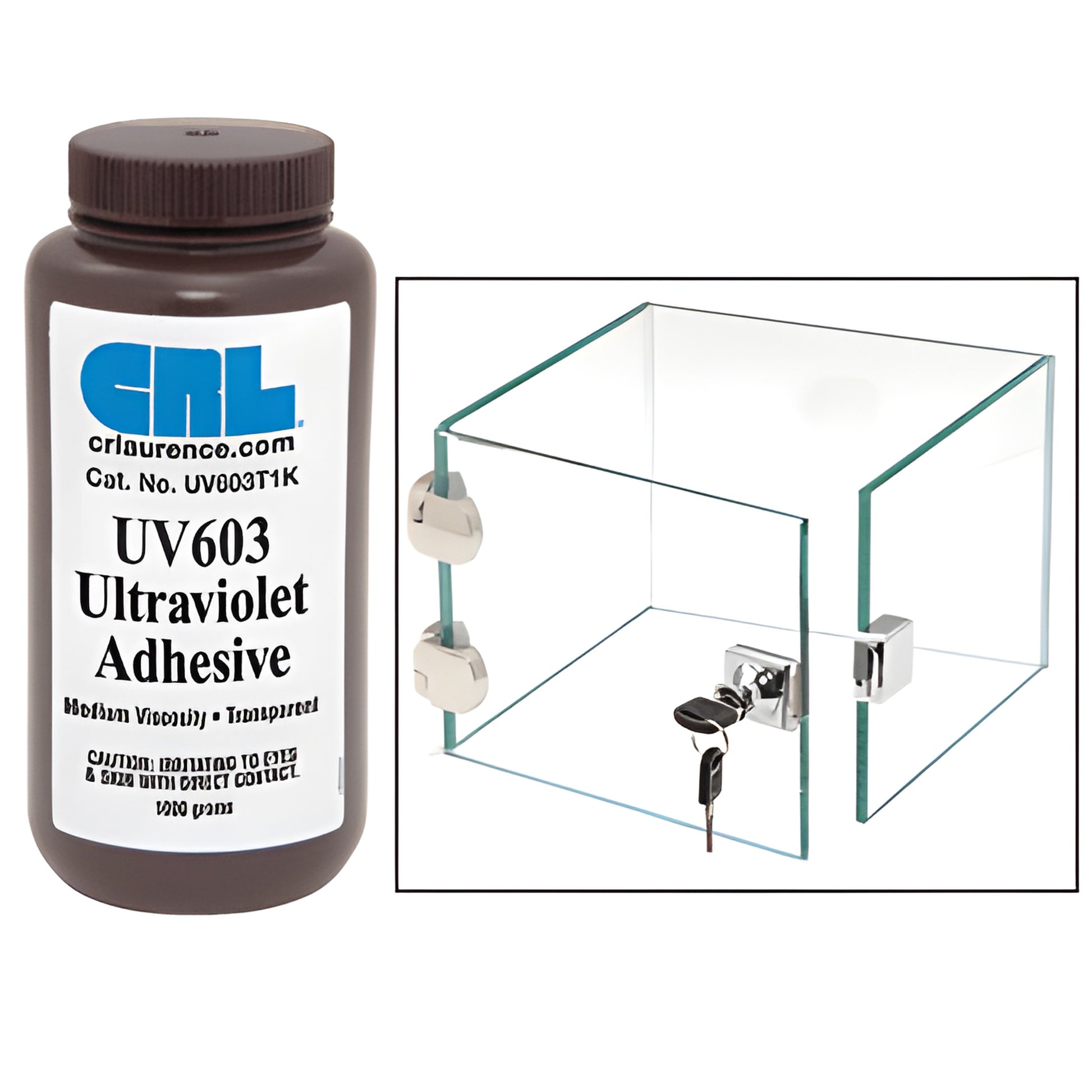

CRL UV603 is a medium-viscosity, 100% solids UV curing adhesive that forms resilient, high-strength bonds between glass, metal, ceramic and many plastics. Ideal as an optically clear UV adhesive for glass bonding and mixed-material assembly, CRL UV603 delivers outstanding elongation and flexibility for applications up to 1 m² (10.8 ft²).
CRL UV603 exhibits good capillary action with glass up to 1/4" (6 mm) thickness; for thicker glass apply adhesive to the bonding surface before assembly. Cures within seconds when exposed to ultraviolet light—the cure speed depends on UV intensity at the product surface and adhesive depth. Store away from sunlight.
For best adhesion, prepare glass with Cleaner and Degreaser to remove dirt and grease.
Note: When bonding plastics, always test first—some plastics cannot be bonded properly. Do not use on coated parts (powder-coated or galvanized).
Product Warning:
Shelf life: 12 months from lot number date on label.
SKU: UV603T1K — Order CRL UV603 optically clear UV adhesive for glass and mixed-material bonding today.
