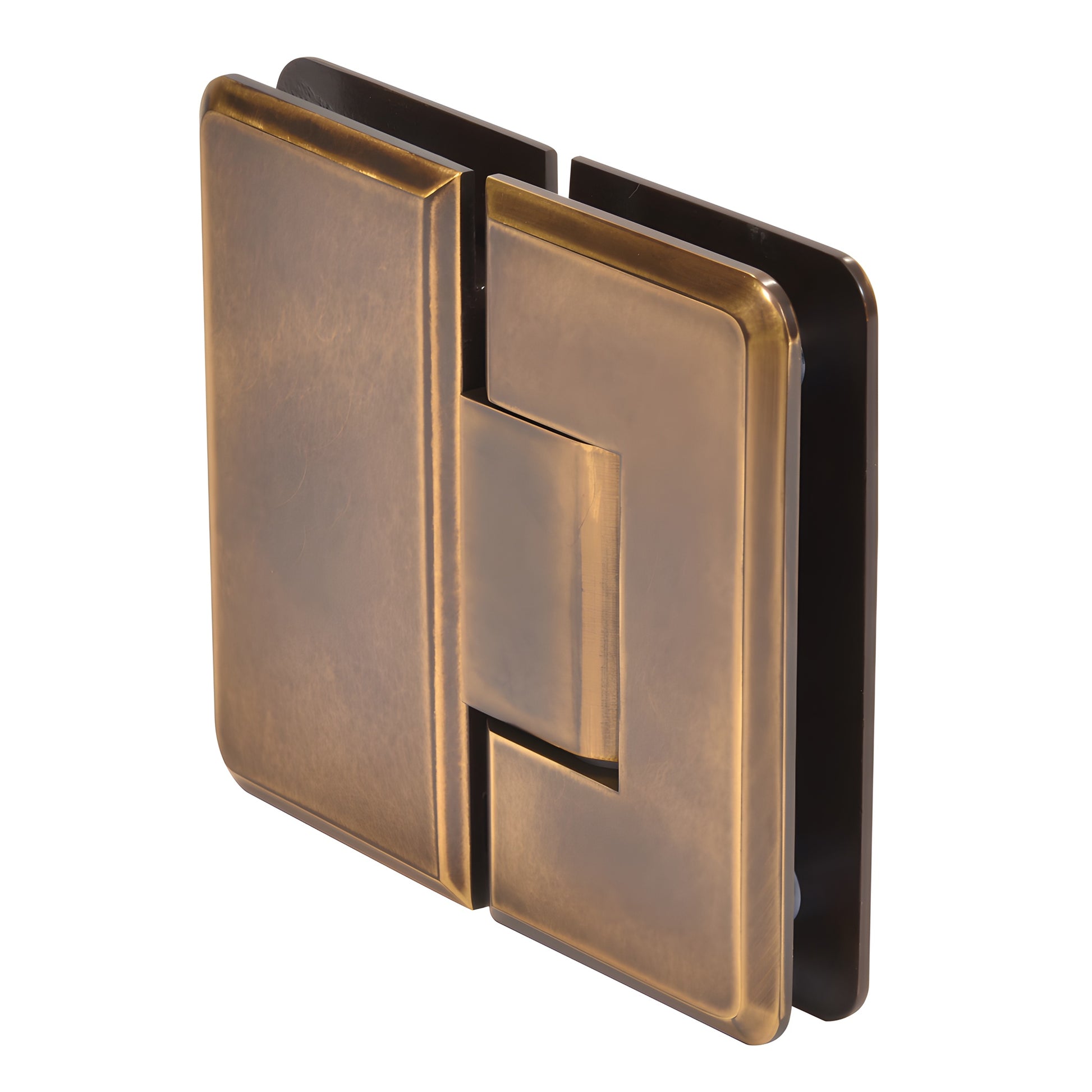

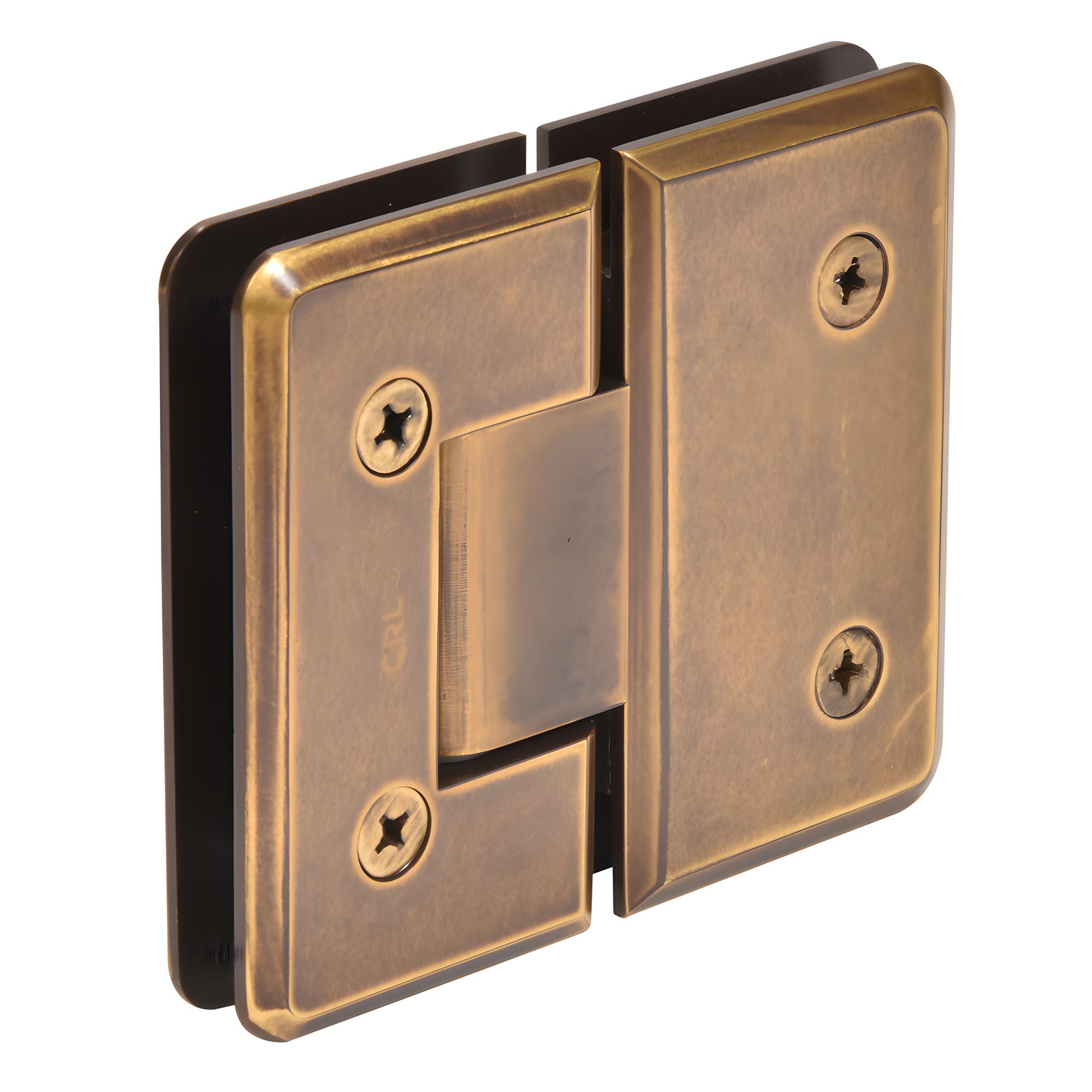

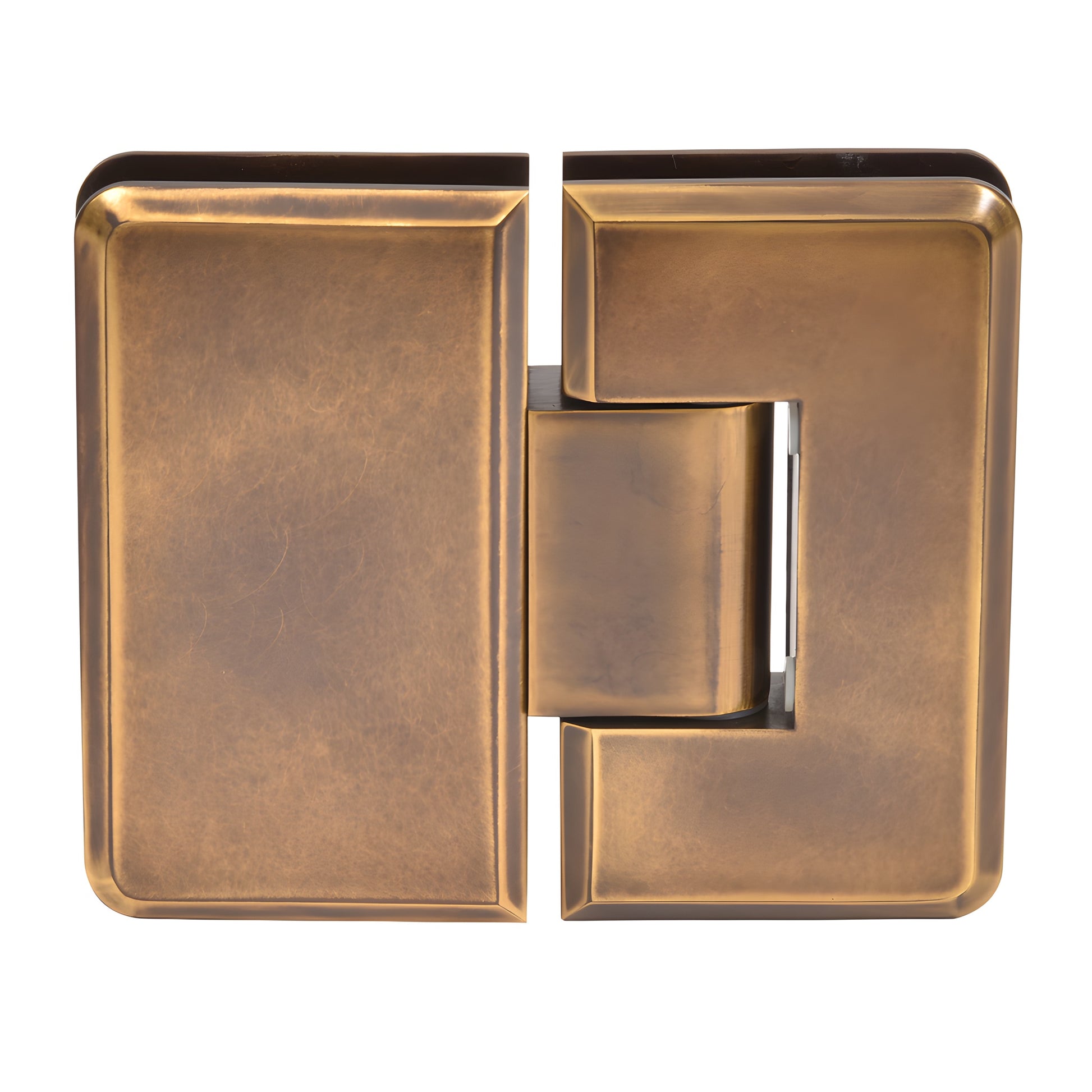

CRL Vintage Brass Cologne 180 Series 180º Glass-to-Glass Hinge
CRL Vintage Brass Cologne 180 Series 180º Glass-to-Glass Hinge
Regular price
$314.66 CAD
Regular price
Sale price
$314.66 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# C0L180VBR
Shipping Weight: 3.17 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 3.17 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Adjustable | No |
| Edge | Profile Beveled |
| Finish/Color | Vintage Brass |
| Glass To Glass Angle | 180 |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |

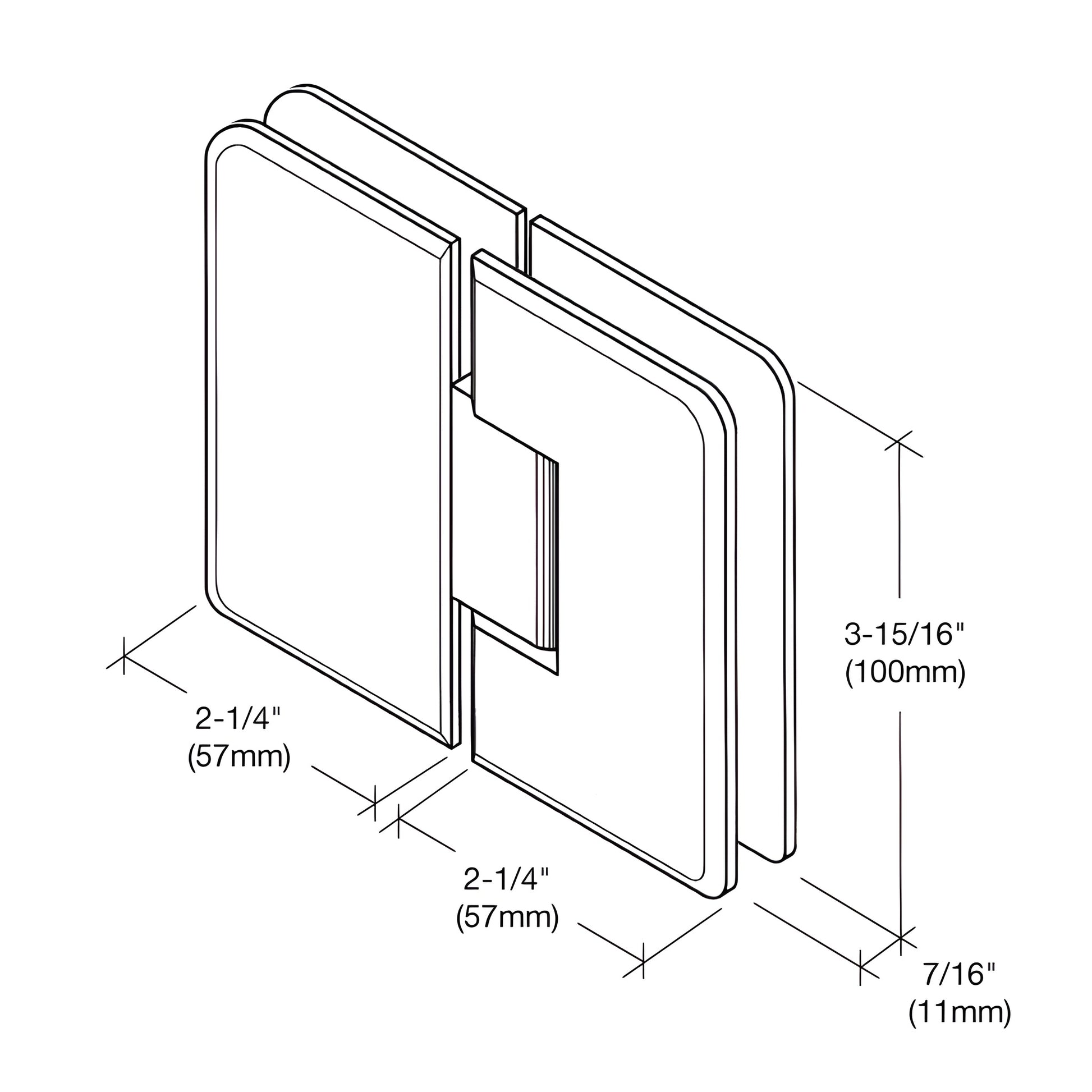

| Height 3-15/16 in. | (100 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque 60 lbf.in | (677.9 cN.m) |
| Maximum Door Weight - 2 Hinges 110 lbs. | (49.9 kg) |
| Maximum Door Weight - 3 Hinges 140 lbs. | (63.5 kg) |
| Maximum Door Width 36 in. | (914 mm) |
| Mounting | Type Glass To Glass |
| Positive | Close No |
| Self-Centering Yes | Cologne |
| Width - Door Portion 2-1/4 in. | (57 mm) |
| Width - Sidelite Portion 2-1/4 in. | (57 mm) |
Overview
CRL Cologne Hinges are expertly designed to accommodate 3/8" to 1/2" (10 to 12 mm) glass, offering a sleek appearance with radius corners and beveled edges, ideal for wider, heavier doors.
These hinges support 180º glass-to-glass connections and are available in several beautiful finishes to complement any decor.
With strategic steel pins for template options, Cologne Hinges can fit both "mouse-ears" and rectangular cut-outs, providing flexibility and strength.
Each hinge includes a reversible pivot pin for easy adjustability, and custom pivot pins are available for off-angle installations.
Built with solid brass construction, these self-centering hinges are perfect for residential or hotel shower use, supporting up to 110 lbs with two hinges or 140 lbs with three hinges.
These hinges support 180º glass-to-glass connections and are available in several beautiful finishes to complement any decor.
With strategic steel pins for template options, Cologne Hinges can fit both "mouse-ears" and rectangular cut-outs, providing flexibility and strength.
Each hinge includes a reversible pivot pin for easy adjustability, and custom pivot pins are available for off-angle installations.
Built with solid brass construction, these self-centering hinges are perfect for residential or hotel shower use, supporting up to 110 lbs with two hinges or 140 lbs with three hinges.
