CRL Z-Series Large White Square Glass Clamp for 3/8" Glass

• May be used on wood or metal radius
• For 3/8" (10 mm) glass
• Excellent choice for partitions, mezzanines, wind breaks, railings and other commercial applications
• Use monolithic tempered glass
• Includes steel pin for optional use through hole in glass to prevent slippage
• Appropriate rubber gaskets included
• Custom painted finishes available upon request

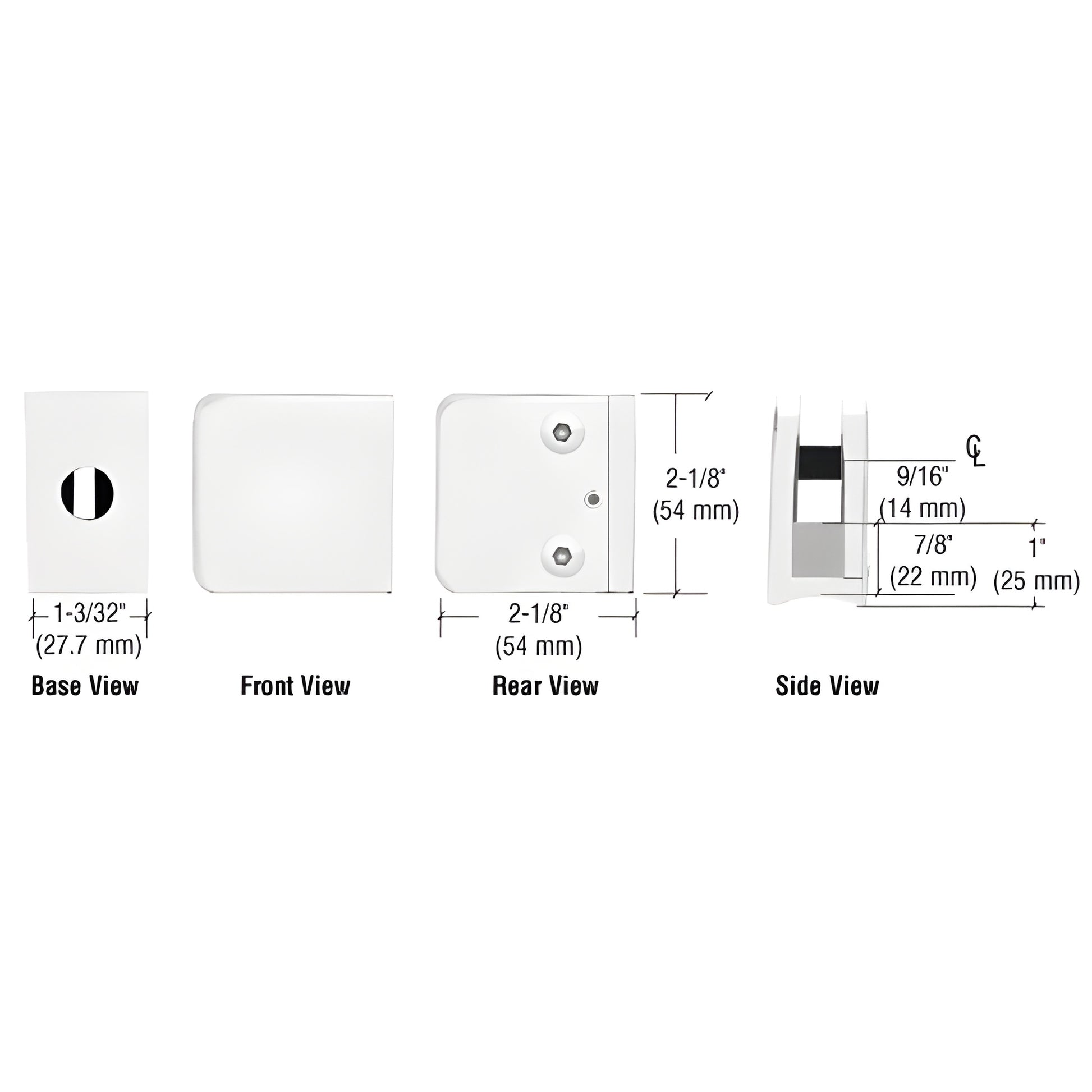

CRL Z-Series Clamps (SKU: Z135W) are available in round or square styles and in economical zinc or durable stainless steel construction. The Z135 Series glass clamp fits 3/8" (10 mm) glass and features a radius base designed for 2" (51 mm) tubing. Each clamp includes a steel pin and gaskets to help prevent panel slippage when a notch is drilled in the glass. Popular long-tail use cases: glass clamp for 3/8 inch glass partitions, radius base clamp for 2-inch tubing railings, and stainless steel glass clamp for exterior windbreaks. CRL Cat. No. ZBOLT14 (bolt) and RN1420 (rivet-nut) secure the Z-Clamp to tubing. A variety of finishes match most commercial decor.
Glass Fabrication: 1/2" (12 mm) notch required if using provided steel pin.
Replacement Hardware: CRL P612 for replacement screws.

Product Warning:
For interior and exterior applications, CRL recommends pinning each glass panel when the glass is not supported from the bottom edge to prevent slippage. Rubber gaskets and steel pins are provided with each clamp.

Order the CRL Z135W glass clamp today to secure 3/8" tempered glass in partitions, railings, and windbreaks.
