Product Details
- May be Used on Wood or Metal Radius
- For 3/8" (10 mm) Glass
- An Excellent Choice for Partitions, Mezzanines, Wind Breaks, Railings and Much More
- Use Monolithic Tempered Glass
- All Styles Include Steel Pin for Optional Use Through Hole in Glass to Prevent Slippage
- Custom Painted Finishes Available Upon Request

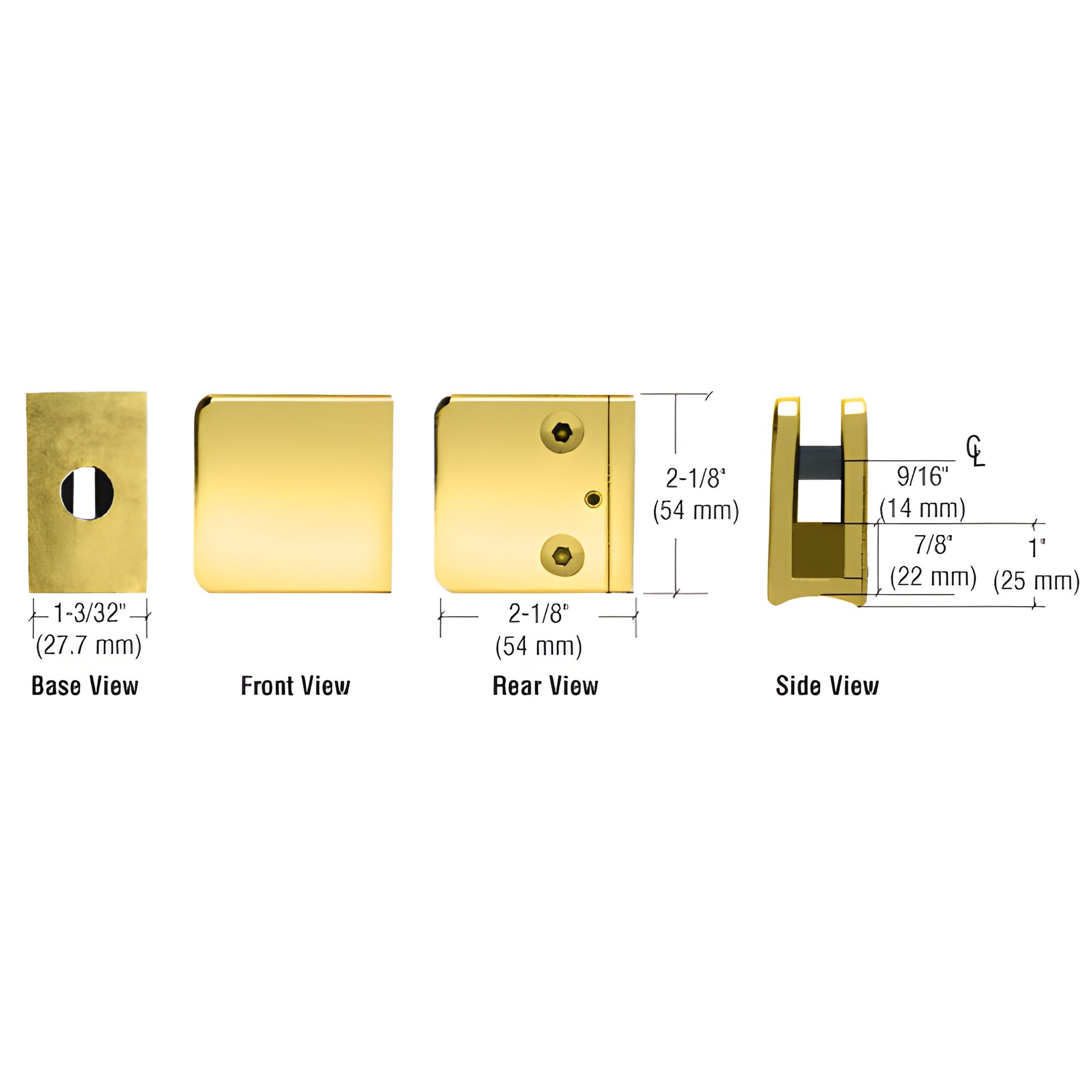

CRL Z-Series Clamps are available in your choice of round or square shapes, and come in either economical zinc construction, or durable stainless steel construction. CRL's Z135 Series Glass Clamps will accommodate glass thicknesses of 3/8" (10 mm). The radius base design is to be applied on 2" (51 mm) tubing. By drilling a notch in the glass, the pin included with each clamp can be used to eliminate glass slippage. Popular applications are partitions, mezzanines, wind breaks, railings and other commercial uses. CRL Cat. No. ZBOLT14 (Bolt) and Cat. No. RN1420 (Rivet-Nut) are used for securing Z-Clamp to tubing. Appropriate gaskets are included with each clamp. A variety of finishes are offered to match most any commercial decor.
Glass Fabrication: 1/2" (12 mm) notch is required if using provided steel pin.
Replacement Hardware: CRL P612 for Replacement Screws
Product Warning:
For interior and exterior applications CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
