Product Details
- For 3/8" (10 mm) Glass
- Use Monolithic Tempered Glass
- An Excellent Choice for Partitions, Mezzanines, Wind Breaks, Railings and Much More
- May Be Used on Wood or Metal Radius
- Custom Painted Finishes Available Upon Request

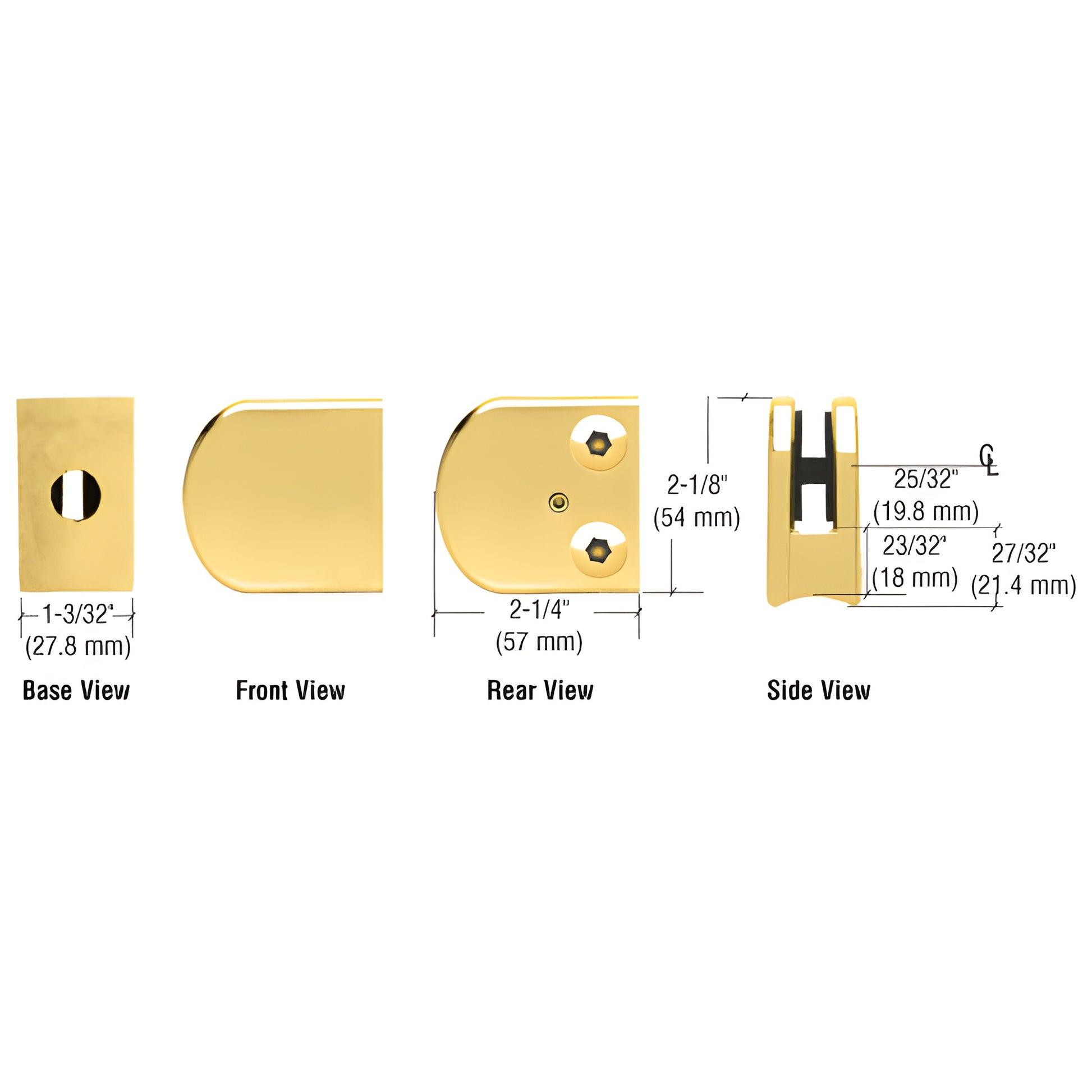

CRL Z-Series Clamps are available in your choice of round or square shapes, and come in either economical zinc, or durable stainless steel construction. The Z110 Series Glass Clamps are designed to accommodate a glass thickness of 3/8" (10 mm).
The radius base design can be applied on 2" (51 mm) tubing. By drilling a notch in the glass, the pin included with each clamp can be used to eliminate glass slippage. Popular applications are partitions, mezzanines, wind breaks, railings and other commercial uses. CRL Cat. No.'s ZB0LT14 (Bolt) and RN1420 (Rivet-Nut) are used for securing Z-CLAMP to tubing. Appropriate gaskets are included with each clamp.
Glass Fabrication: 1/2" (12 mm) notch is required if using provided steel pin.
Replacement Hardware: CRL P612 for Replacement Screws
Product Warning:
For interior and exterior applications CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
