CRL Polished Brass Z-Series Round Type Flat Base Zinc Clamp for 3/8" Glass

Item # Z410BR

$41.92 CAD

Finish (5)

Profile (2)

Base Type (2)

Overview

SKUZ410BR
Sold As1 Each
Base TypeFlat

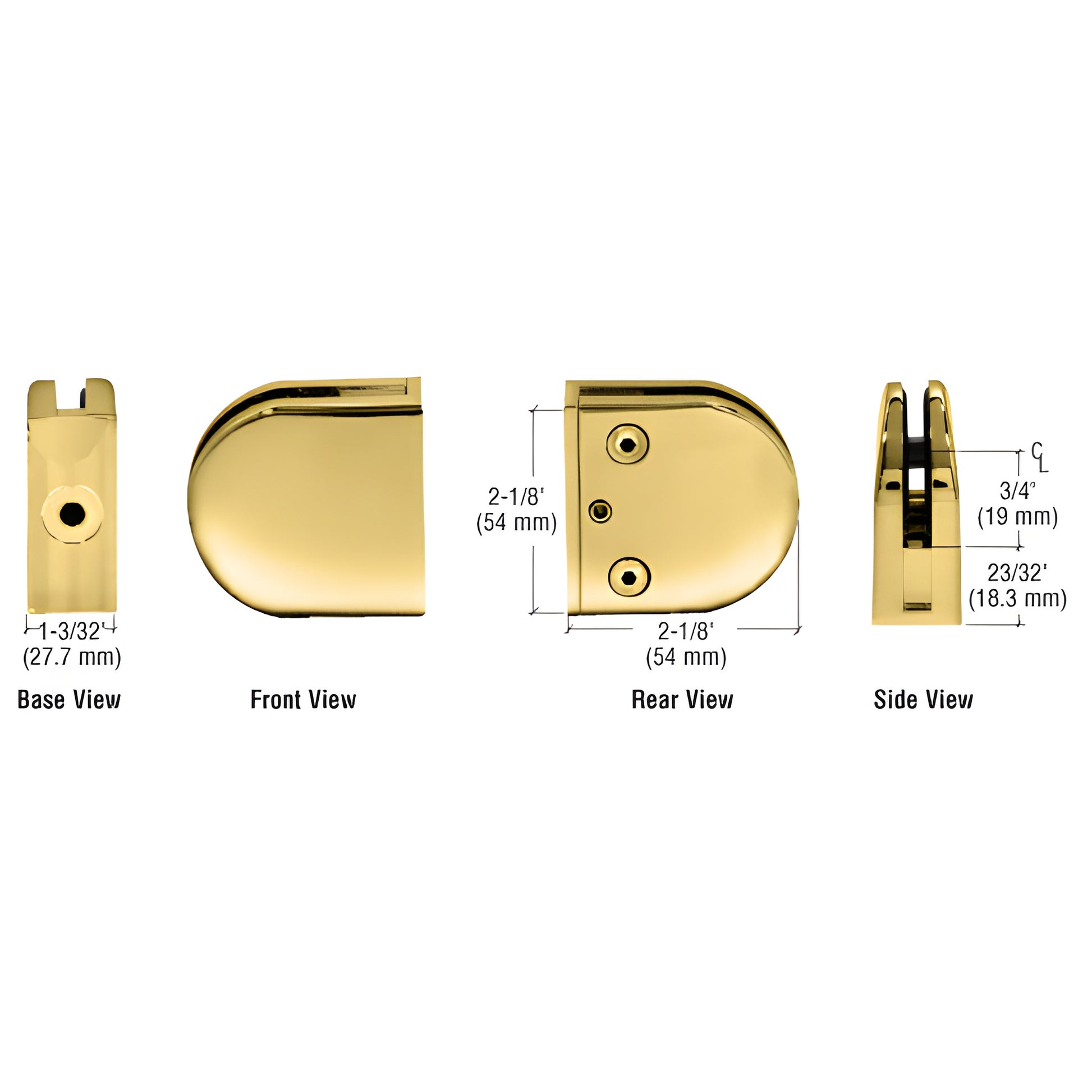

Depth1-3/32 in. (28 mm)
Finish/ColorPolished Brass
Glazing Thickness3/8 in. (10 mm)
Height2-1/8 in. (54 mm)
MaterialZinc
ProfileRound
Width2-1/8 in. (54 mm)

Description

  • For 3/8" (10 mm) Glass
  • Replacement Gaskets are Available by Ordering CRL Cat. No. Z38RG
  • For Use on Mezzanines, Partitions, Railings and Windbreaks
  • Use Monolithic Tempered Glass
  • Steel Pin Available for Additional Glass Support
  • Custom Painted Finishes Available Upon Request

Our CRL Z-Series Round Type Radius Base Glass Clamps are designed to be used on glass thickness of 3/8" (10 mm), and are available in either zinc or stainless steel. The clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.



For securing the Z-Clamp to thin wall tubing (less than 1/8”), use CRL’s ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For installation, drill a 17/32” (13.5 mm) hole, then install the Rivet-Nut using 34604 Heavy-Duty Thread Insert tool and 34618 5/16” Mandrel and Nosepiece.

NOTE: 1/2" (12 mm) hole is required if using the steel pin (included with the clamp) for additional glass support.

SPECIFICATIONS:
Glass Thicknesses: For 3/8" (10 mm).
Base Design: Flat
For Use With: Square Tubing or Other Flat Surfaces
Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications.
Glass Fabrication:
  • For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) Thick Glass: 1/2" (12 mm) diameter hole required if using provided steel pin for glass support.
  • For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support.
    Includes: Rubber Gaskets and Steel Pin (for optional use) with Grommet
    Replacement Hardware: CRL ZCS5X5BR for Replacement Screws


    Product Warning:

    For interior CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.

    Brass Finish Advisory:

    Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
