CRL Z-Series Satin Chrome Large Square Glass Clamp for 3/8 in

• May be used on wood or metal radius
• For 3/8" (10 mm) glass
• Designed for partitions, mezzanines, wind breaks, railings and other commercial applications
• Use monolithic tempered glass
• All styles include steel pin for optional use through hole in glass to prevent slippage
• Appropriate rubber gaskets included
• Custom painted finishes available upon request

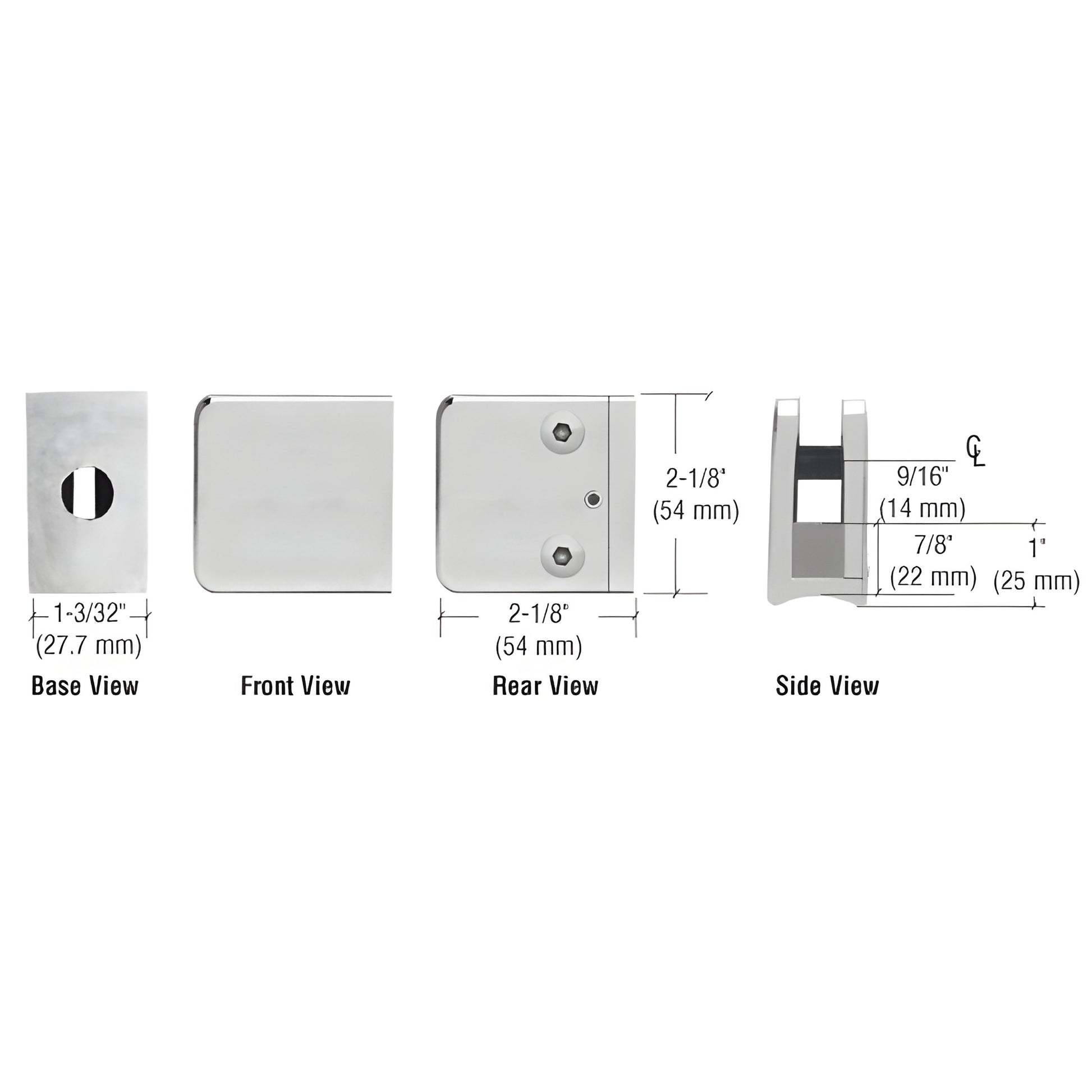

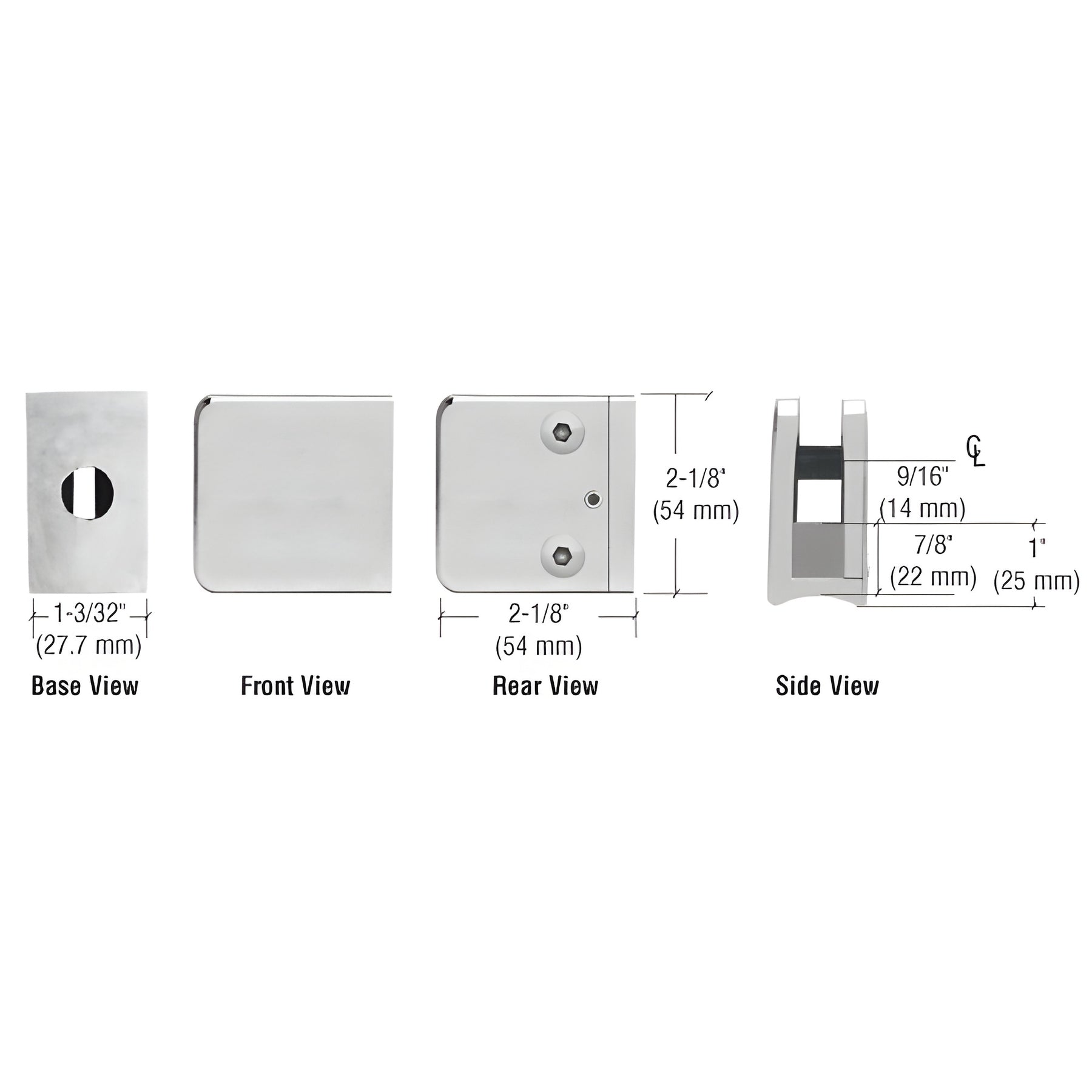

CRL Z-Series Clamps — Model Z135SC are available in round or square shapes and in economical zinc or durable stainless steel construction. The Z135 Series glass clamp fits 3/8" (10 mm) glass and features a radius base designed to mount on 2" (51 mm) tubing. Each clamp includes a steel pin to prevent glass slippage when a notch is drilled in the glass; appropriate gaskets are supplied. Common uses include commercial glass partitions, mezzanines, wind breaks and railings. CRL Cat. No. ZBOLT14 (Bolt) and Cat. No. RN1420 (Rivet‑Nut) secure the Z‑Clamp to tubing. A variety of finishes are offered to match commercial decor.

Glass Fabrication: 1/2" (12 mm) notch required if using the provided steel pin.
Replacement Hardware: CRL P612 for replacement screws

Product Warning:

For interior and exterior applications, CRL recommends pinning each glass panel when the glass is not supported from the bottom edge to prevent panel slippage. Rubber gaskets and steel pins are provided with each clamp.

Order Z135SC glass clamps for secure 3/8" tempered glass installations — contact us to request finishes or confirmed shipping weight.
