CRL Z-Series Brushed Nickel Large Square Glass Clamp 3/8"

• May be used on wood or metal radius
• For 3/8" (10 mm) glass
• An excellent choice for partitions, mezzanines, wind breaks, railings and other commercial applications
• Use monolithic tempered glass
• All styles include steel pin for optional use through hole in glass to prevent slippage
• Custom painted finishes available upon request

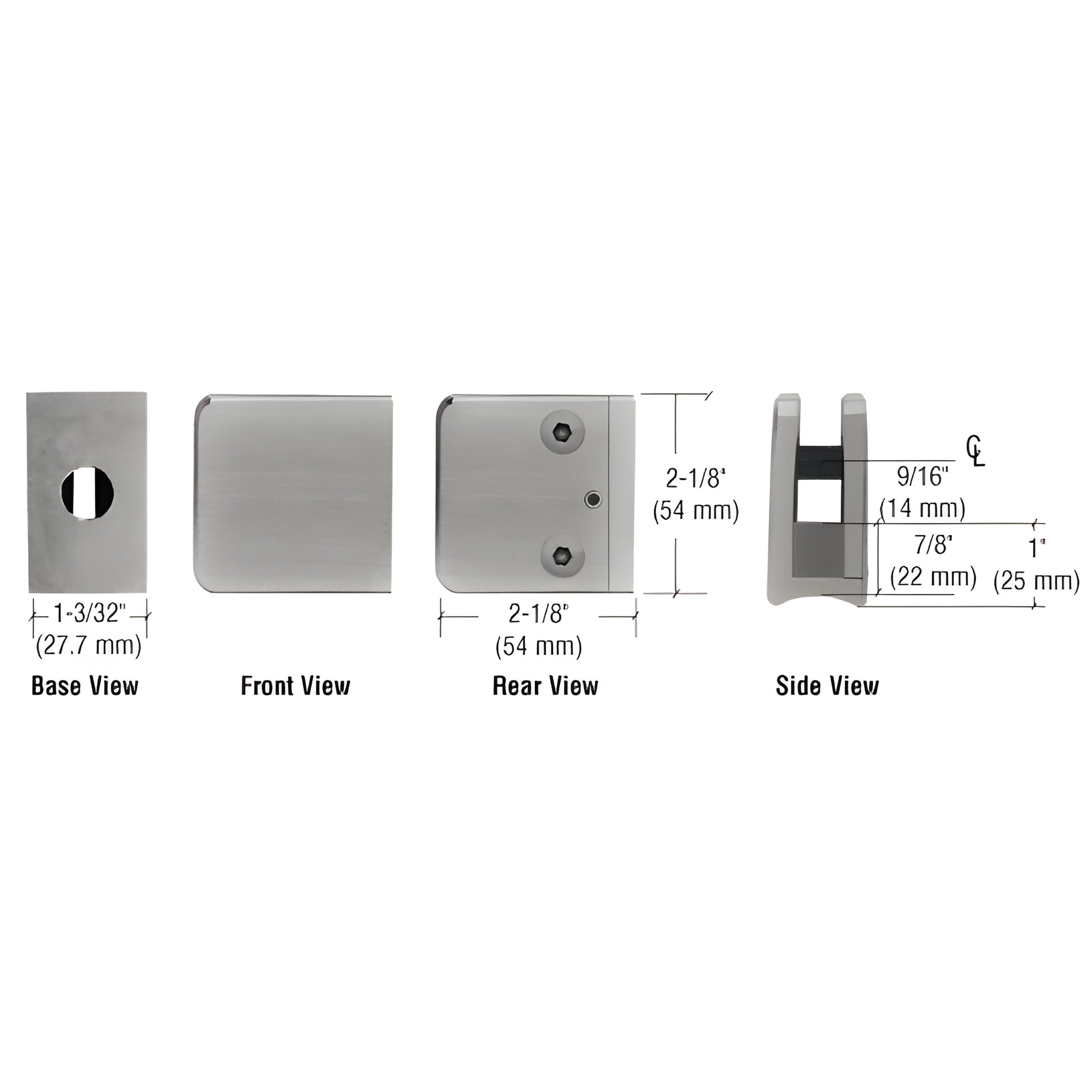

CRL Z-Series Clamps — Model Z135BN are available in round or square shapes and in economical zinc or durable stainless steel construction. The Z135 series glass clamps fit 3/8" (10 mm) glass and feature a radius base designed to mount on 2" (51 mm) tubing. The included steel pin can be used through a drilled notch in the glass to prevent slippage—ideal for glass partitions, mezzanines, wind breaks and railings. Appropriate rubber gaskets are provided with each clamp. CRL Cat. No. ZBOLT14 (Bolt) and Cat. No. RN1420 (Rivet-Nut) secure the Z-clamp to tubing. A variety of finishes are offered to match commercial decor.

Glass Fabrication: 1/2" (12 mm) notch required if using provided steel pin.
Replacement Hardware: CRL P612 for replacement screws.

Product Warning:
For interior and exterior applications, CRL recommends pinning each glass panel when the glass is not supported from the bottom edge to prevent slippage. Rubber gaskets and steel pins are provided with each clamp.

Shop CRL Z-Series Z135BN glass clamps for 3/8" glass and durable radius-base mounting—contact us to order or request finishes and shipping details.
