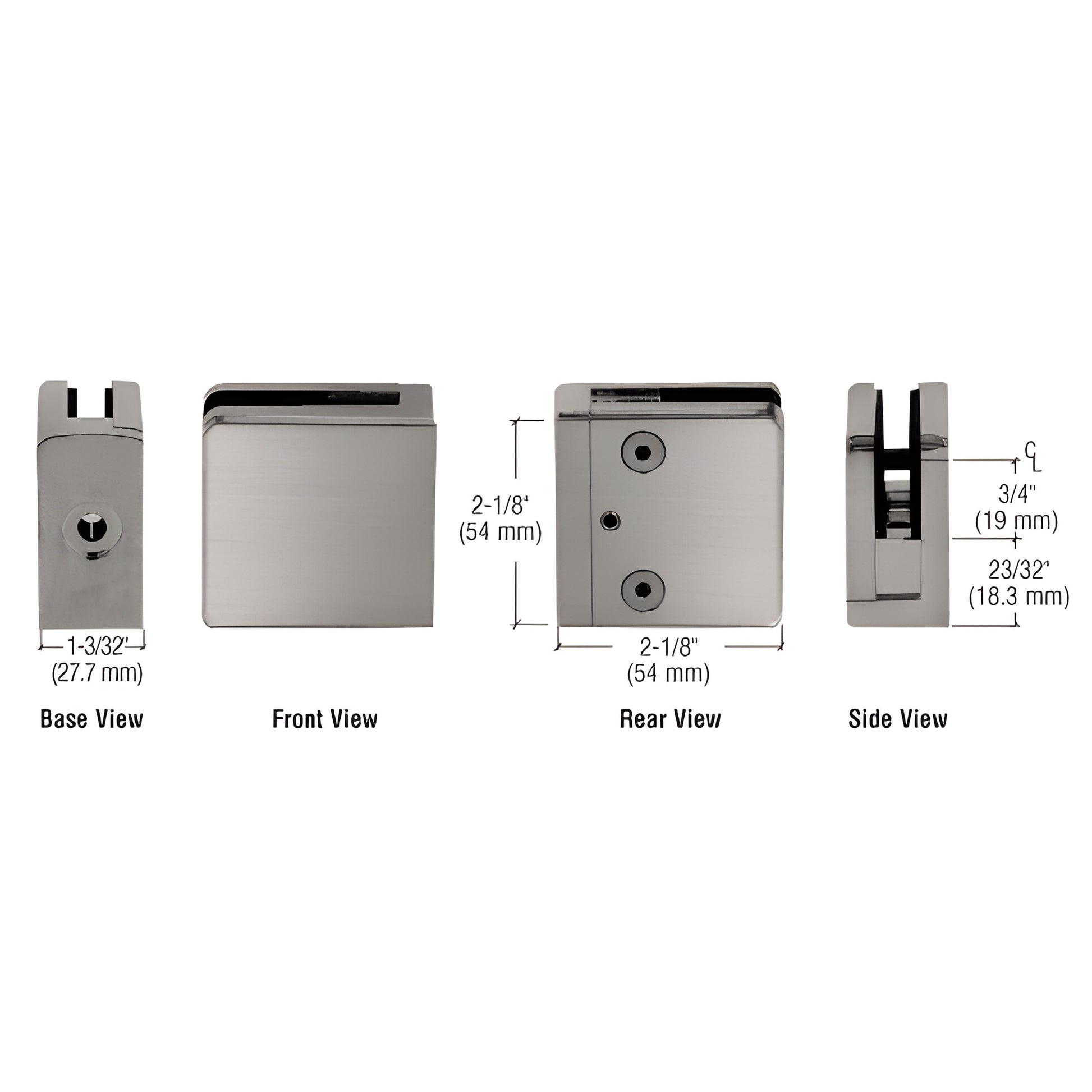

CRL Z-Series Brushed Nickel Zinc Square Flat-Base Glass Clamp 3/8"

• For 3/8" (10 mm) glass
• Replacement gaskets available: CRL Cat. No. Z38SG
• Ideal for mezzanines, partitions, railings and windbreaks
• Use with monolithic tempered glass
• Optional steel pin for additional glass support
• Custom painted finishes available upon request

CRL Z-Series Square Type Flat Base Glass Clamp (SKU: Z810BN) is engineered for 3/8" (10 mm) glass. The flat base installs easily onto square tubing or other flat surfaces. Constructed of zinc casting with a powder-painted finish; stainless steel options are available for enhanced corrosion resistance in exterior or high-moisture applications. Includes rubber gaskets and an optional steel pin with grommet for extra support—making these clamps a durable, versatile choice for partitions, railings, windbreaks and other architectural glass projects.

For securing the Z-Clamp to thin-wall tubing (< 1/8"), use CRL ZB0LT socket head cap bolt and ZRNUT rivet-nut. Drill a 17/32" (13.5 mm) hole, then install the rivet-nut using the 34604 heavy-duty thread insert tool with 34618 5/16" mandrel and nosepiece.

NOTE: A 1/2" (12 mm) hole is required if using the included steel pin for additional glass support.

SPECIFICATIONS:

• Glass thickness: Designed for 3/8" (10 mm) glass
• Base design: Flat — mounts to square tubing or other flat surfaces
• Material: Zinc casting (powder-painted) or stainless steel available
• Glass fabrication (pin hole diameters):
  • 1/4" (6 mm), 5/16" (8 mm), 3/8" (10 mm): 1/2" (12 mm) hole required when using steel pin
  • 1/2" (12 mm): 9/16" (14 mm) hole required when using steel pin
• Includes: Rubber gaskets (CRL Cat. No. Z38SG) and steel pin with grommet
• Replacement hardware: CRL ZCS5X5SS replacement screws

Product Warning:

For interior installations where the glass is not supported from the bottom edge, CRL recommends pinning each glass panel to prevent slippage. Rubber gaskets and steel pins are provided with each clamp.
