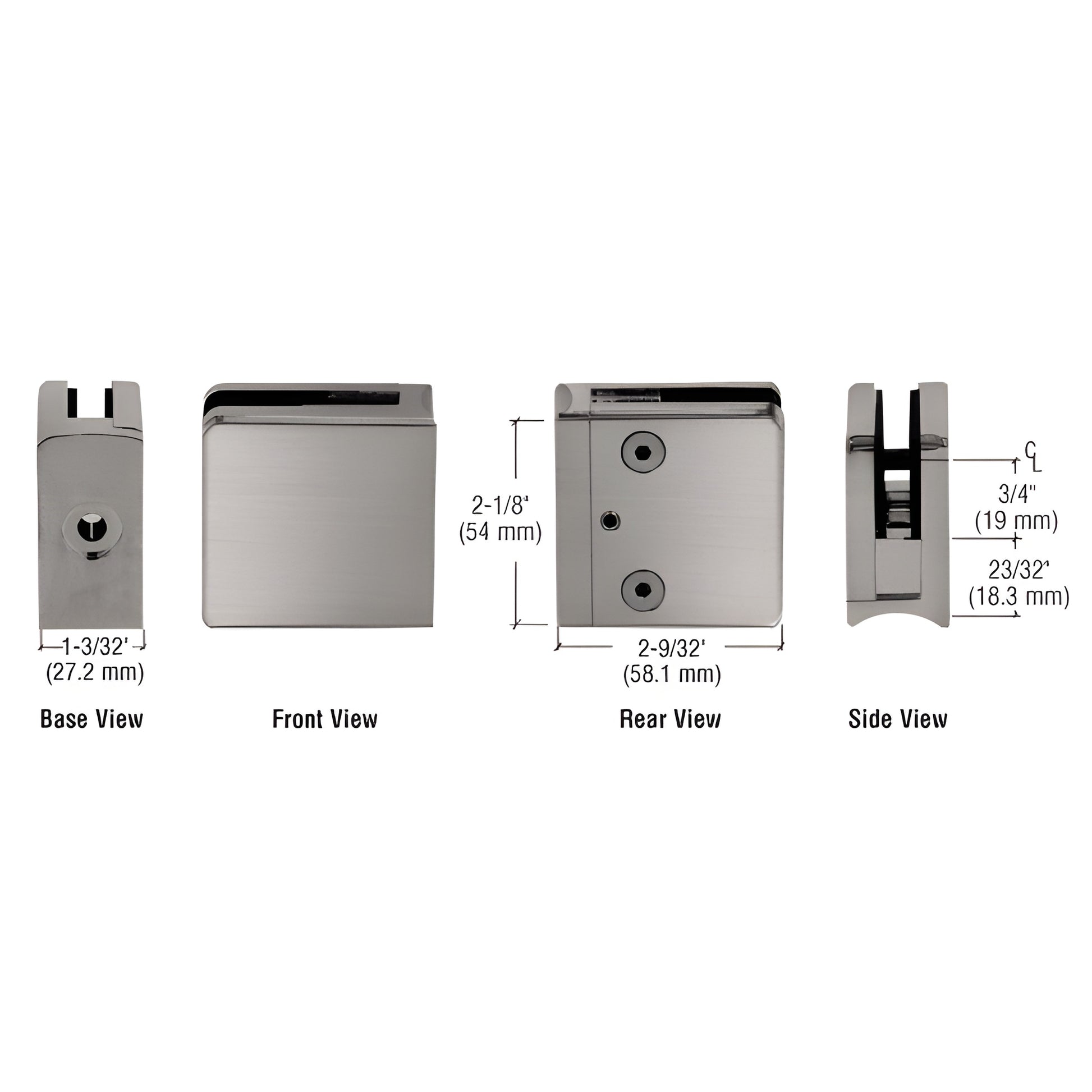

CRL Z-Series Brushed Nickel Square Radius Base Clamp for 3/8" Glass

• Designed for 3/8" (10 mm) glass
• Replacement gaskets: CRL Cat. No. Z38SG
• Ideal for mezzanines, partitions, railings and windbreaks
• Use with monolithic tempered glass
• Steel pin included for additional glass support
• Custom painted finishes available upon request

CRL Z-Series Square Type Radius Base Glass Clamp (SKU Z610BN) is engineered for 3/8" (10 mm) glass. Available in zinc or stainless steel, this square-radius base clamp provides secure mounting for partitions, railings, windbreaks and other architectural glass installations. Stainless steel or powder-painted zinc options offer improved durability for exterior applications.

For securing the Z-Clamp to thin-wall tubing (less than 1/8"), use CRL ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. Drill a 17/32" (13.5 mm) hole, then install the Rivet-Nut using the 34604 Heavy-Duty Thread Insert tool with the 34618 5/16" mandrel and nosepiece.

NOTE: A 1/2" (12 mm) hole is required if using the included steel pin for additional glass support.

SPECIFICATIONS:

• Glass Thickness: 3/8" (10 mm)
• Base Design: Flat
• For Use With: Square tubing or other flat surfaces
• Material: Zinc or stainless steel (stainless or powder-painted zinc recommended for exterior use)
• Glass Fabrication:
  • For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) glass: 1/2" (12 mm) diameter hole required if using provided steel pin
  • For 1/2" (12 mm) glass: 9/16" (14 mm) diameter hole required if using provided steel pin
• Includes: Rubber gaskets (CRL Cat. No. Z38SG) and steel pin with grommet
• Replacement Hardware: CRL ZCS5X5SS replacement screws

Installation & Safety:

For interior installations where the glass panel is not supported at the bottom edge, CRL recommends pinning each panel to prevent slippage. Rubber gaskets and steel pins are supplied
