CRL Z-Series Gold-Plated Zinc Glass Clamp, Square Radius Base 3/8 in

• For 3/8" (10 mm) glass
• Replacement gaskets: CRL Cat. No. Z38SG
• Applications: mezzanines, partitions, railings and windbreaks
• Use monolithic tempered glass
• Steel pin included for additional glass support
• Custom painted finishes available upon request

This CRL Z-Series Square Type Radius Base Glass Clamp (SKU: Z610GP) secures 3/8" (10 mm) glass and is constructed in zinc or stainless steel for durability. Designed for glass railing clamps, partition glass clamps and windbreak installations, the Z-Series clamp offers a flat base for mounting to square tubing or other flat surfaces. Stainless steel or powder-painted zinc finishes are recommended for exterior applications.

For attaching the clamp to thin-walled tubing (less than 1/8”), use CRL’s ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. Drill a 17/32” (13.5 mm) hole and install the rivet-nut with the 34604 Heavy-Duty Thread Insert tool and 34618 5/16” mandrel and nosepiece.

NOTE: A 1/2" (12 mm) hole is required if using the included steel pin for additional glass support.

SPECIFICATIONS:

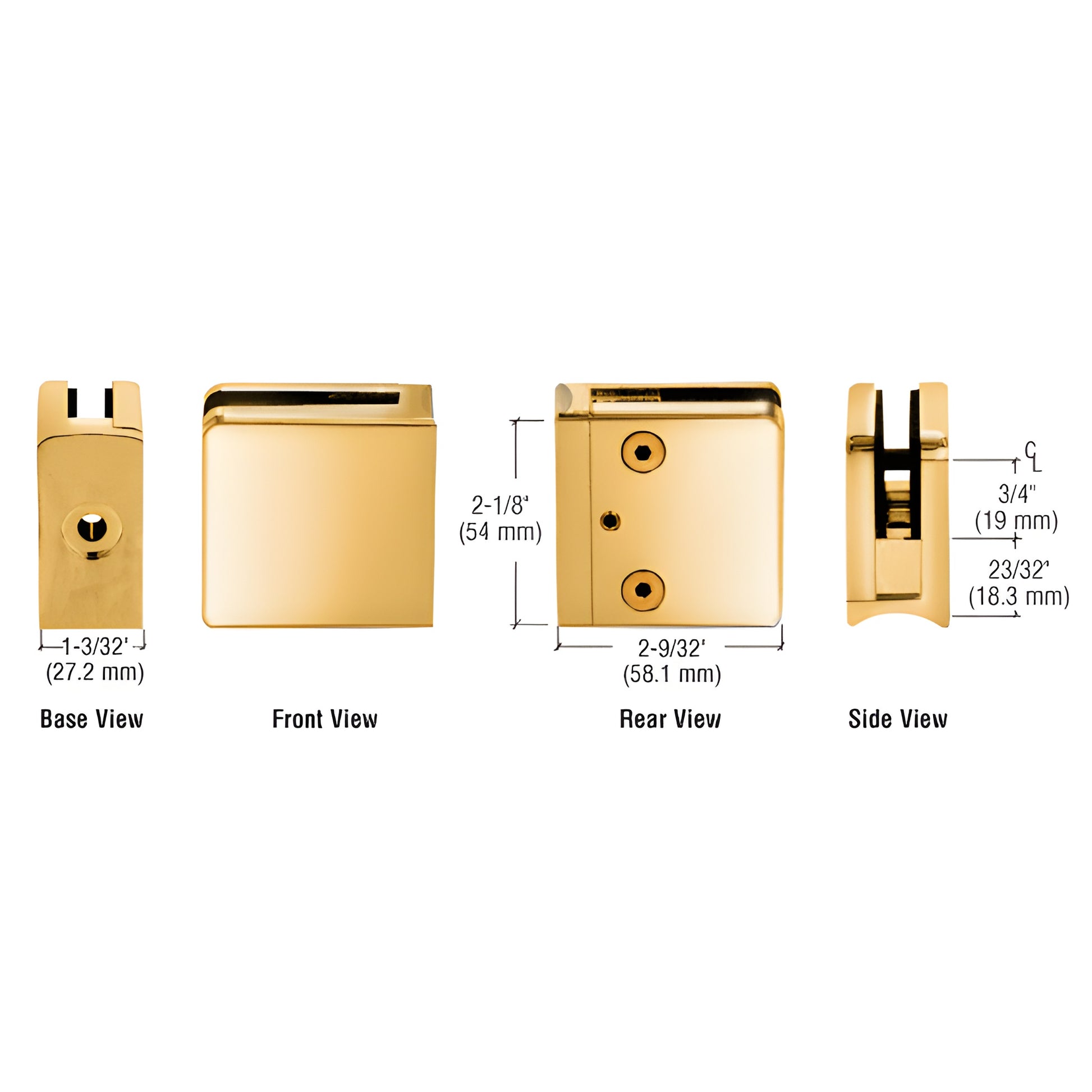

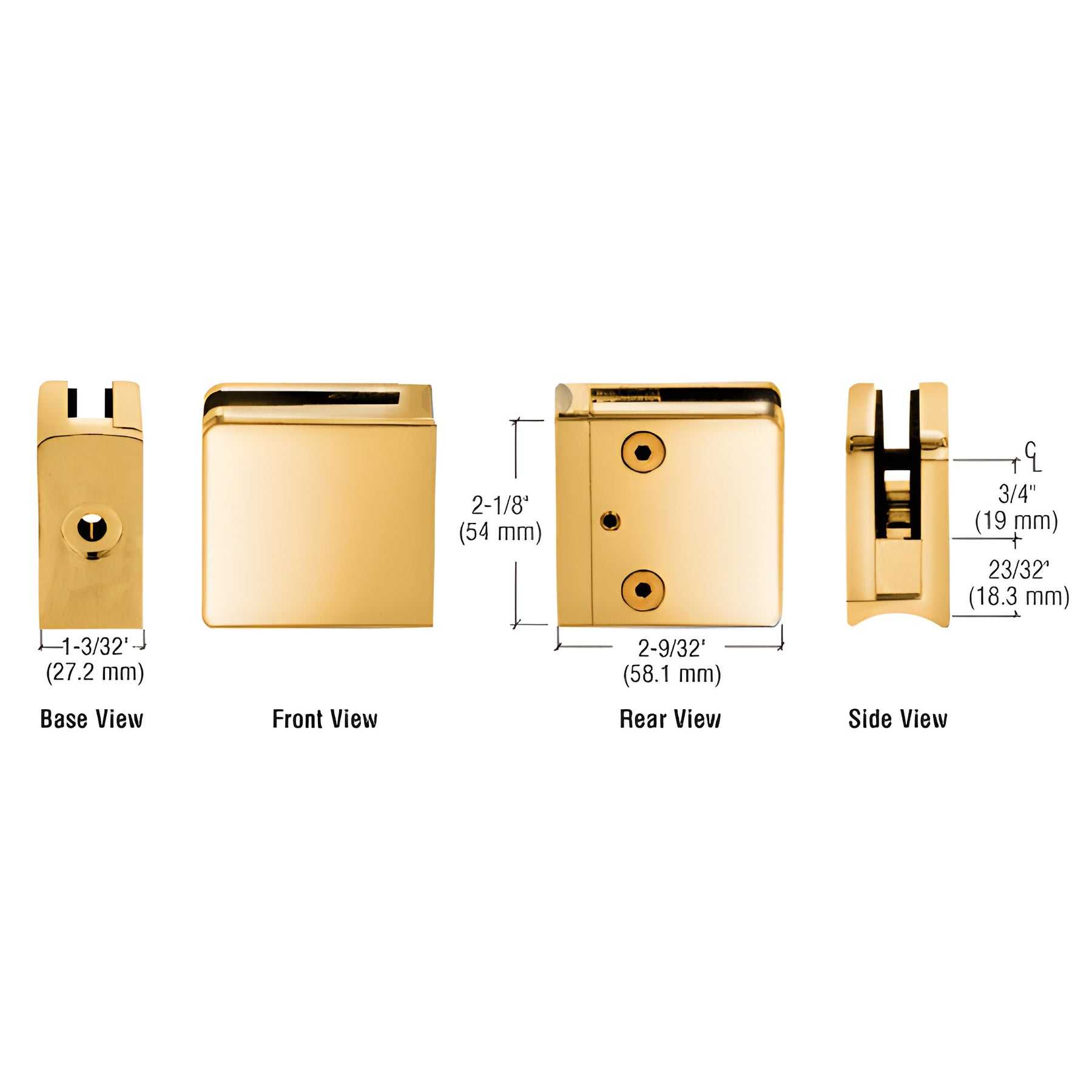

Glass Thickness: 3/8" (10 mm)
Base Design: Flat
For Use With: Square tubing or other flat surfaces
Material: Zinc or stainless steel (stainless or powder-painted zinc recommended for exterior use)
Glass Fabrication:

• For 1/4" (6 mm), 5/16" (8 mm) and 3/8" (10 mm) glass: 1/2" (12 mm) diameter hole required when using the provided steel pin
• For 1/2" (12 mm) glass: 9/16" (14 mm) diameter hole required when using the provided steel pin

Includes: Rubber gaskets (CRL Cat. No. Z38SG) and steel pin with grommet
Replacement Hardware: CRL ZCS5X15BR replacement screws

Product Warning:
For interior use, CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent panel slippage. Rubber gaskets and steel pins are provided with each clamp.
