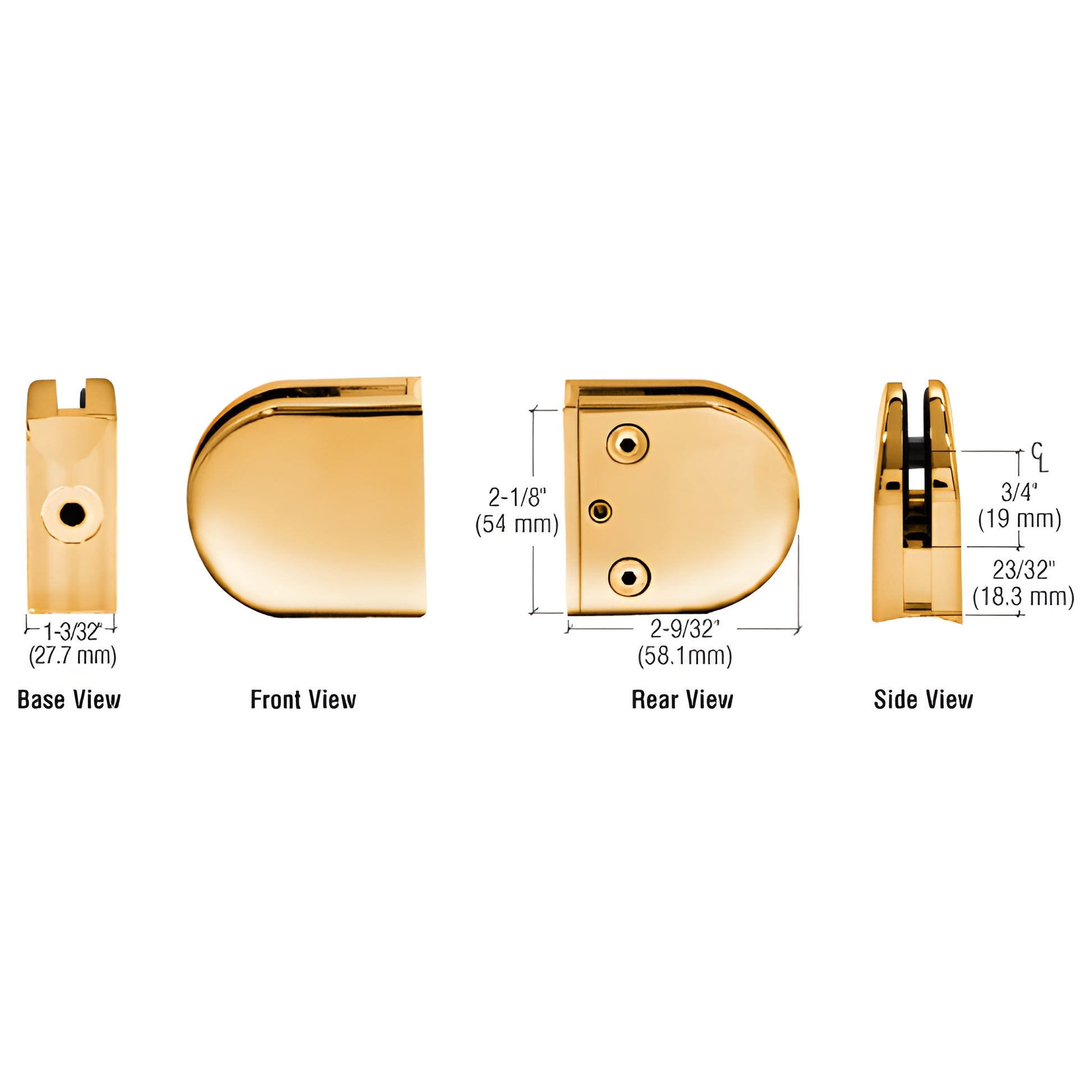

CRL Z-Series Gold-Plated Round 2" Radius Zinc Clamp for 3/8" Glass

• For 3/8" (10 mm) glass
• Zinc casting (stainless steel option available)
• Ideal for mezzanines, partitions, railings and windbreaks
• Use with monolithic tempered glass
• Steel pin included for optional additional glass support
• Tested and engineered to meet and exceed code standards
• Custom painted finishes available upon request

Our CRL Z-Series Round Type Radius Base Glass Clamps (SKU: Z210GP) are made for 1/4" to 1/2" (6–12 mm) glass and come in zinc or stainless steel. These radius-base glass clamps provide secure mounting for railing systems, partition glass, mezzanine guards and exterior windbreaks—making them a durable solution for tempered glass railing and glass panel railing installations.

For securing the Z-clamp to thin wall tubing (under 1/8"), use CRL’s ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. Drill a 17/32” (13.5 mm) hole, then install the rivet-nut with the 34604 Heavy-Duty Thread Insert tool and 34618 5/16” mandrel and nosepiece.

NOTE: A 1/2" (12 mm) notch is required if using the included steel pin for additional glass support.

SPECIFICATIONS:

• Glass Thickness: 3/8" (10 mm) recommended; supports 1/4"–1/2" (6–12 mm)
• Base Design: Radius
• For Use With: 1-1/2" or 2" (38 or 50.8 mm) diameter round tubing
• Material: Zinc casting or stainless steel. Stainless or powder-painted zinc recommended for exterior durability
• Glass Fabrication:
  • For 1/4" (6 mm), 5/16" (8 mm) and 3/8" (10 mm) glass: 1/2" (12 mm) notch required when using steel pin
  • For 1/2" (12 mm) glass: 9/16" (14 mm) diameter hole required when using steel pin
• Includes: Rubber gaskets and steel pin with grommet
• Replacement Hardware: Replacement screws: CRL ZCS5X15BR. Replacement gaskets: CRL Cat. No. Z38RG

Product Warning:
For interior installations where the glass panel is not supported from the bottom edge, CRL recommends pinning each glass panel to prevent slippage. Rubber gaskets and steel pins are provided
