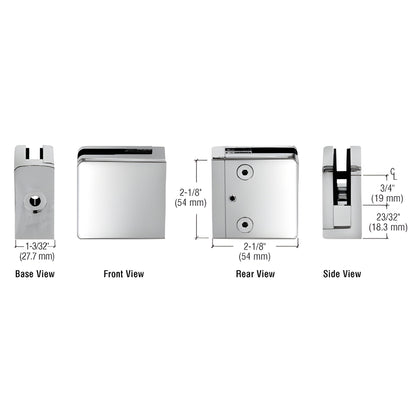

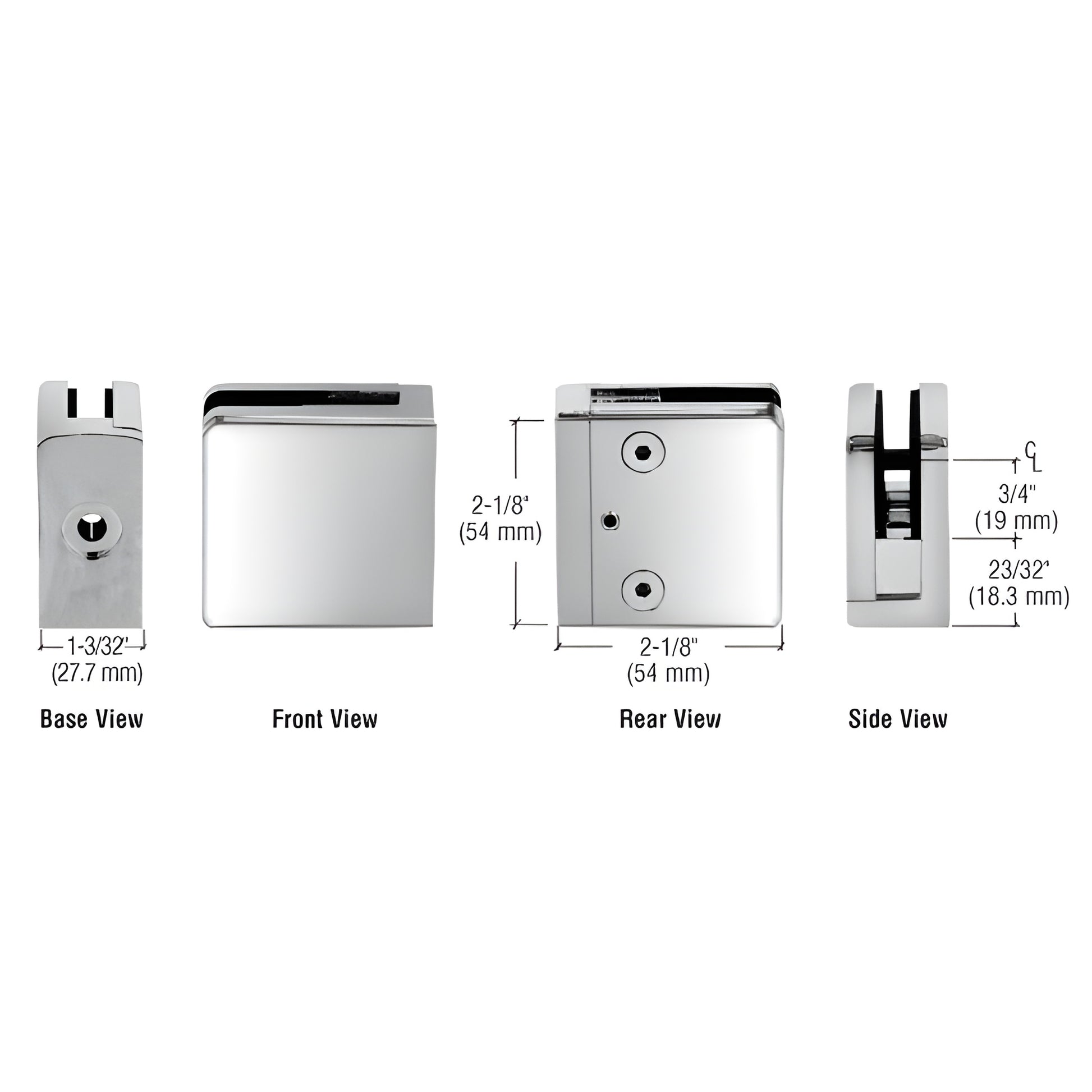

CRL Z-Series Chrome Zinc Square Flat-Base Clamp for 3/8" Glass

• For 3/8" (10 mm) glass (use monolithic tempered glass)
• Flat base glass clamp for square tubing or other flat surfaces
• Zinc die-cast with powder-painted finish; stainless steel option available for exterior use
• Includes optional steel pin for additional glass support (requires 1/2" / 12 mm hole)
• Replacement rubber gaskets: CRL Cat. No. Z38SG
• Replacement screws: CRL ZCS5X5CH

CRL Z-Series Square Type Flat Base Glass Clamp (SKU: Z810CH) is designed for 3/8" (10 mm) glass and installs on square tubing or other flat surfaces. The flat base simplifies mounting to square rails, mezzanines, partitions, railings and windbreaks. Constructed of zinc casting with a powder-painted finish; stainless steel clamps are available for increased durability in exterior or corrosive environments. An included steel pin offers optional weight support for pinned tempered glass panels.

Installation notes: For thin-wall tubing (<1/8"), use CRL ZB0LT socket head cap bolt with ZRNUT rivet-nut. Drill a 17/32” (13.5 mm) hole for the rivet-nut and install with the 34604 heavy-duty thread insert tool and 34618 5/16” mandrel and nosepiece. If using the steel pin, drill a 1/2" (12 mm) hole for 1/4"–3/8" (6–10 mm) glass; 9/16" (14 mm) hole required for 1/2" (12 mm) glass.

Specifications:
Glass thickness: 3/8" (10 mm).
Base design: Flat.
Material: Zinc casting (powder-painted) or stainless steel.
Includes: Rubber gaskets (CRL Z38SG) and steel pin with grommet (optional).

Product warning: For interior applications where glass is not supported on the bottom edge, CRL recommends pinning each glass panel to prevent slippage. Rubber gaskets and steel pins are provided with each clamp.

Order SKU Z810CH today for a durable flat-base glass clamp solution—contact CRL Customer Service for exact shipping weight or custom painted finishes.
