CRL Matte Black Z-Series Square Type Flat Base Zinc Clamp for 1/2" Glass

• For 1/2" (12 mm) Glass Thickness
• Replacement Gaskets are available by ordering Cat.No. Z12SG
• For Use on Mezzanines, Partitions, Railings and Windbreaks
• Use Monolithic Tempered Glass
• Steel Pin Available for Additional Glass Support
• Tested and Engineered to Meet and Exceed Code Standards
• Custom Painted Finishes Available Upon Request

This

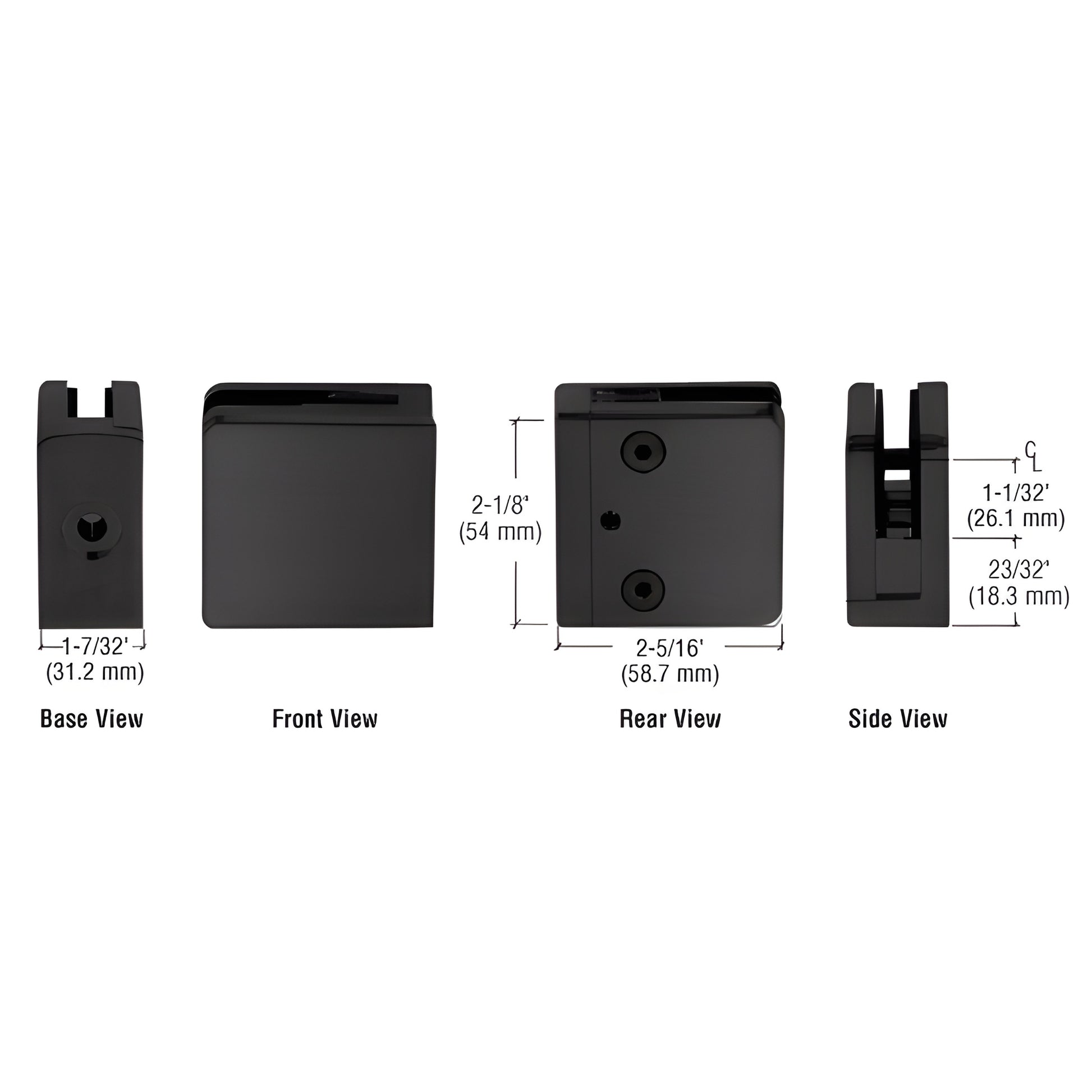

CRL Z-Series Square Type Flat Base Glass Clamp

is designed to be used on glass 1/2" (12 mm) thickness. Constructed from either zinc or stainless steel, the clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.

For securing the Z-Clamp to thin wall tubing ( less than 1/8"), use CRL's

Socket Head Cap Bolt and

Rivet Nut. For installation, drill 17/32 (13.5 mm) hole, then install the Rivet-Nut using 34604 Heavy-Duty Thread Insert tool and 34618 5/16" Mandrel and Nosepiece.

: 9/16" (14.3 mm) hole is required if using the steel pin (included with the clamp) for additional glass support.

For 1/2" (12 mm).

Flat

Square Tubing or Other Flat Surfaces

Choice of Zinc Constructed or Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications.

For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) Thick Glass: 1/2" (12mm) diameter hole required if using provided steel pin for glass support. For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using provide steel pin for glass support.

Rubber Gaskets and Steel Pin (for optional use) with Grommet

CRL ZCS5X15SS for Replacement Screws

Product Warning

For interior CRL recommends pinning each glass as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pin are provided with each clamp.
