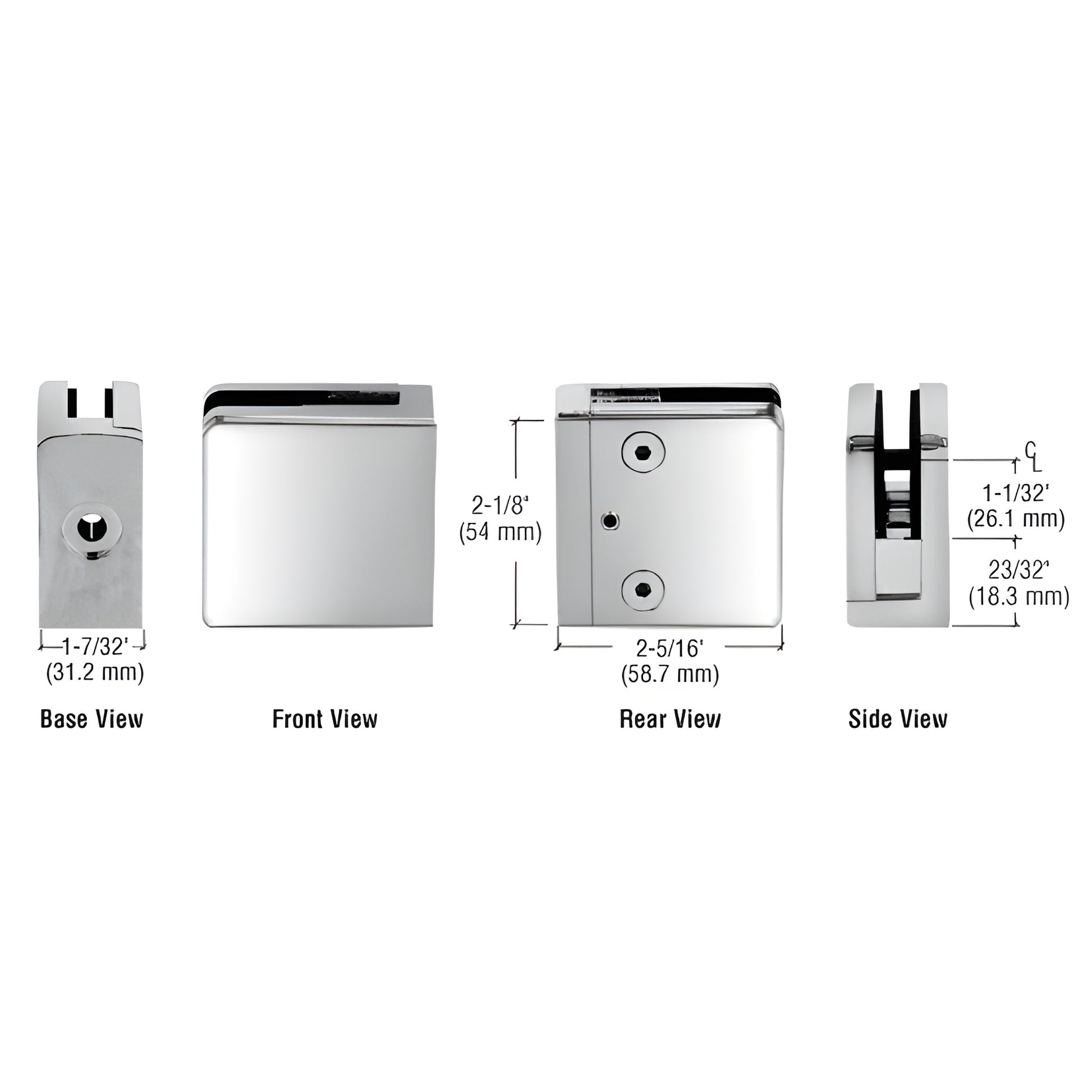

CRL Z-Series Chrome Square Flat-Base Glass Clamp for 1/2" Glass

• For 1/2" (12 mm) glass thickness
• Replacement gaskets available: Cat. No. Z12SG
• Ideal for mezzanines, partitions, railings and windbreaks
• Use with monolithic tempered glass
• Steel pin included for additional glass support
• Custom painted finishes available upon request

This CRL Z-Series Square Type Flat Base Glass Clamp (SKU: Z812CH) secures 1/2" (12 mm) glass and is available in zinc or stainless steel. Designed as a flat-base square glass clamp for railings, partitions and windbreaks, it provides a low-profile, durable solution for commercial and residential glass railing installations.

For securing the Z-Clamp to thin-wall tubing (less than 1/8"), use CRL ZBOLT Socket Head Cap Bolt and ZRNUT Rivet Nut. Drill a 17/32" (13.5 mm) hole, then install the rivet-nut using the 34604 Heavy-Duty Thread Insert tool with the 34618 5/16" mandrel and nosepiece.

NOTE: A 9/16" (14.3 mm) hole is required if using the steel pin (included) for additional glass support.

SPECIFICATIONS
Glass Thickness: 1/2" (12 mm)
Base Design: Flat
For Use With: Square tubing or other flat surfaces
Material: Zinc or stainless steel (powder-painted zinc recommended for exterior durability)
Glass Fabrication: For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) glass: 1/2" (12 mm) diameter hole required if using the steel pin. For 1/2" (12 mm) glass: 9/16" (14 mm) diameter hole required if using the steel pin.
Includes: Rubber gaskets and steel pin with grommet
Replacement Hardware: CRL ZCS5X15CH for replacement screws

Product Warning:
For interior installations, CRL recommends pinning each glass panel when the glass is not supported from the bottom edge to prevent slippage. Rubber gaskets and steel pins are provided with each clamp.

Order the Z812CH flat base square glass clamp today to secure 1/2" glass panels in railings, partitions and windbreaks.
