CRL Z-Series Satin Chrome Square Flat-Base Zinc Glass Clamp 1/2in

• For 1/2" (12 mm) glass thickness
• Replacement gaskets available: Cat. No. Z12SG
• Ideal for mezzanines, partitions, railings and windbreaks
• Use with monolithic tempered glass
• Steel pin included for additional glass support
• Custom painted finishes available on request

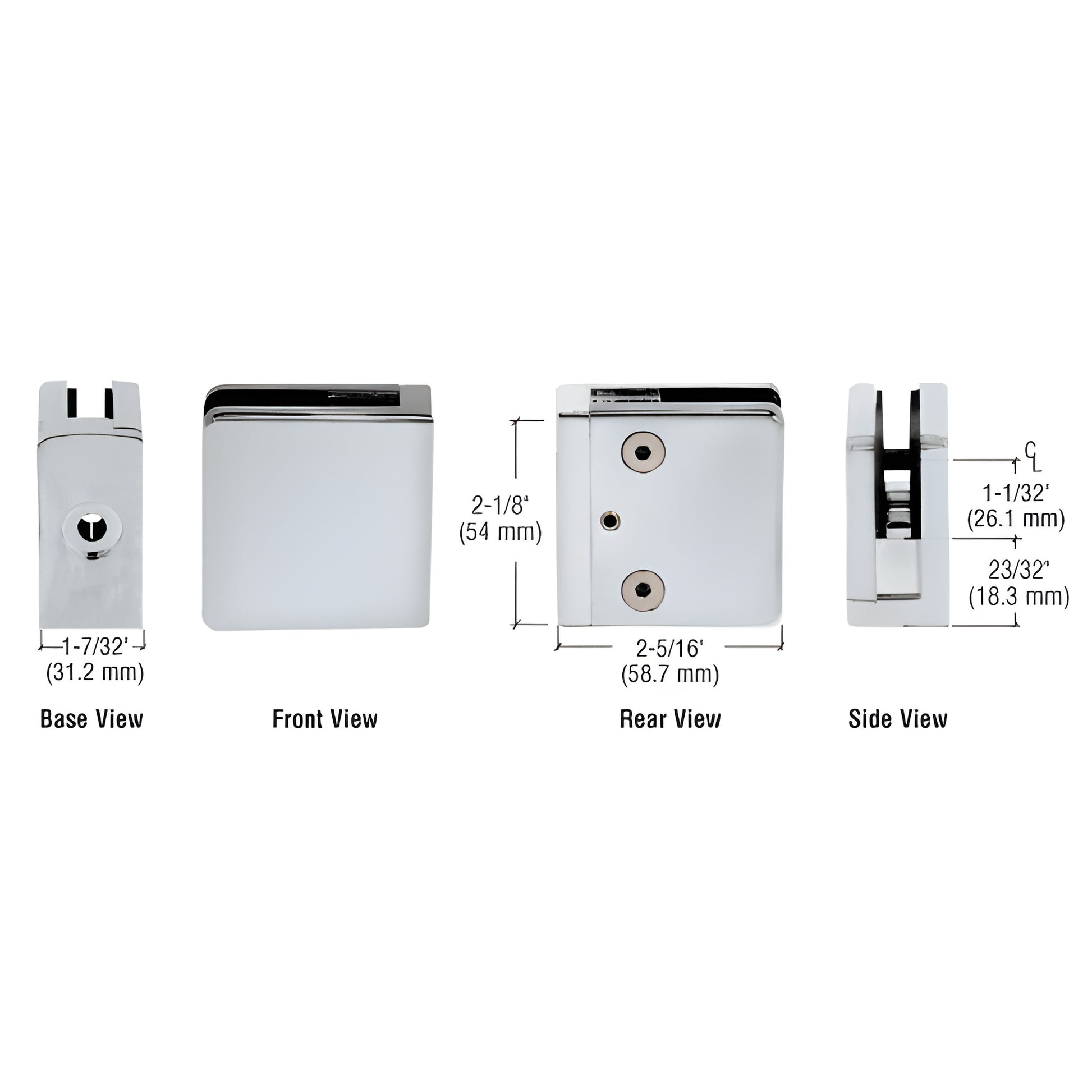

This CRL Z-Series Square Type Flat Base Glass Clamp (SKU Z812SC) secures 1/2" (12 mm) tempered or monolithic glass for interior and exterior applications. Available in zinc or stainless steel, the Z812SC is a durable square glass clamp designed for partitions, railings, windbreaks and other architectural glazing projects where a flat-base clamp for square tubing or flat surfaces is required.

For fastening to thin-wall tubing (less than 1/8"), use CRL ZBOLT Socket Head Cap Bolt and ZRNUT Rivet Nut. Drill a 17/32" (13.5 mm) hole, then install the rivet nut with the 34604 Heavy-Duty Thread Insert tool and 34618 5/16" mandrel and nosepiece. NOTE: A 9/16" (14.3 mm) hole is required when using the included steel pin for additional glass support.

SPECIFICATIONS
Glass Thickness: 1/2" (12 mm)
Base Design: Flat base for square tubing or other flat surfaces
Materials: Zinc or stainless steel construction; powder-painted zinc available for improved exterior durability
Glass Fabrication Notes: For 1/4" (6 mm), 5/16" (8 mm) and 3/8" (10 mm) glass, a 1/2" (12 mm) diameter hole is required when using the steel pin. For 1/2" (12 mm) glass, a 9/16" (14 mm) diameter hole is required when using the steel pin.
Includes: Rubber gaskets and steel pin with grommet
Replacement Hardware: CRL ZCS5X15CH replacement screws

Product Warning:

For interior installations where the bottom edge of the glass is not supported, CRL recommends pinning each glass panel to prevent slippage. Rubber gaskets and steel pins are provided with each clamp.
