CRL Z-Series Satin Chrome Round Flat-Base Glass Clamp for 1/2" Glass

• For 1/2" (12 mm) Glass — models accommodate 1/4" to 1/2" (6–12 mm)
• Replacement gaskets: Cat. No. Z12RG
• Applications: mezzanines, partitions, railings and windbreaks — ideal for interior and exterior glass railing projects
• Use monolithic tempered glass
• Steel pin included for additional glass support; 1/2" (12 mm) hole required when using the pin with thinner glass
• Replacement screws: CRL Cat. No. ZCS5X15SS
• Steel pin and grommet included
• Custom painted finishes available upon request
• Available in zinc or stainless steel (powder-painted zinc recommended for exterior durability)

Our CRL Z-Series Round Type Radius Base Glass Clamps (SKU: Z412SC) are designed for 1/4" to 1/2" (6–12 mm) glass and provide a clean radius base mounting for partitions, railings, windbreaks and other barrier systems. Constructed in zinc or stainless steel, these clamps are a durable solution for both interior and exterior glass railing installations and custom architectural projects.

Replacement screws are available as CRL Cat. No. ZCS5X15SS. To secure the Z-Clamp to thin-wall tubing (<1/8"), use CRL ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For Rivet-Nut installation drill a 17/32” (13.5 mm) hole, then install using the 34604 Heavy-Duty Thread Insert tool with the 34618 5/16” mandrel and nosepiece.

NOTE: 1/2" (12 mm) hole is required if using the included steel pin for additional glass support.

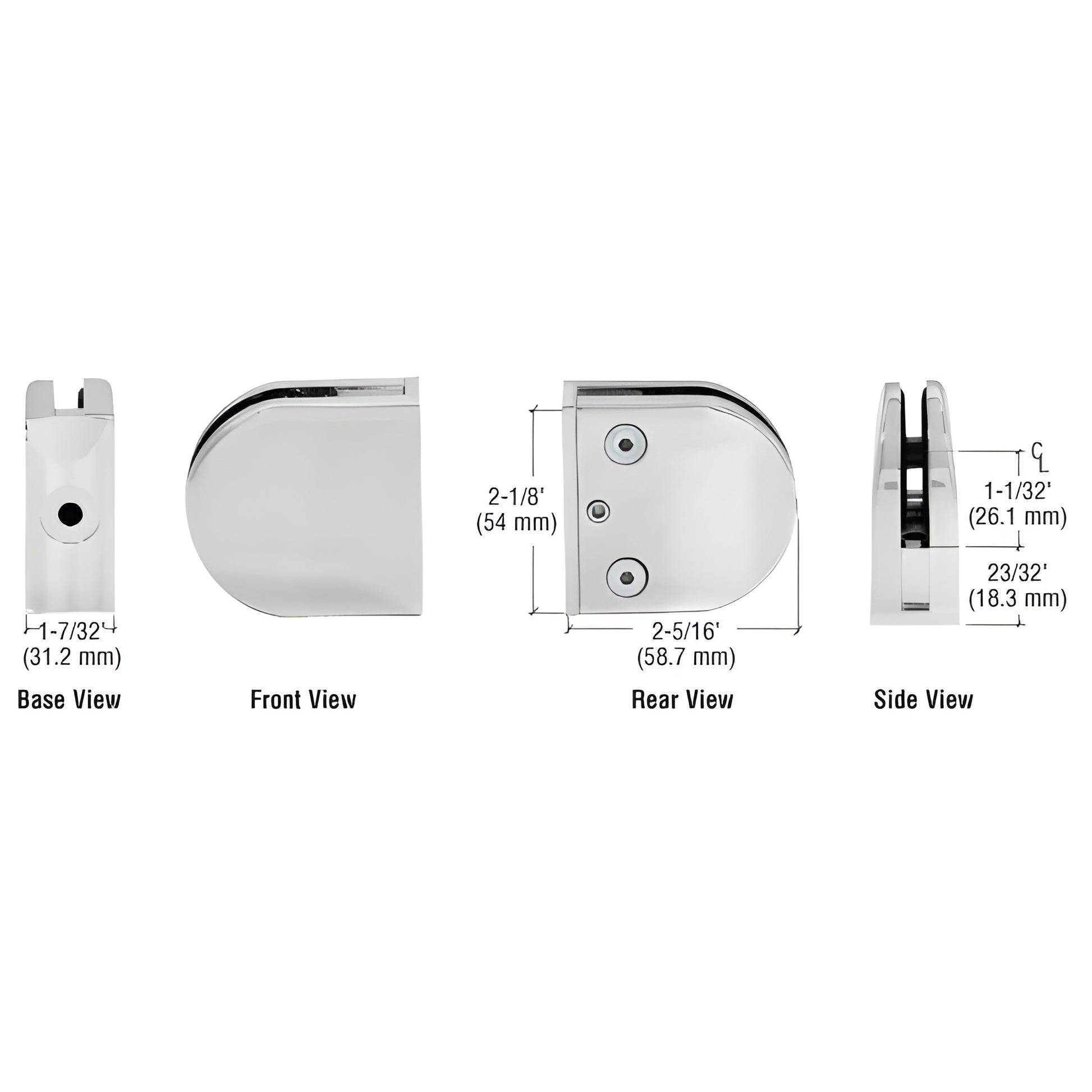

SPECIFICATIONS:
Glass Thicknesses: Models for 1/4" to 1/2" (6 to 12 mm)
Base Design: Flat radius base
For Use With: Square tubing or other flat surfaces
Material: Zinc or stainless steel. Stainless or powder-painted zinc recommended for exterior durability.
Glass Fabrication: For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) glass: 1/2" (12 mm) diameter hole required if using the steel pin. For 1/2" (12 mm) glass: 9/16" (14 mm) diameter hole required if using the steel pin.
Includes: Rubber gaskets and steel pin with grommet
