- Fits 1/2" (12 mm) glass
- Replacement gaskets: Cat. No. Z12RG
- Ideal for mezzanines, partitions, railings and windbreaks
- Use with monolithic tempered glass
- Steel pin available for additional glass support
- Custom painted finishes available upon request
Our

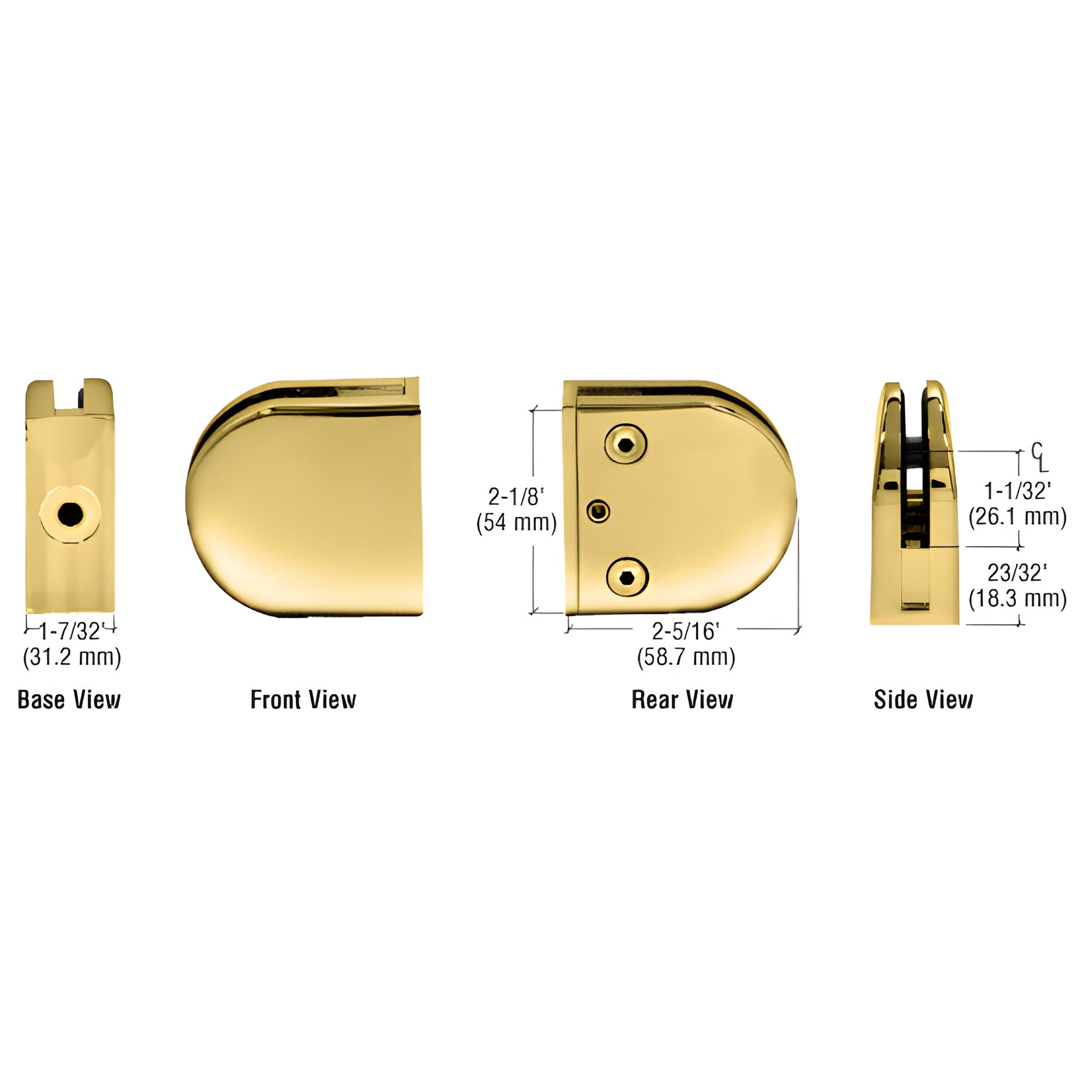

CRL Z-Series Round Type Radius Base Glass Clamps (SKU Z412BR) accommodate glass thicknesses from 1/4" to 1/2" (6–12 mm) and are offered in zinc or stainless steel. These round radius base glass clamps provide a secure, low-profile solution for partitions, railings, windbreaks and other architectural glass installations. Stainless steel or powder-painted zinc finishes increase durability for exterior applications.
Replacement screws: CRL Cat. No. ZCS5X15BR. For fastening the Z-clamp to thin-wall tubing (less than 1/8”), use CRL
ZB0LT Socket Head Cap Bolt and
ZRNUT Rivet-Nut. Installation: drill a 17/32" (13.5 mm) hole, then install the Rivet-Nut using the 34604 Heavy-Duty Thread Insert tool with the 34618 5/16” mandrel and nosepiece.
Note: a 1/2" (12 mm) hole is required if using the included steel pin for added glass support.
SPECIFICATIONS:
Glass Thicknesses: Models for 1/4" to 1/2" (6 to 12 mm)
Base Design: Flat
For Use With: Square tubing or other flat surfaces
Material: Zinc or stainless steel (stainless/powder-painted zinc recommended for exterior use)
Glass Fabrication: For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) glass: use 1/2" (12 mm) diameter hole if using the provided steel pin. For 1/2" (12 mm) glass: use 9/16" (14 mm) diameter hole if using the provided steel pin.
Includes: Rubber gaskets and steel pin (optional use) with grommet
Product Warning:
For interior installations, CRL recommends pinning each glass panel when the panel is not supported from the bottom edge to prevent slippage. Rubber gaskets and steel pins are provided with each clamp.
