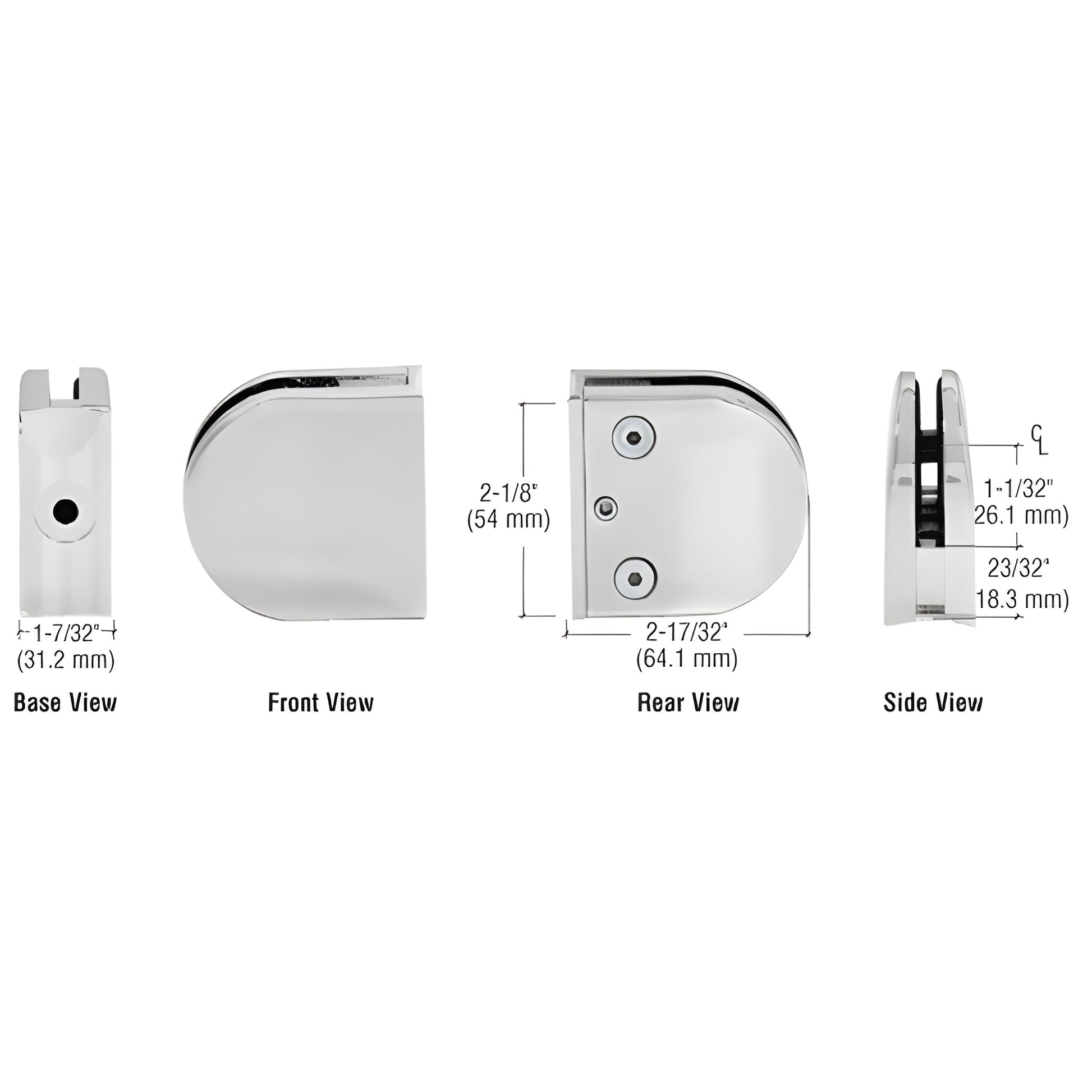

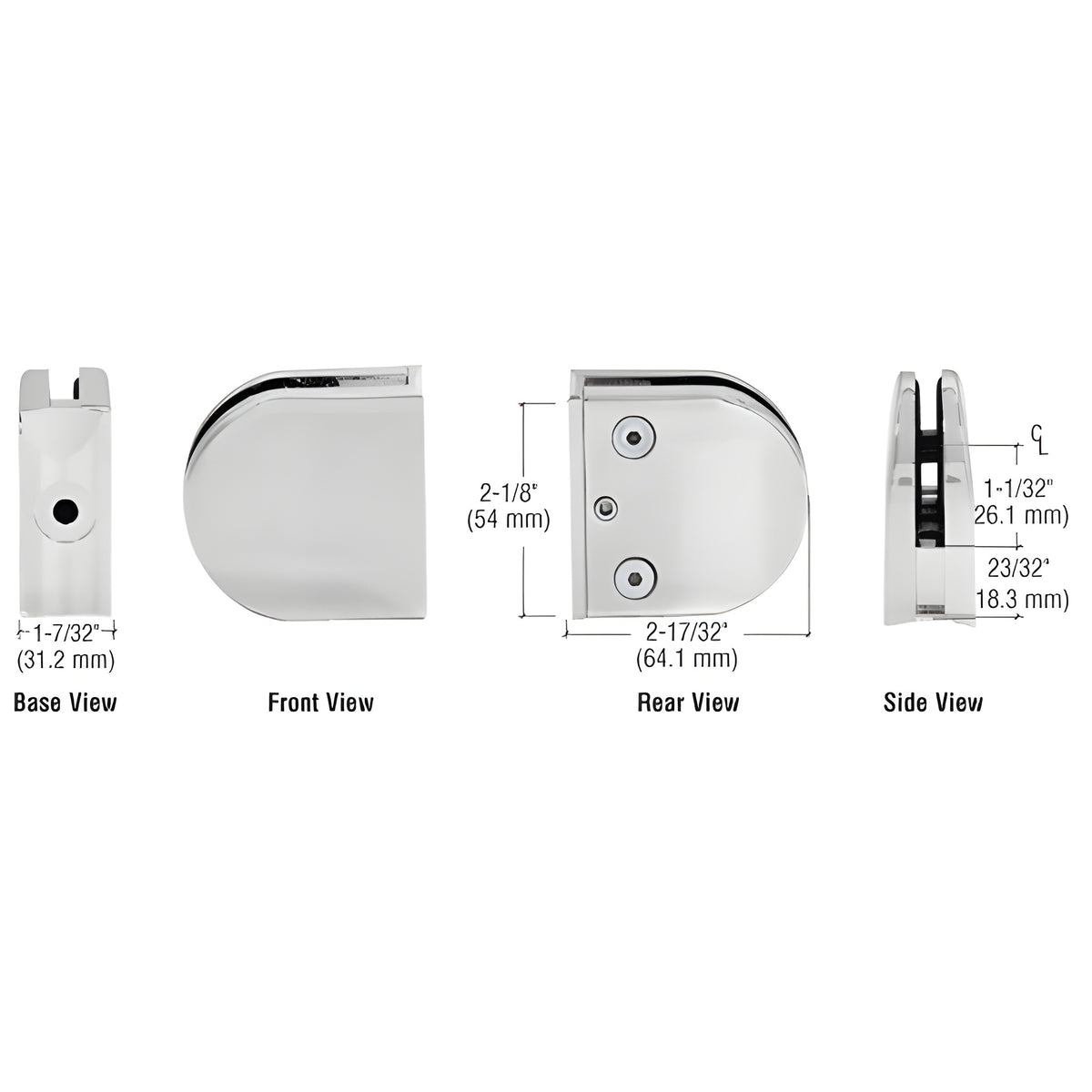

CRL Z-Series Satin Chrome Round Zinc Clamp 2" Radius for 1/2" Glass

• For 1/2" (12 mm) glass
• Use on mezzanines, partitions, railings and windbreaks
• Designed for monolithic tempered glass
• Steel pin included for optional additional glass support
• Tested and engineered to meet and exceed code standards
• Custom painted finishes available upon request

Our CRL Z-Series Round Type Radius Base Glass Clamps (Z212SC) accept glass from 1/4" to 1/2" (6–12 mm) and are available in zinc or stainless steel. These radius-base glass clamps are ideal for partitions, railing systems, windbreaks and other architectural applications where a compact round clamp for 1/2 inch glass is required.

For securing the Z-clamp to thin-wall tubing (less than 1/8"), use CRL ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. Drill a 17/32” (13.5 mm) hole, then install the rivet-nut using the 34604 Heavy-Duty Thread Insert tool with the 34618 5/16” mandrel and nosepiece.

NOTE: A 1/2" (12 mm) notch is required when using the included steel pin for additional glass support.

SPECIFICATIONS:

• Glass Thickness: For 1/2" (12 mm) glass (fits 1/4"–1/2" panels as noted)
• Base Design: Radius
• Compatible Tubing: 1-1/2" or 2" (38 or 50.8 mm) diameter round tubing
• Material: Zinc or Stainless Steel. Stainless steel or powder-painted zinc recommended for exterior durability
• Glass Fabrication:
  • For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) glass: 1/2" (12 mm) notch required if using the steel pin
  • For 1/2" (12 mm) glass: 9/16" (14 mm) diameter hole required if using the steel pin
• Includes: Rubber gaskets and steel pin with grommet
• Replacement Hardware: Replacement screws CRL ZCS5X15SS; replacement gaskets CRL Cat. No. Z12RG
