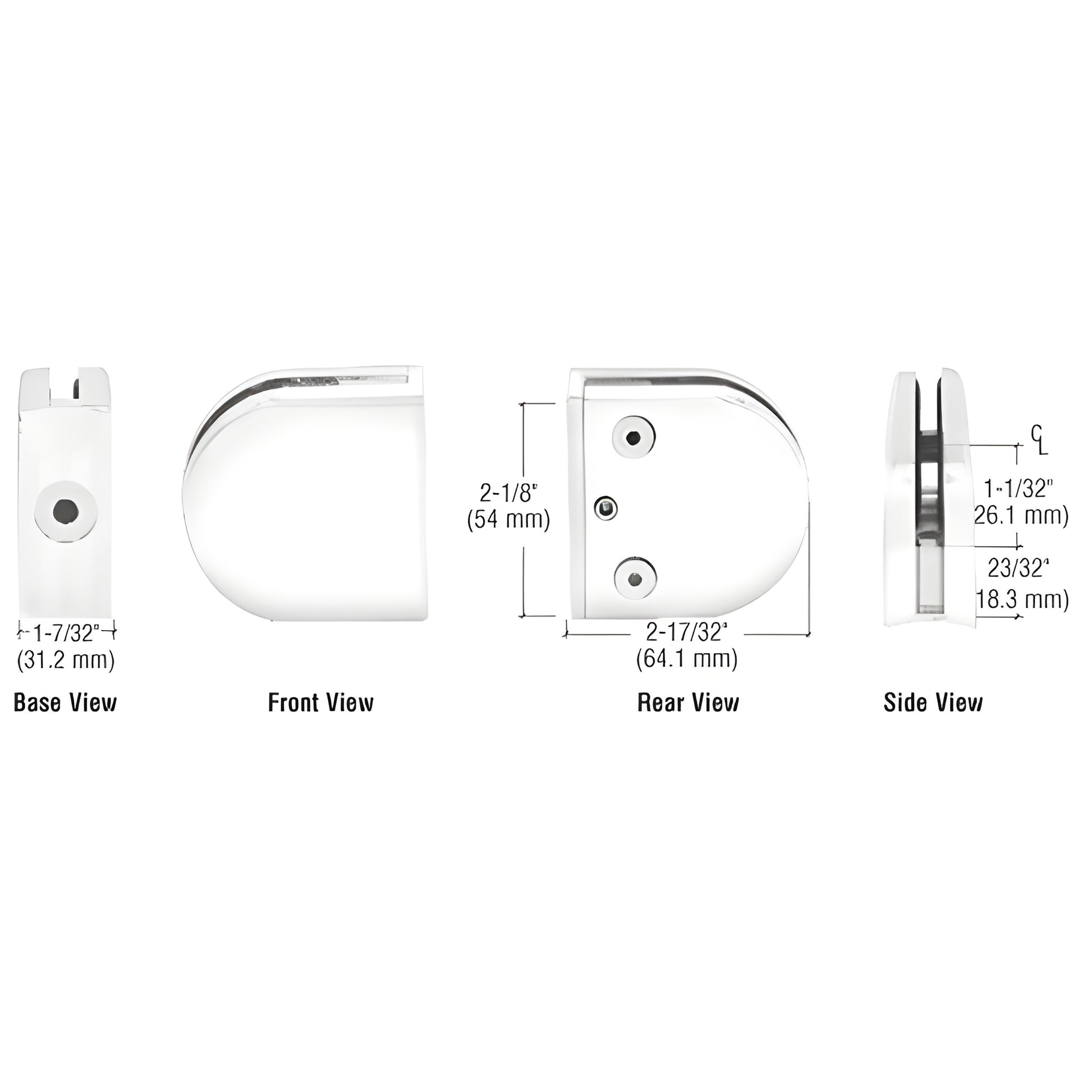

CRL Z-Series White Zinc Glass Clamp, 2in Radius Base for 1/2in Glass

• For 1/2" (12 mm) glass
• Ideal for mezzanines, partitions, railings and windbreaks
• Use with monolithic tempered glass
• Steel pin included for additional glass support (notch/hole required)
• Tested and engineered to meet and exceed code standards
• Custom painted finishes available on request

SKU: Z212W

Our CRL Z-Series Round Type Radius Base Glass Clamps are engineered for 1/4" to 1/2" (6–12 mm) glass and are available in zinc or stainless steel. These round radius-base glass clamps are a dependable solution for partitions, railings, mezzanine guardrails and exterior windbreak applications where a durable, code-compliant clamp is required.

Installation notes: For securing the Z-Clamp to thin-wall tubing (< 1/8”), use CRL ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. Drill a 17/32” (13.5 mm) hole, then install the rivet-nut with the 34604 Heavy-Duty Thread Insert tool and 34618 5/16” mandrel and nosepiece.

NOTE: A 1/2" (12 mm) notch is required if using the provided steel pin for additional glass support.

SPECIFICATIONS

• Glass thickness: For 1/2" (12 mm) — compatible with 1/4" (6 mm), 5/16" (8 mm), 3/8" (10 mm) and 1/2" (12 mm) glass when properly notched or drilled per instructions
• Base design: Radius
• For use with: 1-1/2" or 2" (38 or 50.8 mm) diameter round tubing
• Material: Zinc or stainless steel. Recommend stainless steel or powder painted zinc for exterior durability
• Glass fabrication:
  • For 1/4", 5/16", 3/8" glass: 1/2" (12 mm) notch required if using provided steel pin
  • For 1/2" glass: 9/16" (14 mm) diameter hole required if using provided steel pin
• Includes: Rubber gaskets and steel pin with grommet
• Replacement hardware: Replacement screws: CRL ZCS5X5SS. Replacement gaskets: CRL Cat. No. Z12RG.

Product warning: For interior applications where the glass is not supported at the bottom edge, CRL recommends pinning each glass panel to prevent sl
