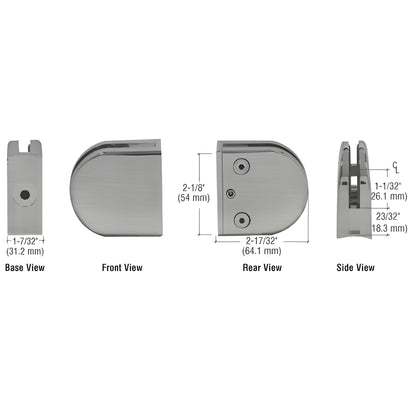

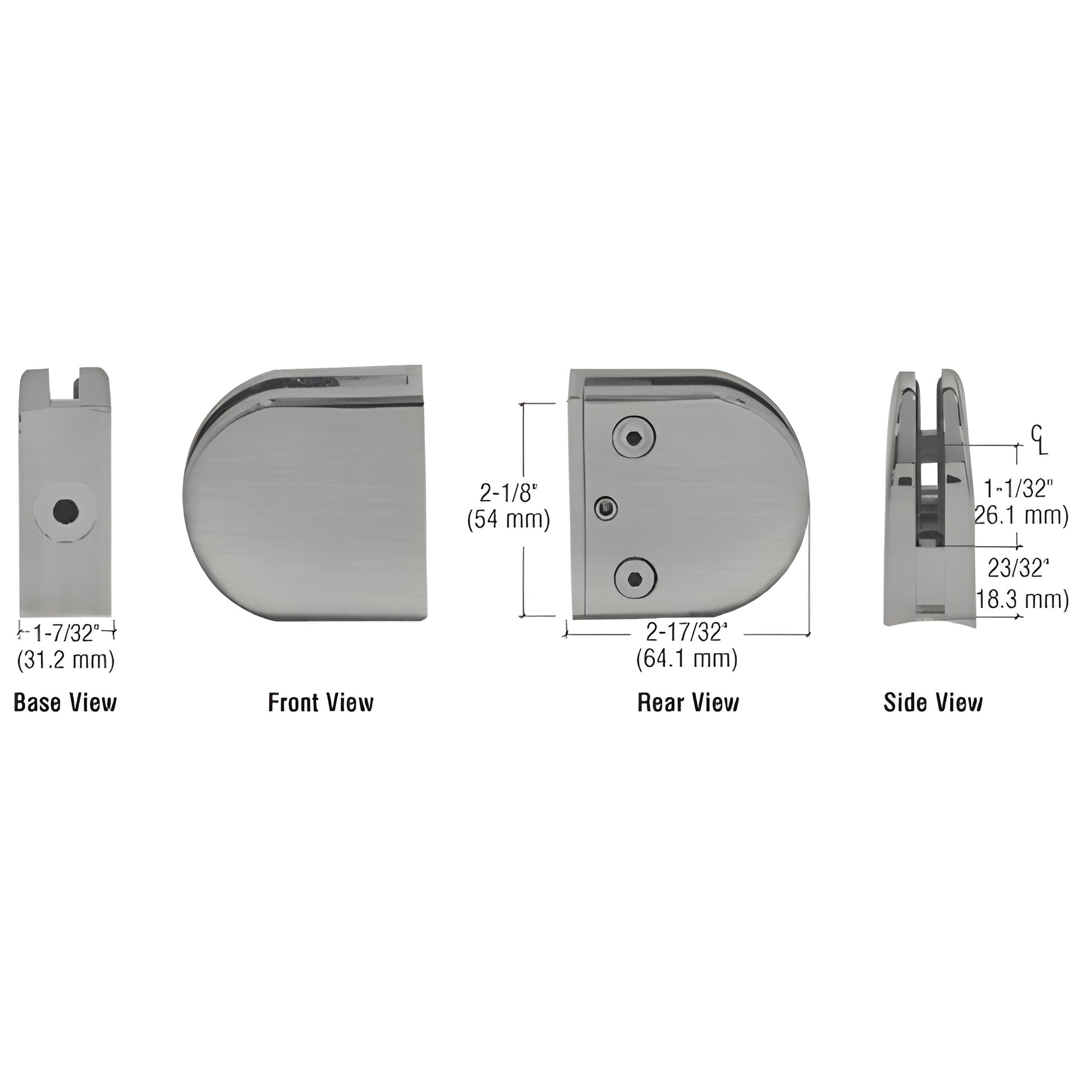

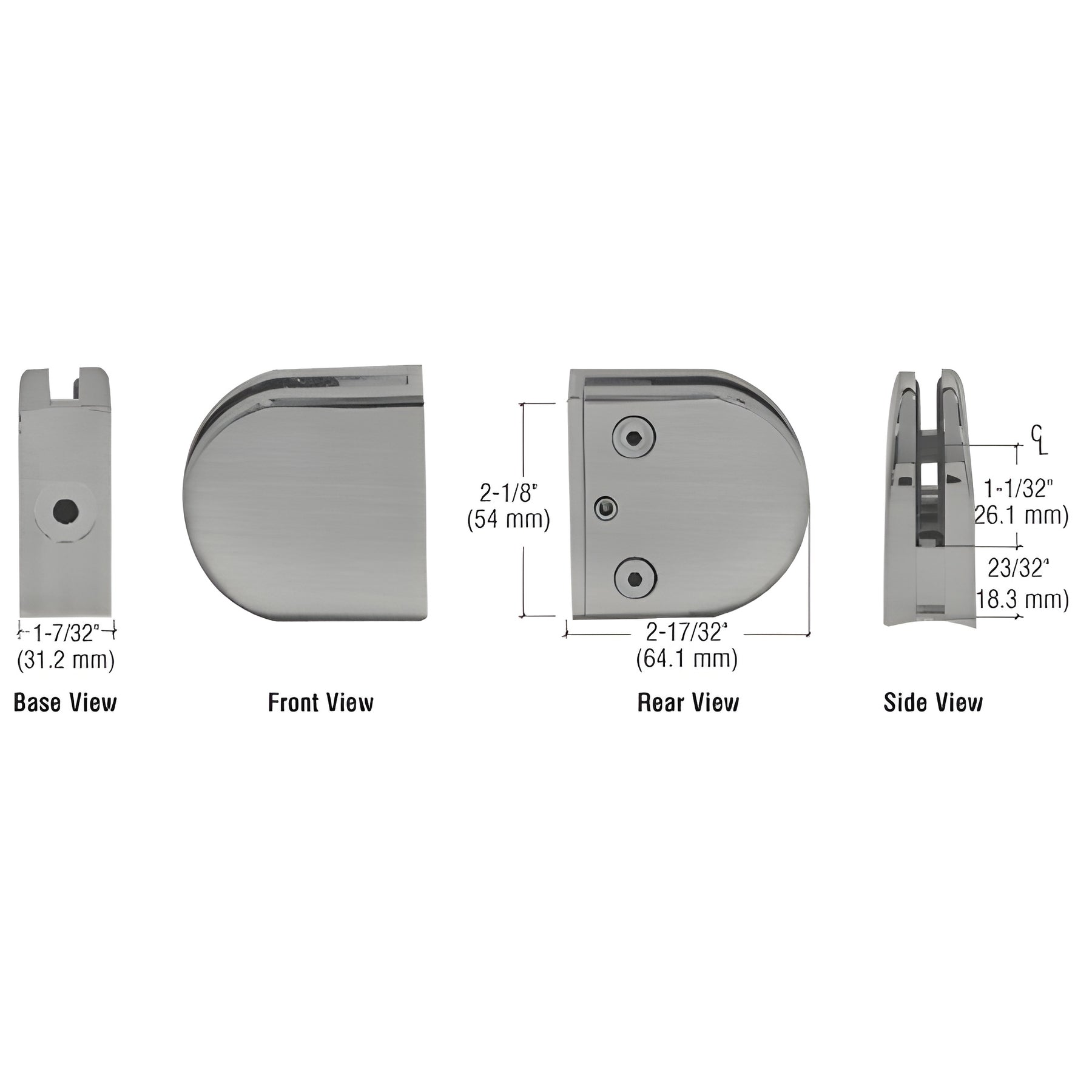

CRL Z-Series Brushed Nickel Round Radius-Base Glass Clamp 1/2"

• For 1/2" (12 mm) glass
• Ideal for mezzanines, partitions, railings and windbreaks
• Use monolithic tempered glass
• Steel pin included for optional additional glass support
• Tested and engineered to meet and exceed code standards
• Custom painted finishes available upon request

Our CRL Z-Series Round Type Radius Base Glass Clamps (SKU: Z212BN) are engineered for 1/4" to 1/2" (6–12 mm) glass and offered in zinc or stainless steel. These radius-base clamps provide a low-profile, secure mounting solution for partitions, mezzanine guardrails, windbreaks and other architectural glass railing projects.

For securing the Z-clamp to thin-wall tubing (< 1/8"), use CRL’s ZB0LT socket head cap bolt with ZRNUT rivet-nut. Drill a 17/32" (13.5 mm) hole and install the rivet-nut using the 34604 heavy-duty thread insert tool with the 34618 5/16" mandrel and nosepiece.

NOTE: A 1/2" (12 mm) notch is required if using the included steel pin for additional glass support.

SPECIFICATIONS:

• Glass thickness: For 1/2" (12 mm) — compatible with 1/4" (6 mm), 5/16" (8 mm), 3/8" (10 mm) and 1/2" (12 mm) glass when fabricated per notes below
• Base design: Radius, round type
• For use with: 1-1/2" or 2" (38 or 50.8 mm) diameter round tubing
• Material options: Zinc construction or stainless steel; stainless or powder-painted zinc recommended for exterior durability
• Glass fabrication:
  • For 1/4" (6 mm), 5/16" (8 mm), 3/8" (10 mm): 1/2" (12 mm) notch required if using provided steel pin
  • For 1/2" (12 mm): 9/16" (14 mm) diameter hole required if using provided steel pin
• Includes: Rubber gaskets and steel pin with grommet (optional use)
• Replacement hardware: Screws: CRL ZCS5X5SS; Replacement gaskets: CRL Cat. No. Z12RG

Product warning: For interior installations where the glass is not supported at the bottom edge, CRL recommends pinning each glass panel
