CRL Z-Series Brushed Nickel Square Radius Clamp for 1/2" Glass

• For 1/2" (12 mm) Glass
• Replacement Gaskets available: Cat. No. Z712SG
• Use on mezzanines, partitions, railings and windbreaks
• Use monolithic tempered glass
• Steel pin included for additional glass support
• Custom painted finishes available upon request

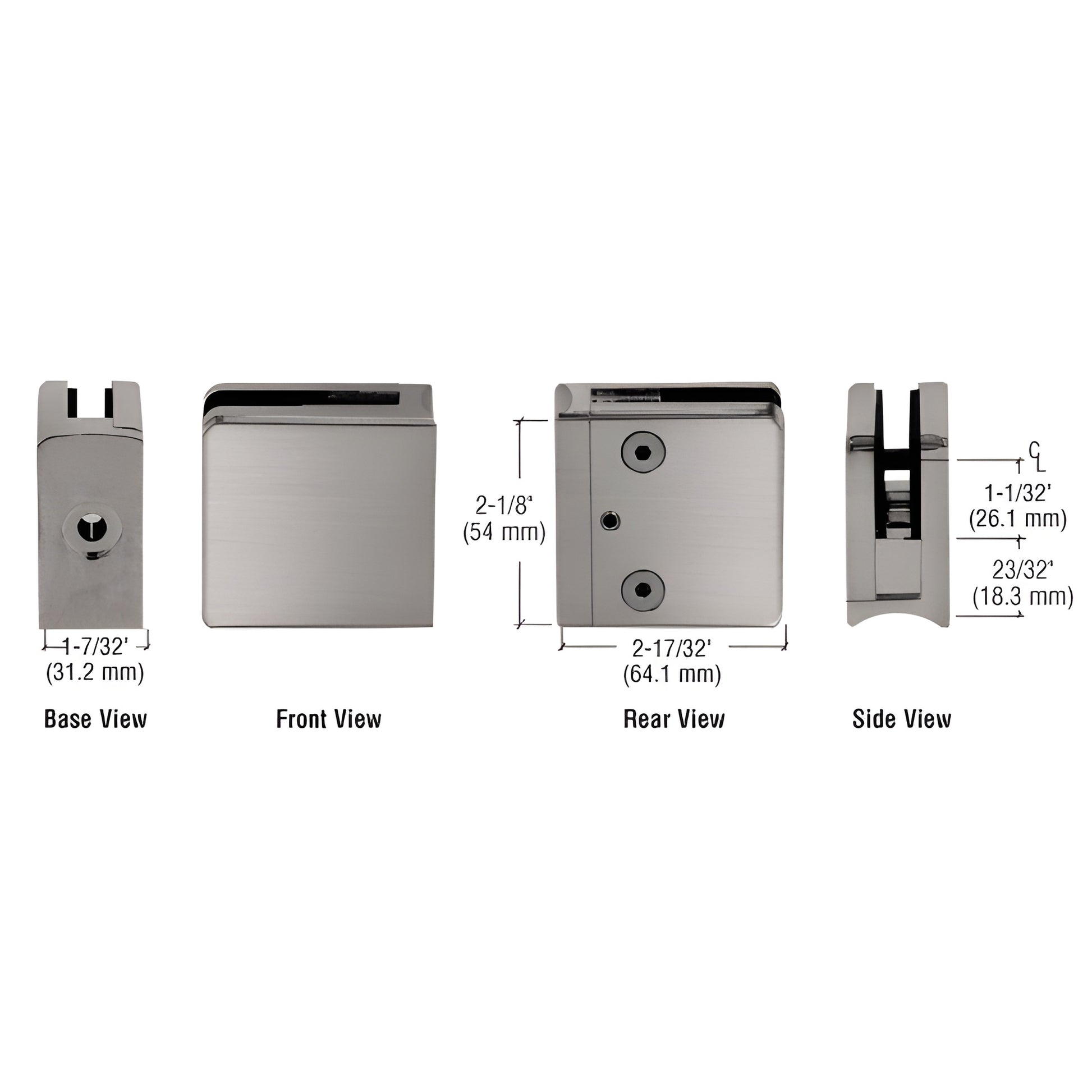

CRL Z-Series Square Type Radius Base Glass Clamp (SKU: Z612BN) is engineered for 1/2" (12 mm) glass. Available in zinc or stainless steel, this radius-base clamp secures tempered glass to 2" (51 mm) diameter round tubing and is ideal for partitions, railings, mezzanines and exterior windbreak applications.

For mounting to thin-wall tubing (< 1/8"), use CRL’s ZB0LT socket head cap bolt with ZRNUT rivet-nut. Drill a 17/32" (13.5 mm) hole and install the rivet-nut with the 34604 heavy-duty thread insert tool and 34618 5/16" mandrel and nosepiece.

NOTE: A 1/2" (12 mm) hole is required when using the included steel pin for added glass support.

SPECIFICATIONS

• Glass Thickness: For 1/2" (12 mm) glass
• Base Design: Radius
• For Use With: 2" (51 mm) diameter round tubing only
• Material: Zinc or stainless steel (stainless or powder-painted zinc recommended for exterior durability)
• Glass Fabrication:
  • For 1/4" (6 mm), 5/16" (8 mm) and 3/8" (10 mm) thick glass: 1/2" (12 mm) diameter hole required if using the steel pin
  • For 1/2" (12 mm) thick glass: 9/16" (14 mm) diameter hole required if using the steel pin
• Includes: Rubber gaskets and steel pin with grommet
• Replacement Hardware: CRL ZCS5X5SS replacement screws

Product Warning:

For interior installations where the glass is not supported from the bottom edge, CRL recommends
