CRL Polished Stainless Steel Z-Series Square Type Flat Base Zinc Clamp for 3/8" and 1/2" Glass with Repositionable Plate
Item # ZL910PS
$59.70
CAD
Finish (2)
-
Brushed Stainless Steel -
Polished Stainless Steel
Profile (2)
- Square
- Round
Base Type (2)
- Flat
- Radius
Overview

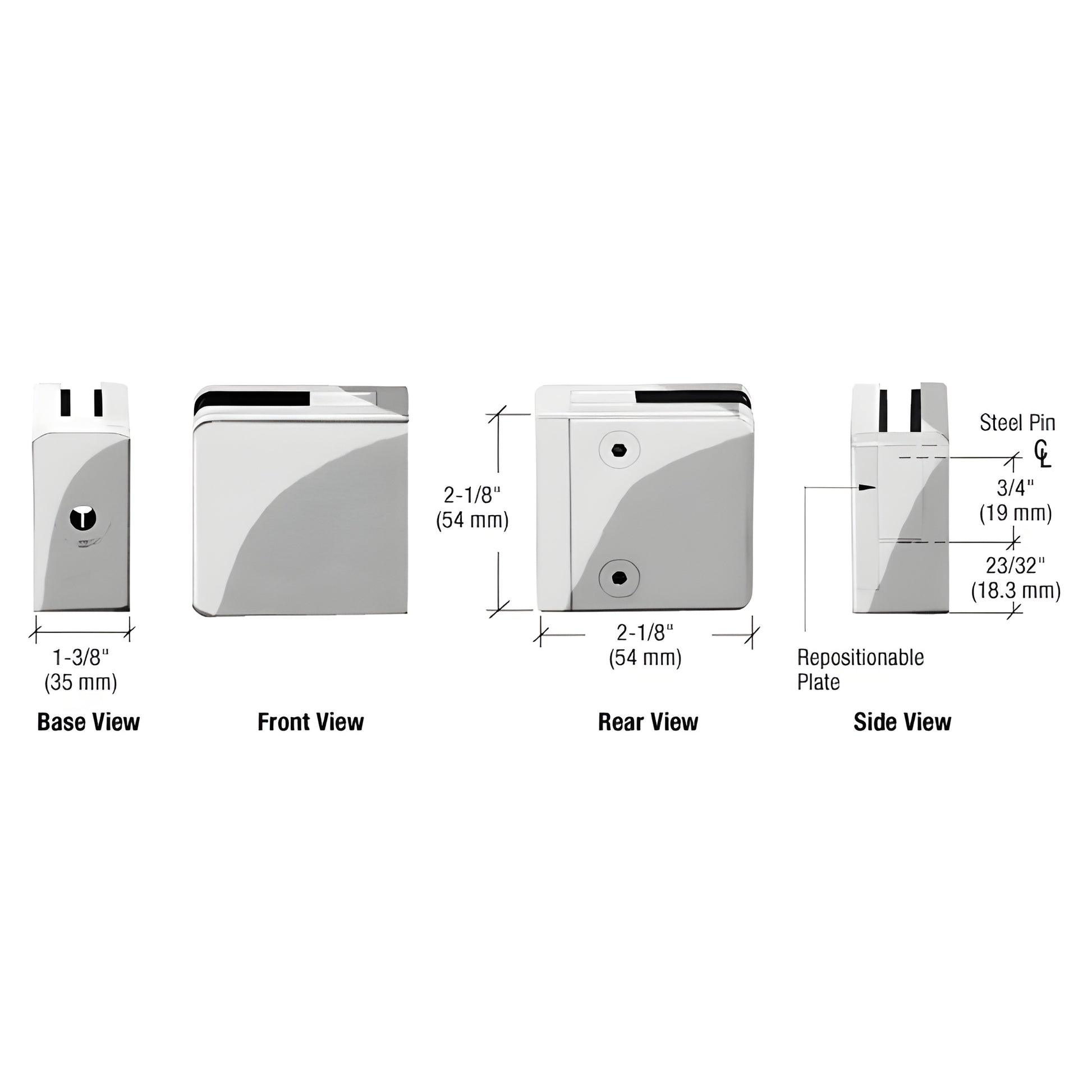

| SKU | ZL910PS |
|---|---|
| Sold As | 1 Each |
| Base Type | Flat |
| Depth | 1-3/32 in. (28 mm) |
| Finish/Color | Polished Stainless Steel |
| Glazing Thickness | 3/8 in. & 1/2 in. (10 mm To 12 mm) |
| Height | 2-1/8 in. (54 mm) |
| Material | Stainless Steel 316 Alloy |
| Profile | Square |
| Width | 2-1/8 in. (54 mm) |
Description
- Repositionable Plate for Use at Right or Left Corner of Glass
- For Use with Square Tubing or Other Flat Surfaces
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Use Monolithic Tempered Glass
This CRL Z-Series Square Type Flat Base Glass Clamp with Repositionable Plate is designed to be used on glass thickness of 3/8" or 1/2" (10 or 12 mm). The flat base allows for installation onto square tubing or other flat surfaces. Material is constructed of 316 Stainless Steel.
Note: Replacement screws are available by ordering CRL Cat. No. ZCS5X15SS & for Replacement gaskets order CRL Cat. No. ZL38SG
SPECIFICATIONS:
For 3/8" (10 mm) Thick Glass: 1/2" (12 mm) diameter hole required if using provided steel pin for glass support.
For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.Specifications
Brochures & Literature
Templates
Cleaning & Maintenance
