CRL Z-Series Stainless Steel Square Radius Glass Clamp 3/8-1/2"

CRL Z-Series Stainless Steel Square Radius Glass Clamp 3/8-1/2"

$59.96 CAD
$59.96 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# ZL710PS
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

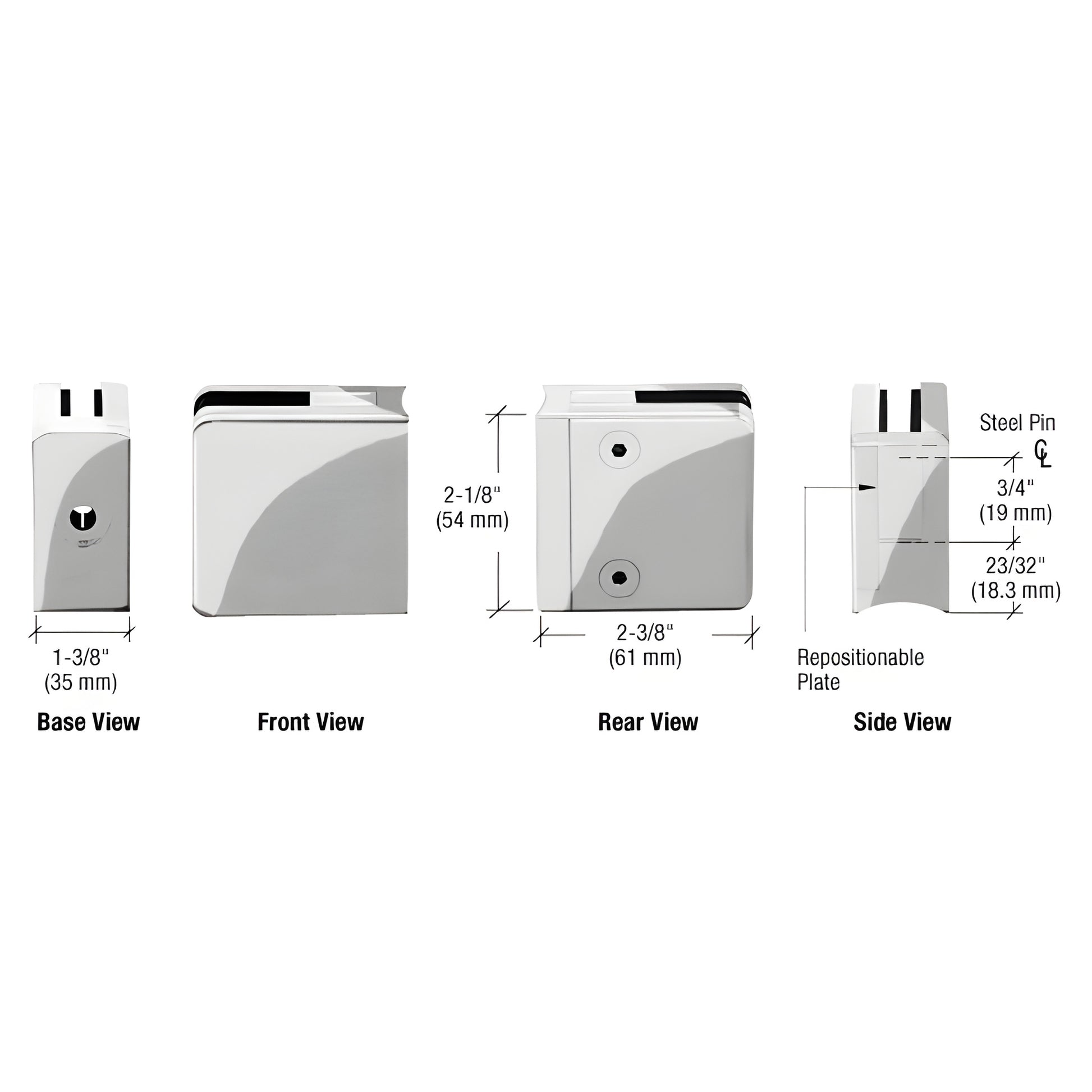

Product Information

Description

Base Type
Radius
Depth
1-3/32 in. (28 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. & 1/2 in. (10 mm To 12 mm)
Height
2-3/8 in. (60 mm)
Material
Zinc
Profile
Square
Width
2-1/8 in. (54 mm)

Overview

  • Repositionable plate for use at right or left corner of glass
  • For use with 2" (51 mm) diameter round tubing
  • For 3/8" or 1/2" (10 or 12 mm) glass
  • Radius surface mounting
  • Use monolithic tempered glass

CRL Z-Series Square Type Radius Base Glass Clamp – SKU: ZL710PS
Designed for 3/8" (10 mm) and 1/2" (12.7 mm) tempered glass, this stainless steel radius base glass clamp provides a durable, corrosion-resistant solution for glass partitions, railings, windbreaks and other architectural glass projects. Ideal as a stainless steel glass clamp for round tubing, the repositionable plate fits either right or left corners for flexible installation.


Note: Replacement screws: CRL Cat. No. ZCS5X15SS. Replacement gaskets: CRL Cat. No. ZL38SG.


SPECIFICATIONS:
Glass Thickness: 3/8" or 1/2" (10 or 12 mm).
Base Design: Radius.
For Use With: 2" (51 mm) diameter round tubing.
Material: Stainless steel.
Glass Fabrication:
For 3/8" (10 mm) thick glass: 1/2" (12 mm) diameter hole required if using the provided steel pin for glass support.
For 1/2" (12 mm) thick glass: 9/16" (14 mm) diameter hole required if using the provided steel pin for glass support.
Includes: Repositionable plate for use at right or left corner of glass.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary depending on monitor settings.

Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for more details.
