Most shipping weights are approximate and have not been verified. If exact weight (and shipping costs) is required to complete your order, contact CRL Customer Service prior to submitting your order. Product images are of the actual product or a close representation; colors may vary by monitor.
CRL
CRL Z-Series Brushed SS Glass Clamp, Adj Plate, Fits 3/8 & 1/2
CRL Z-Series Brushed SS Glass Clamp, Adj Plate, Fits 3/8 & 1/2
Regular price
$63.48 CAD
Regular price
Sale price
$63.48 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# ZL710BS
Shipping Weight: 1.06 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.06 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

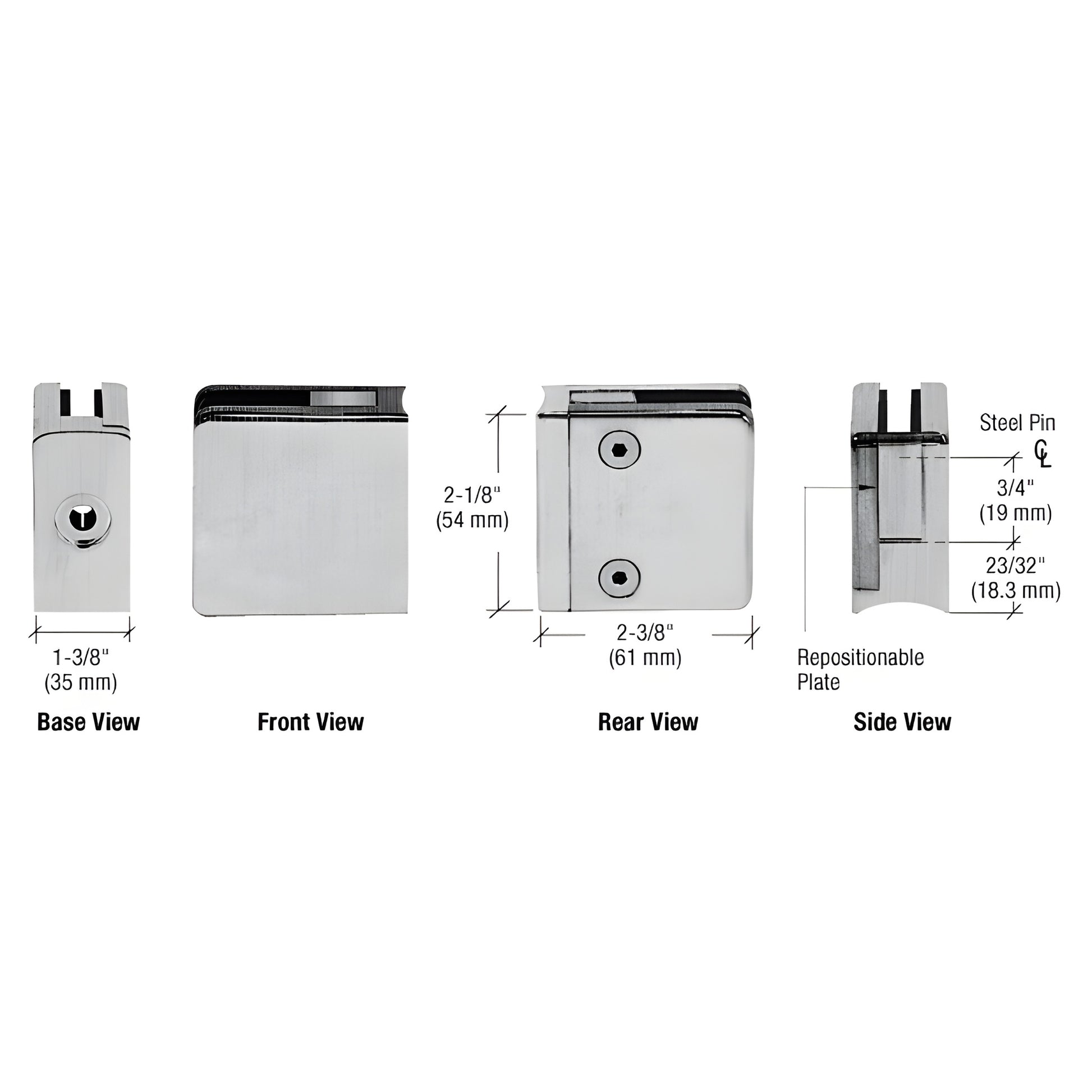

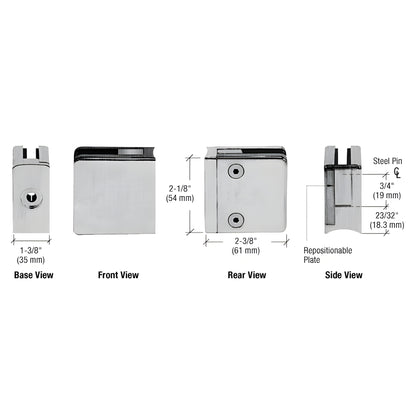

Description
Base Type
Radius
Depth
1-3/32 in. (28 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. & 1/2 in. (10 mm To 12 mm)
Height
2-3/8 in. (60 mm)
Material
Zinc
Profile
Square
Width
2-1/8 in. (54 mm)
Overview
- Repositionable plate for right- or left-corner mounting on glass
- Compatible with 2" (51 mm) diameter round tubing
- Fits 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
- Radius surface-mount base design
This CRL Z-Series Square Type Radius Base Glass Clamp with Repositionable Plate (SKU: ZL710BS) is stainless steel and engineered for durable, attractive support of partitions, railings, windbreaks and other architectural glass installations. The repositionable plate lets you mount the clamp at either the right or left corner of the glass for flexible installation.
Note: Replacement screws: CRL Cat. No. ZCS5X15SS. Replacement gaskets: CRL Cat. No. ZL38SG.
SPECIFICATIONS:
Glass Thickness: 3/8" or 1/2" (10 or 12 mm)
Base Design: Radius surface-mount
For Use With: 2" (51 mm) diameter round tubing
Material: Stainless steel (recommended periodic maintenance to preserve finish)
Glass Fabrication:
For 3/8" (10 mm) glass: 1/2" (12 mm) diameter hole required if using provided steel pin for glass support.
For 1/2" (12 mm) glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support.
Includes: Repositionable plate for right- or left-corner use on glass.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to help maintain the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order the ZL710BS stainless steel radius base glass clamp for reliable, corner-ready glass mounting—contact or add to cart now.
