CRL Z-Series Brushed Stainless Glass Clamp Flat Base for 3/8" & 1/2"
CRL Z-Series Brushed Stainless Glass Clamp Flat Base for 3/8" & 1/2"
Regular price
$59.96 CAD
Regular price
Sale price
$59.96 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# ZL910BS
Shipping Weight: 15.52 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 15.52 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

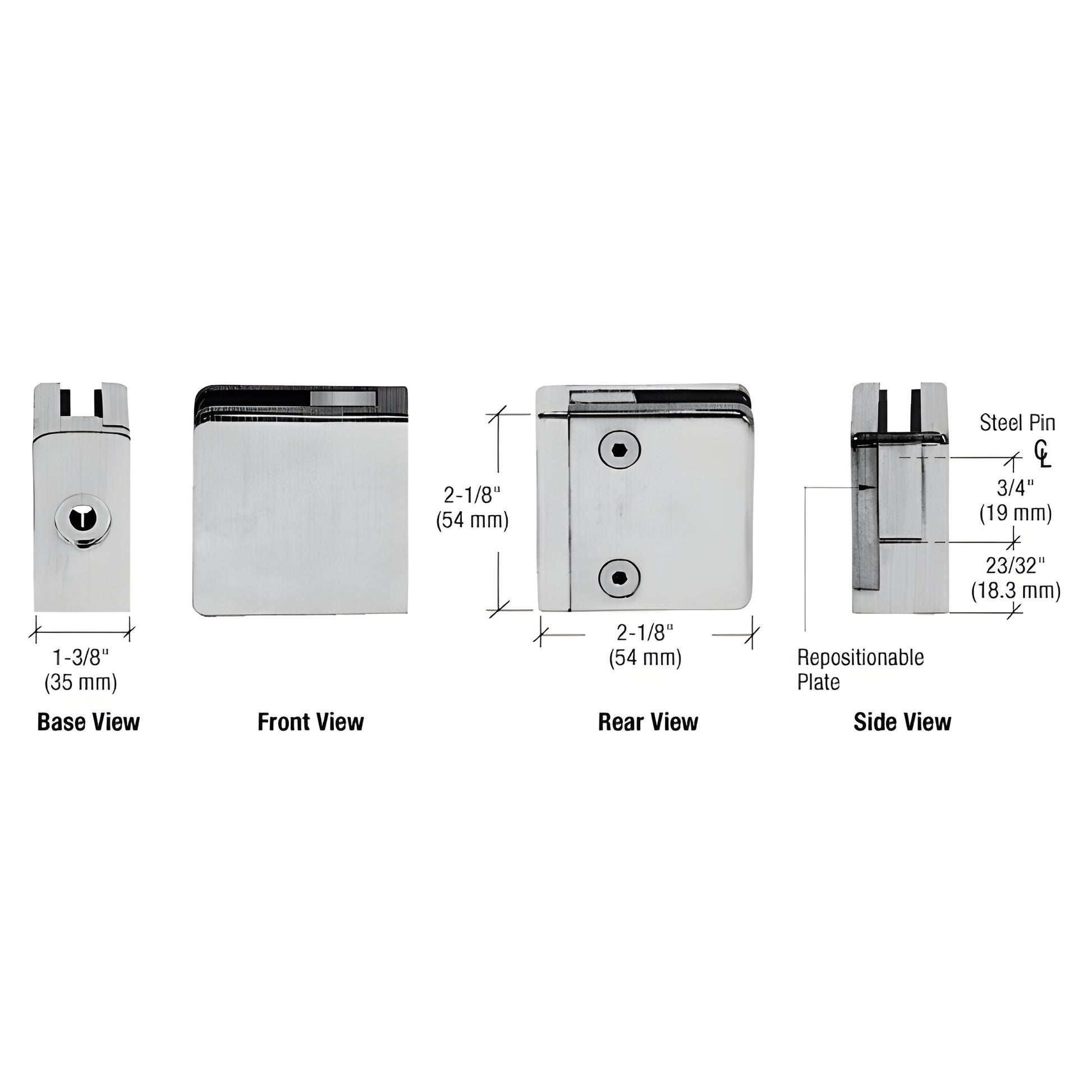

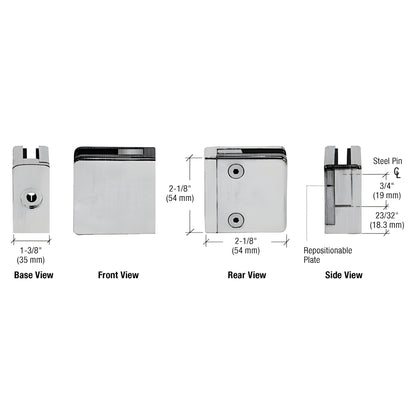

Description
Base Type
Flat
Depth
1-3/32 in. (28 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. & 1/2 in. (10 mm To 12 mm)
Height
2-1/8 in. (54 mm)
Material
Stainless Steel 316 Alloy
Profile
Square
Width
2-1/8 in. (54 mm)
Overview
- Repositionable plate for use at right or left corner of glass
- Mounts to square tubing or other flat surfaces
- For 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
CRL Z-Series Square-Type Flat Base Glass Clamp with Repositionable Plate (SKU: ZL910BS) is a 316 stainless steel glass clamp designed for securing 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass. The flat base installs onto square tubing or other flat surfaces; the repositionable plate enables right- or left-corner mounting for versatile glass railing and balustrade applications.
Note: Replacement screws — CRL Cat. No. ZCS5X15SS. Replacement gaskets — CRL Cat. No. ZL38SG.
SPECIFICATIONS:
- Glass thickness: 3/8" or 1/2" (10 or 12 mm)
- For use with: flat surfaces and square tubing
- Material: 316 stainless steel alloy (corrosion-resistant)
- Fabrication / hole requirements:
- 3/8" (10 mm) glass: 1/2" (12 mm) diameter hole required if using provided steel pin for glass support
- 1/2" (12 mm) glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support
- Includes: repositionable plate (ZL series only)
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Ideal for glass railing and balustrade installations requiring a flat-base clamp that fits square tubing—order ZL910BS today to secure tempered glass with a repositionable corner plate.
