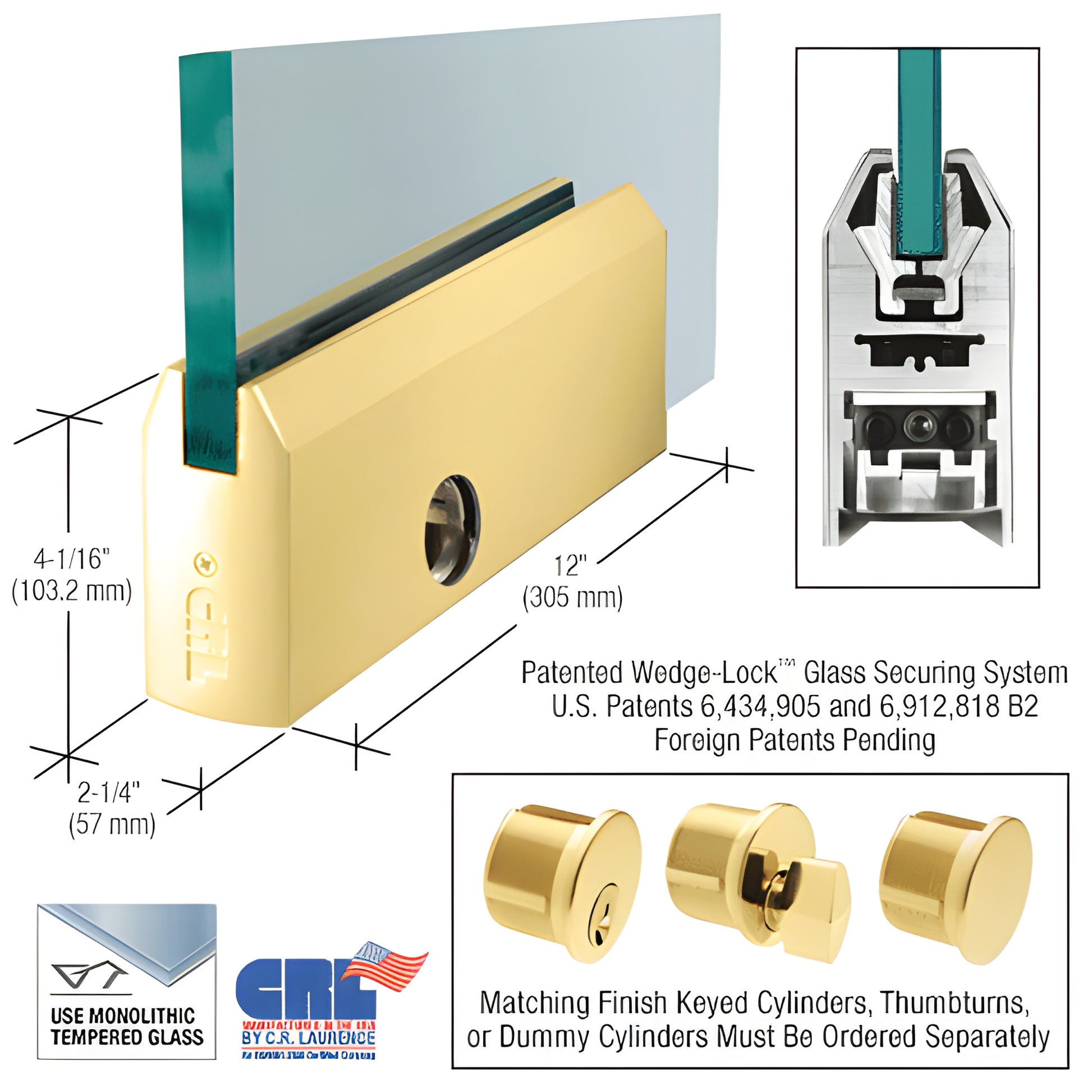

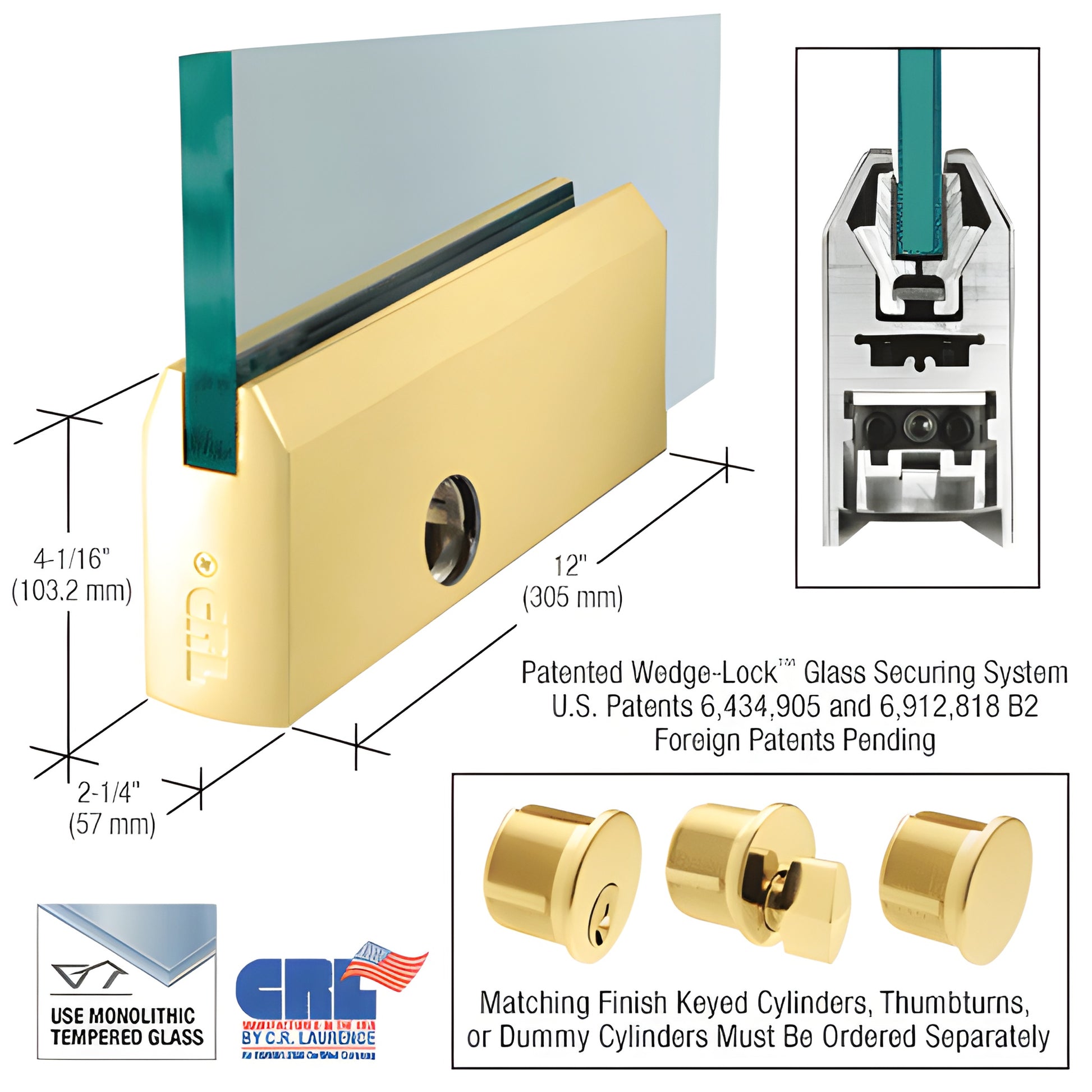

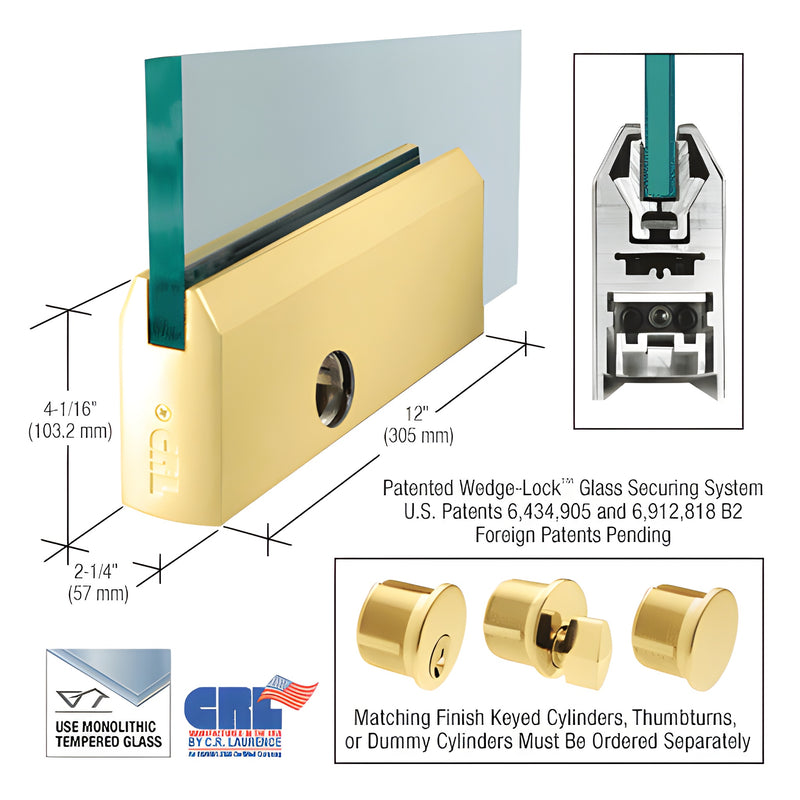

Polished Brass 12 in Tapered DRS Door Rail w/ Lock for 3/4 in Glass

• 12" (305 mm) Length for 3/4" (19 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System — Models to Fit 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

SKU: DR4TPB34PL

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, uses the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). This commercial glass door rail for 3/4" tempered glass secures the glass by applying downward pressure via two glass-retaining aluminum extrusions and a flat stainless steel bar. As the stainless bar is tightened with socket head cap bolts, angled wedges pull the extrusions together to clamp the glass securely — generating very high retention force (more than 900 lbs. in our 9" corner rail).

NOTE: Actual Product Height: 4-1/16" (103 mm)

Key differentiators:

• Fastest installation: Experienced installers can prepare a door for installation in less than ten minutes — rail ships fabricated and ready-to-install with End Caps installed.
• Adjustable Door Alignment System: Built-in adjustable slide (standard on top and bottom rails) provides ±1/8" (3.2 mm) adjustment toward or away from the jamb without removing the door.
• Rigid single-component housing: Not made of two halves — resists shift and loss of adjustment over time.
• Internal components remain installed: No disassembly required before installation; glass pads designed for longevity in extreme environments.
• Built-in Jamb Alignment Block: Standard on all Wedge-Lock® Door Rails (arms and pivots ordered separately).

Installation note: After installing the rail, attach the door arm or pivot (not included) to the preassembled adjustable door alignment slide. To fine-tune after hanging, remove the End Cap to access three socket head cap bolts — center bolt secures the slide; outer bolts adjust the slide 1/8" (3.2 mm) in or out.

Ordering information:

• All door rails include the standard Kwik-Adjust™ Pivot Alignment System. Closer arms and floor or overhead pivots must be ordered separately.
• Models with locks come with the lock mechanism installed. Matching finish keyed cylinders or thumbturns must be ordered separately.
