CRL 18 in Brushed Stainless Glass Door Pull Handle - Mitered Corner
CRL 18 in Brushed Stainless Glass Door Pull Handle - Mitered Corner
Regular price
$128.49 CAD
Regular price
Sale price
$128.49 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# MH18X18BS
Shipping Weight: 2.537 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.537 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. (10 mm)
Mounting Center To Center
18 in. (457 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
Overview
- Fits 3/8" and 3/4" (10 and 19 mm) glass
- Includes mounting hardware (through-bolts, washers, gaskets)
- Available in several sizes and finishes
- Designed for monolithic tempered glass

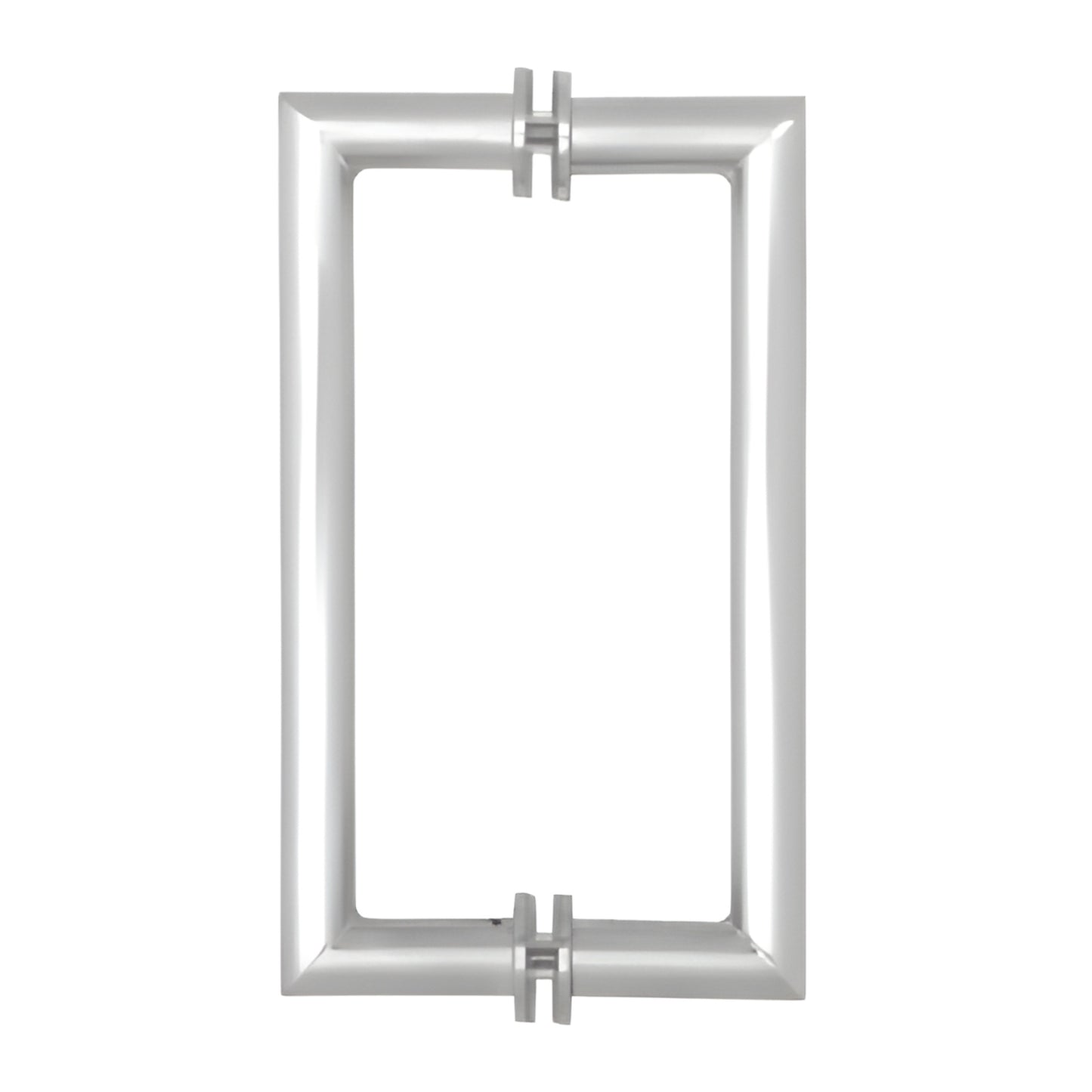

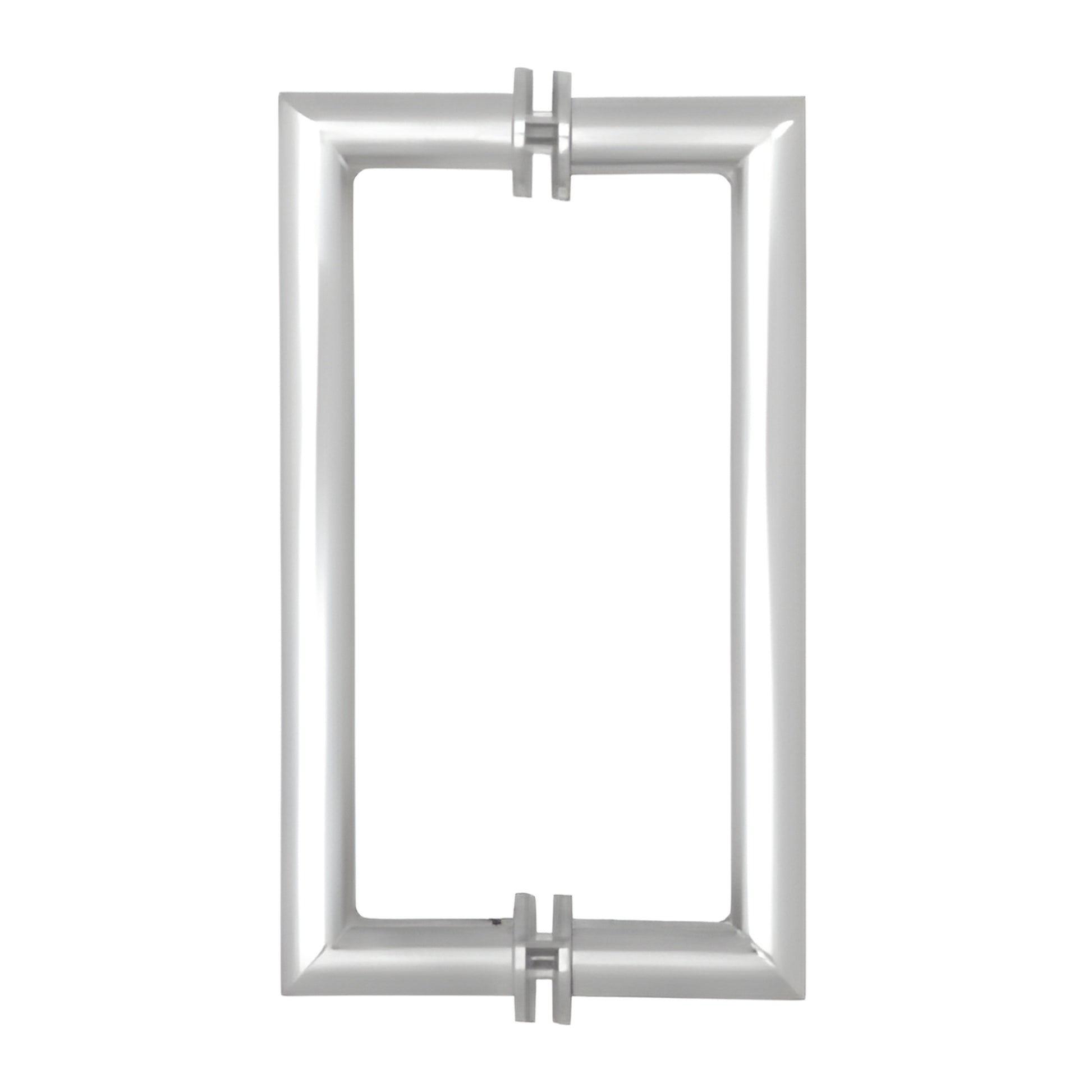

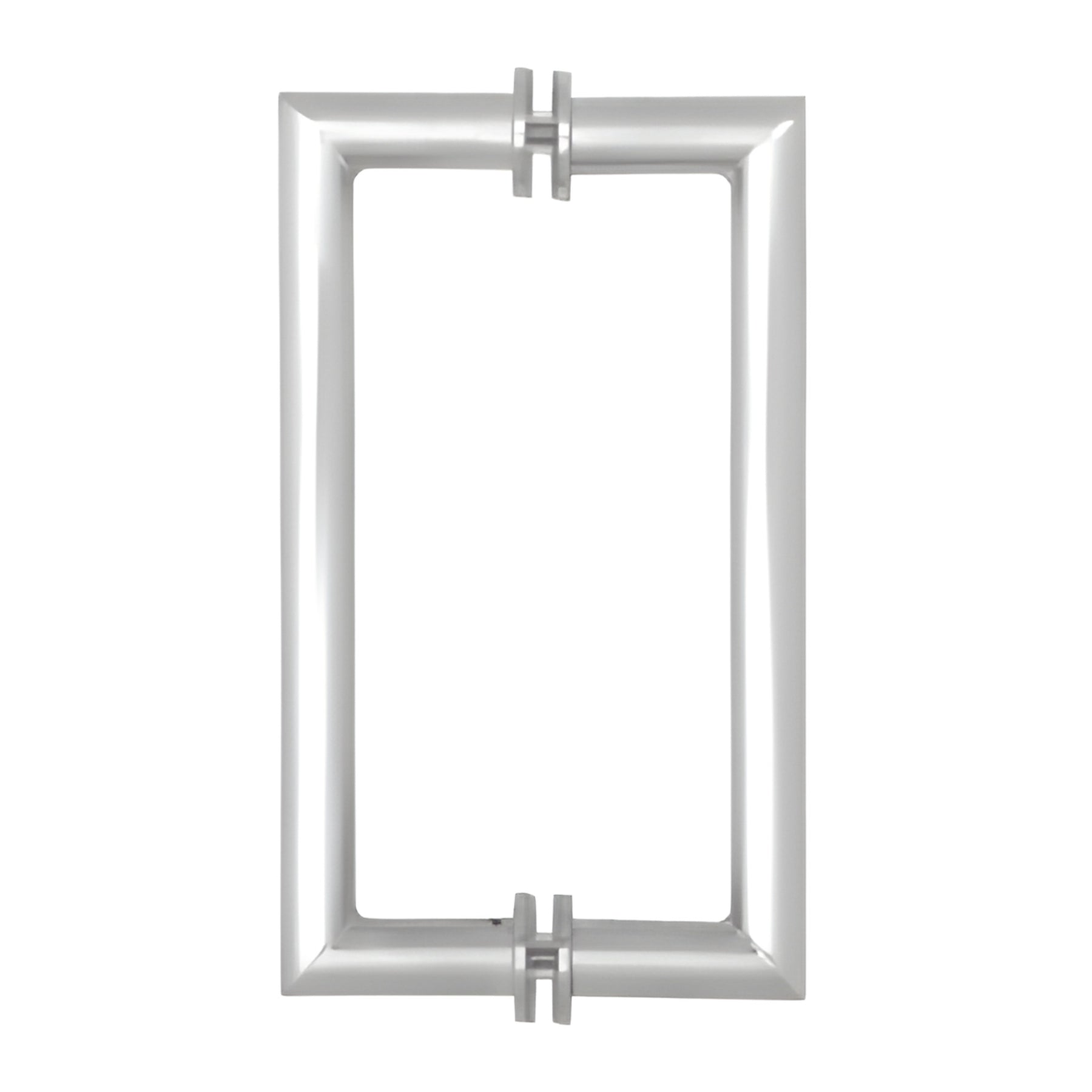

CRL Glass-Mounted Mitered Corner Style Pull Handle — SKU: MH18X18BS Made from 1" (25 mm) round stainless steel tubing, the mitered corners deliver a clean, modern look for all-glass doors. Ideal as a glass door pull handle or mitered corner pull for commercial and residential frameless glass installations.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) glass
Construction: 1" (25 mm) round stainless steel tubing
Glass Fabrication Required: Two 5/8" (16 mm) diameter holes
INCLUDES:
2 each: Through-bolts for glass mounting
4 each: 1-1/4" (32 mm) diameter matching-finish metal washers and rubber gaskets
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order the MH18X18BS mitered corner glass pull handle today to upgrade your frameless glass door with a durable, modern stainless steel finish.
Specifications
CAD Drawings - dwg
