CRL 24" Brushed Stainless Glass Door Pull - Mitered Corner
CRL 24" Brushed Stainless Glass Door Pull - Mitered Corner
Regular price
$160.94 CAD
Regular price
Sale price
$160.94 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# MH24X24BS
Shipping Weight: 3.02 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.02 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. (10 mm)
Mounting Center To Center
24 in. (610 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
Overview
- For 3/8" and 3/4" (10 and 19 mm) glass
- Includes mounting hardware
- Available in several sizes and finishes
- Use monolithic tempered glass

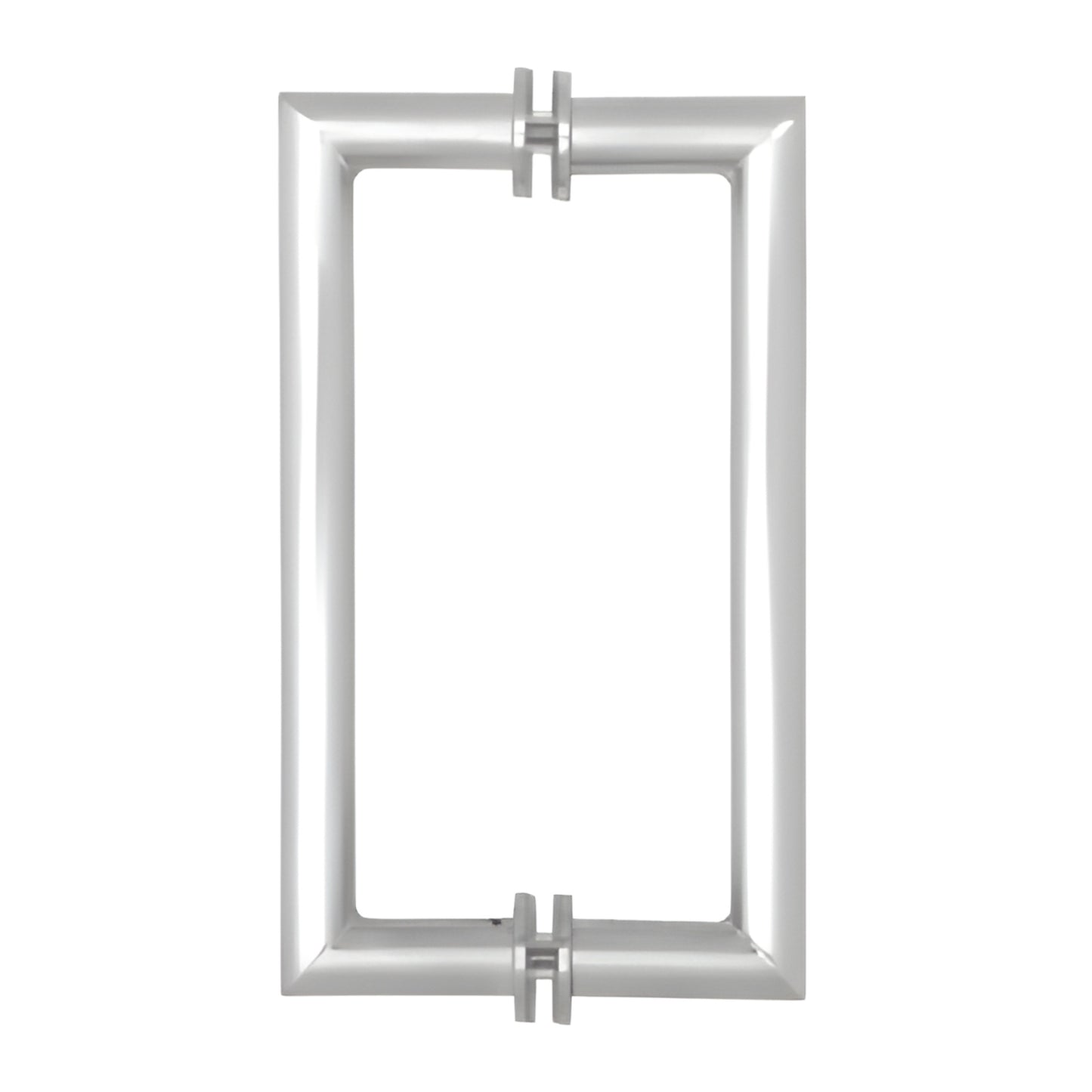

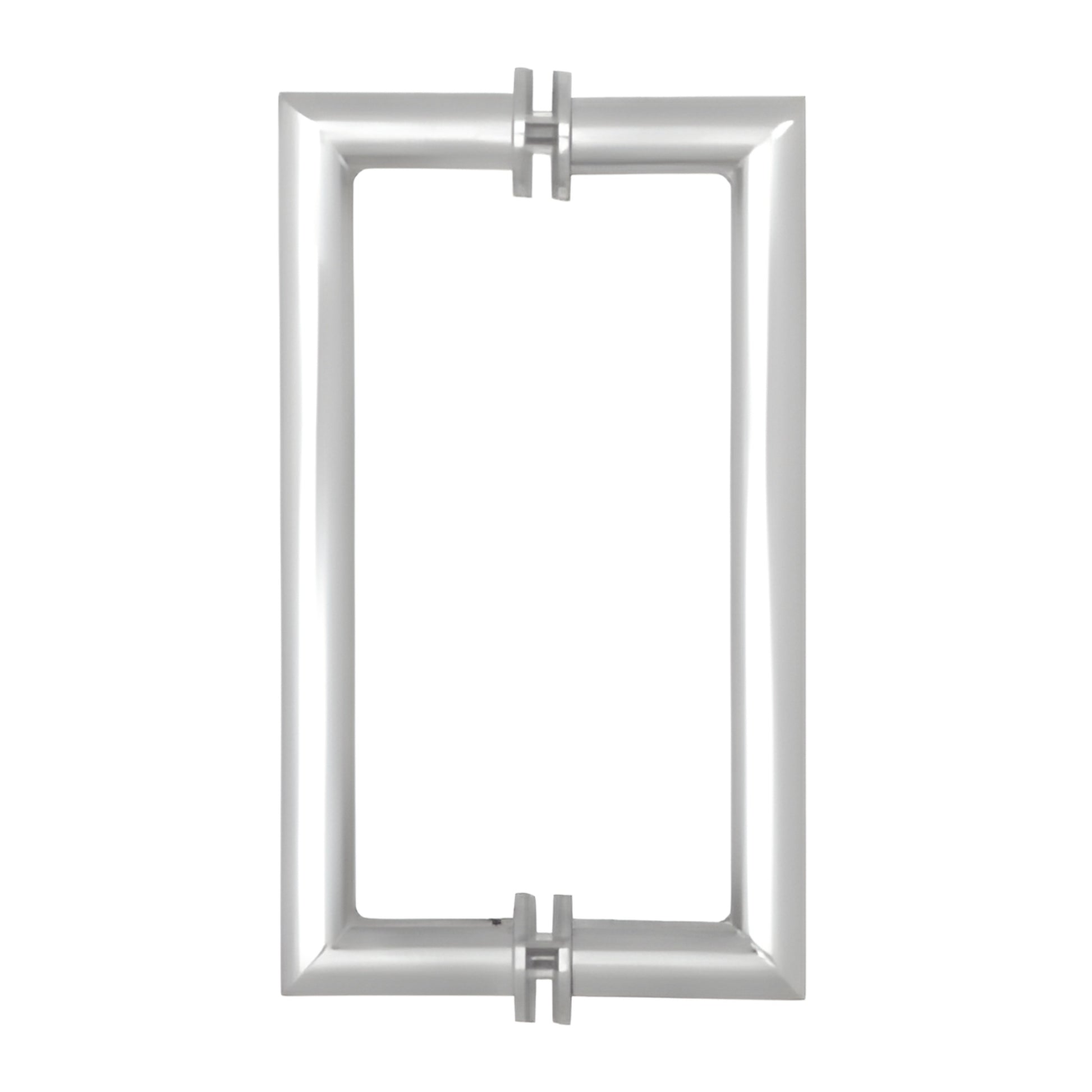

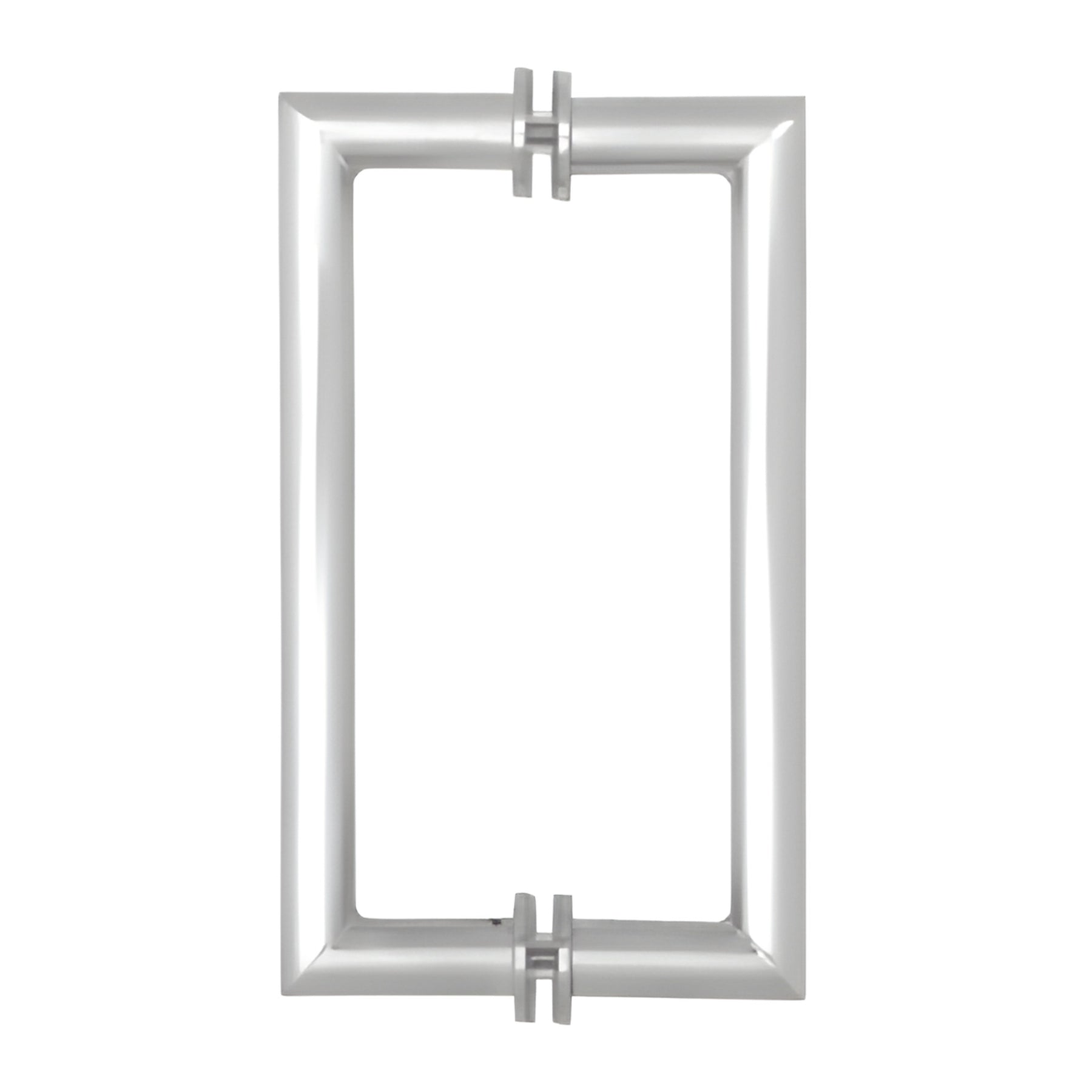

CRL Glass Mounted Mitered Corner Style Pull Handles (SKU: MH24X24BS) are made from 1" (25 mm) stainless steel tubing. The mitered corners deliver a clean, modern look ideal for all-glass doors and commercial glass door applications.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) glass
Construction: 1" (25 mm) round stainless steel tubing
Glass Fabrication Required: Two 5/8" (16 mm) diameter holes
INCLUDES:
2 Each: Through-bolts for glass mounting
4 Each: 1-1/4" (32 mm) diameter matching finish metal washers and rubber gaskets
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. Periodic maintenance is recommended to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Shop MH24X24BS glass door pull handles now — contact us for availability and finish options.
Specifications
CAD Drawings - dwg
