CRL 24 in Polished Stainless Steel Mitered Corner Glass Door Pull
CRL 24 in Polished Stainless Steel Mitered Corner Glass Door Pull
Regular price
$171.32 CAD
Regular price
Sale price
$171.32 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# MH24X24PS
Shipping Weight: 3.02 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.02 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. (10 mm)
Mounting Center To Center
24 in. (610 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
Overview
- For 3/8" and 3/4" (10 and 19 mm) glass
- Includes mounting hardware
- Available in several sizes and finishes
- Use monolithic tempered glass

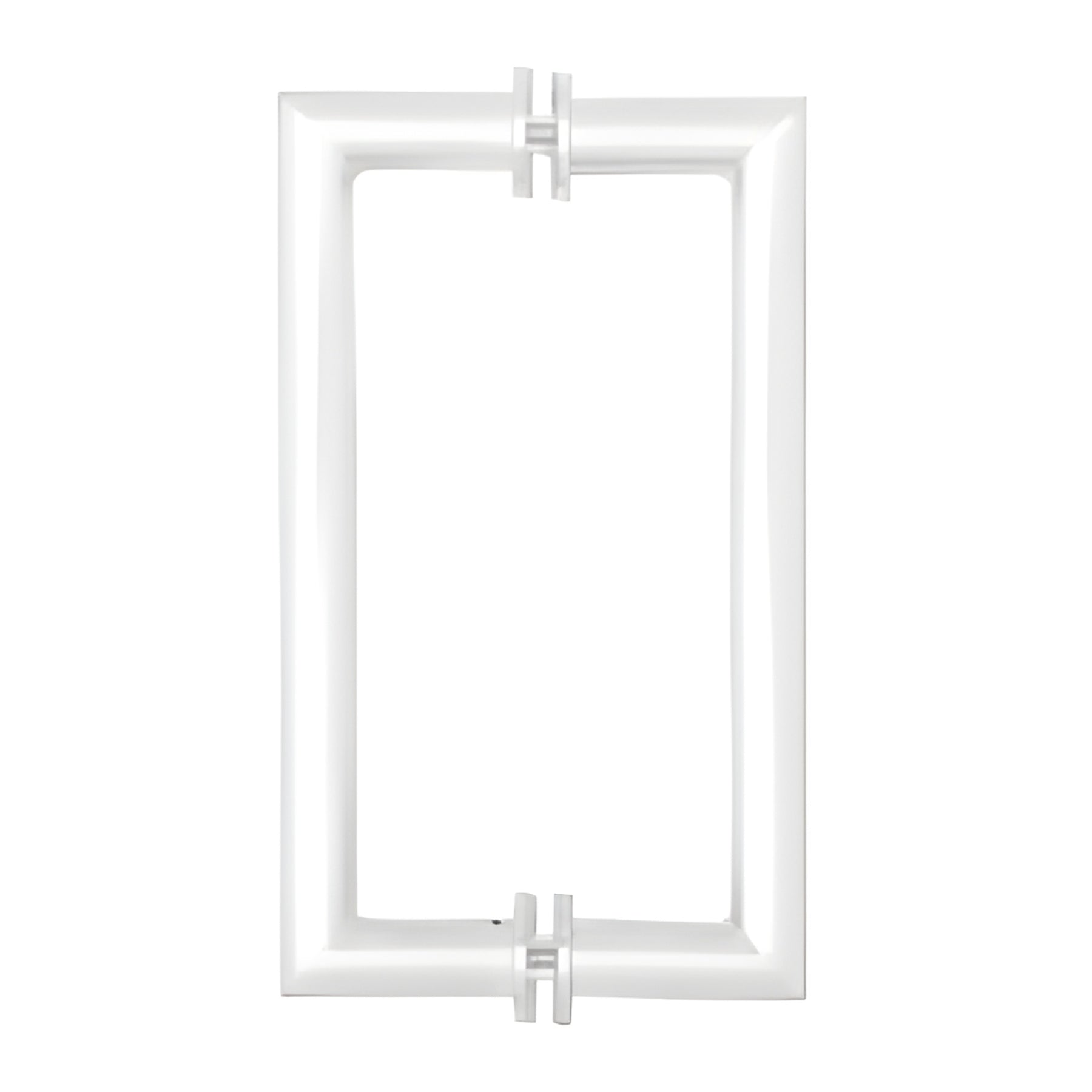

CRL Glass Mounted Mitered Corner Style Pull Handles (SKU: MH24X24PS) are crafted from 1" (25 mm) round stainless steel tubing. The precision mitered corners deliver a clean, modern look for all‑glass doors and commercial storefronts. Designed for glass door applications where a sleek, durable pull handle is required.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) glass
Construction: 1" (25 mm) round stainless steel tubing
Glass Fabrication Required: Two 5/8" (16 mm) diameter holes
INCLUDES:
2 each: Through‑bolts for glass mounting
4 each: 1‑1/4" (32 mm) diameter matching‑finish metal washers and rubber gaskets
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not entirely rust‑proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for care guidance.
Durable, low‑profile mitered corner pull handles for tempered glass doors — perfect for commercial glass door projects. Order MH24X24PS today.
