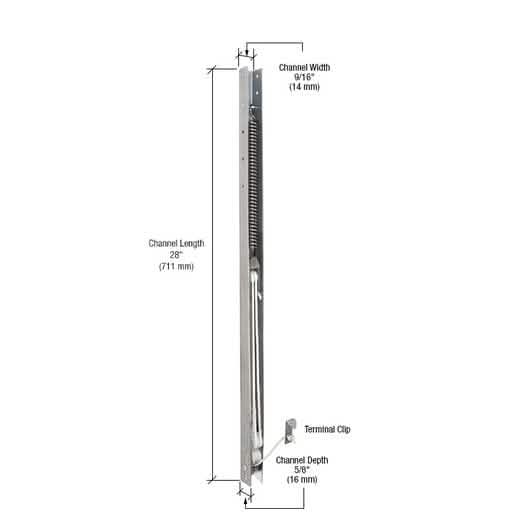

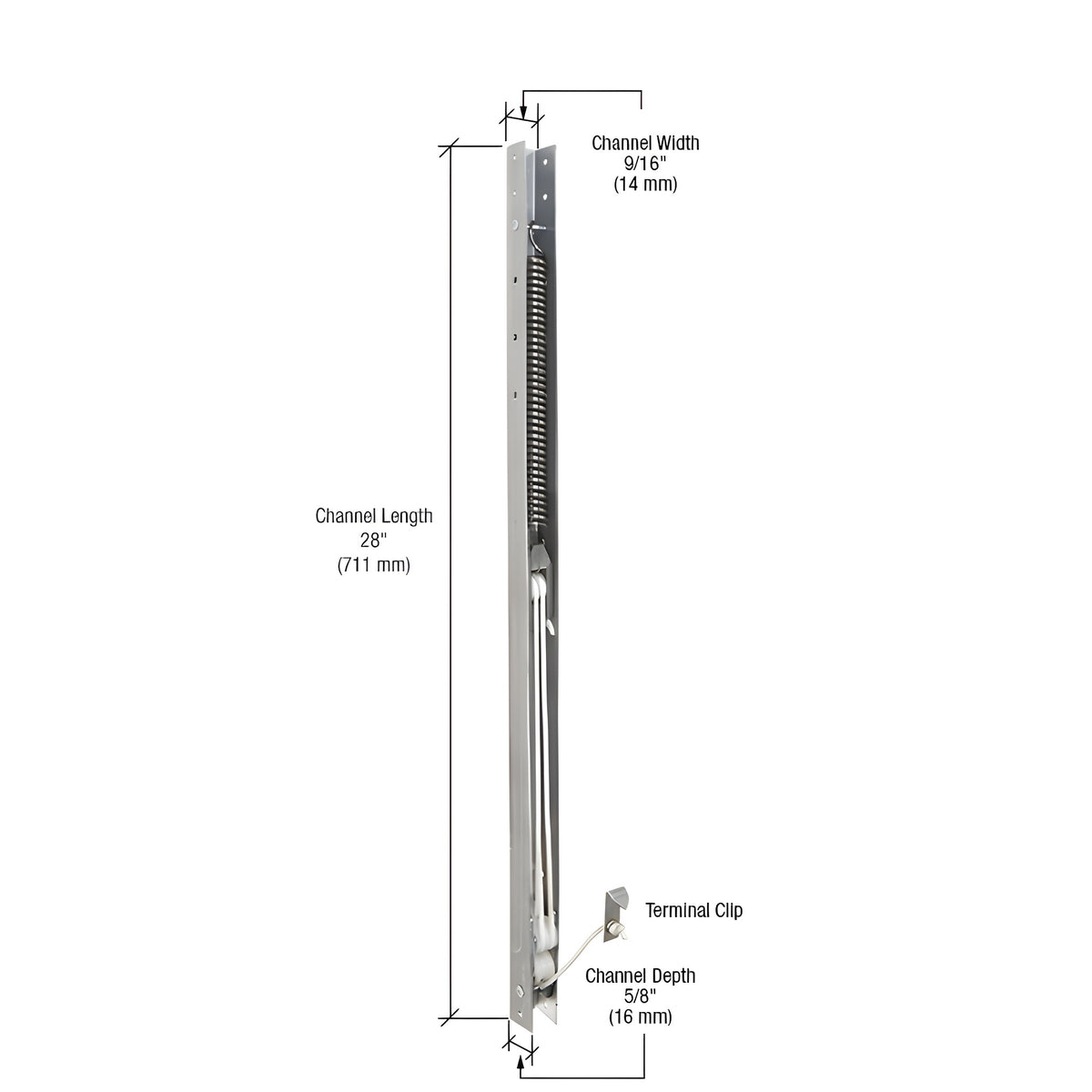

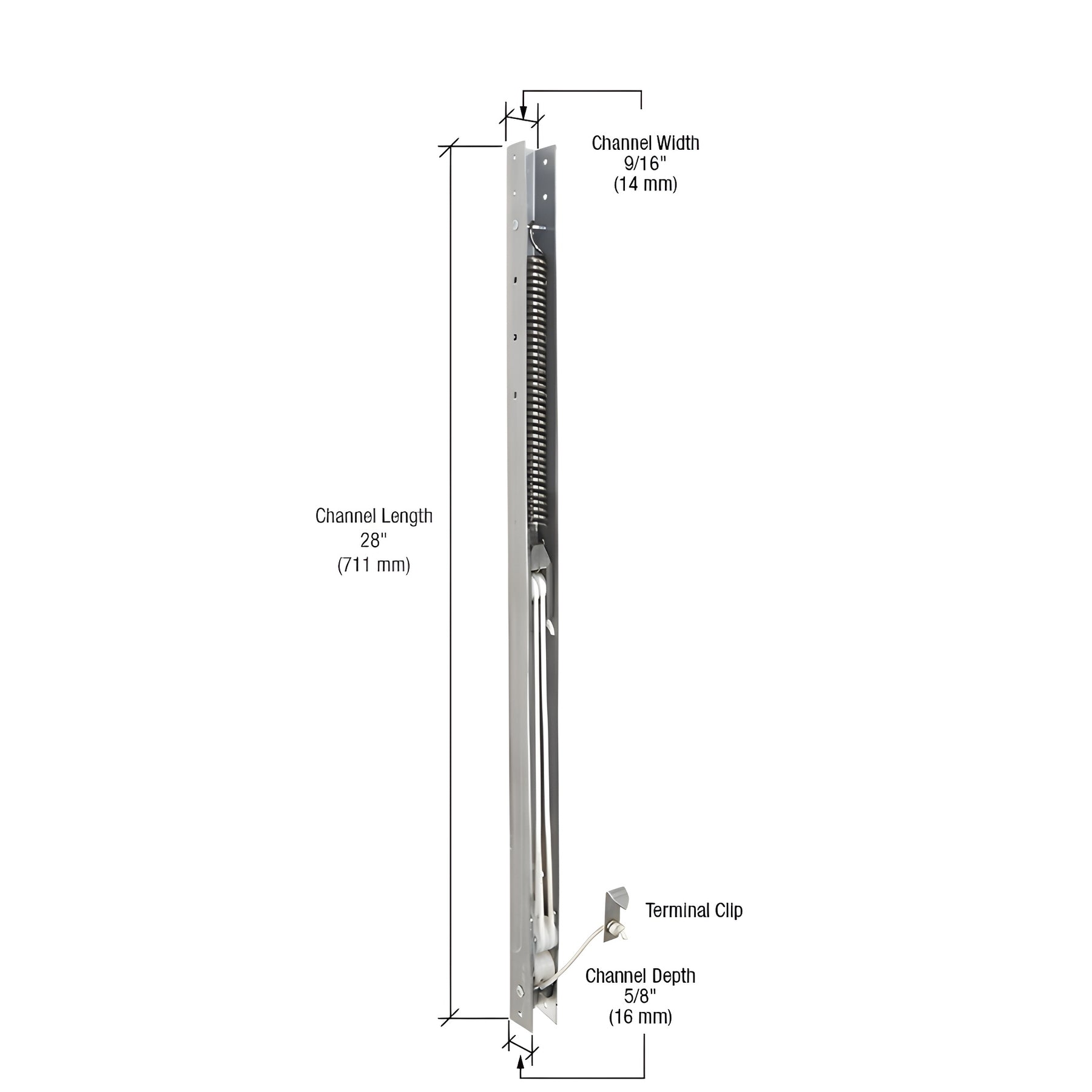

CRL 28 in Window Sash Channel Balance 2730 (27-3) Replacement

• Measures 5/8" (16 mm) depth — commonly referred to in the trade as 1/2" (13 mm)
• Available in 10, 20, 30, 40 and 50 weight-range balances in lengths from 13" to 43" (330 mm to 1.09 m)

Each CRL FA Series 3/30 Weight Range Sash Balance (SKU FA2730) requires one of several nylon guides riveted to the top and bottom of the metal channel. For a strong, reliable rivet set, use Cat. No. H3740 Rivet Set Tool (sold separately). These sash balances are designed for smooth vertical window operation and long service life.


Guide options (nylon guides):
FS290B, FS291B, FS292B, FS293B, FS294B, FS295B, FS296B, FS297B, FS298B, FS299B


Ordering tips for FA Series sash balances

Remove the existing channel balance from the window and measure the metal channel only — do not include the guides. Record the length in full-inch increments. Use the stamped or laser-etched ID on the back of the channel balance (four numbers or two numbers and a letter), for example: 2710 or 27-2.

If the stamped ID and measured length match the chart, select the corresponding CRL part (for example: 1710 or 17-1 on an 18" channel = FA1710). If you have a full 27" channel and the ID reads 2610 or 26-1, select FA2610. The chart lists vent weight ranges indicating the sash weight a pair of channel balances will hold; it does not account for excessive weatherstrip friction.

Note: Some manufacturers used special 1/2" (12.7 mm) increment channel lengths. These are not stocked but can be special ordered. Also, the first two numbers of the CRL catalog number do not represent channel length — always verify the stamped ID.

Special weight-range channel balances (single-weight designs such as 90, 9, or DS suffixes) are available by special order; these indicate a specific sash weight (for example 2790-26 or 27DS-34) and may be intended for upper or lower sashes only. Provide that information when ordering.

Product warning:

The first two numbers of the CRL catalog number do not represent the length of the channel.
