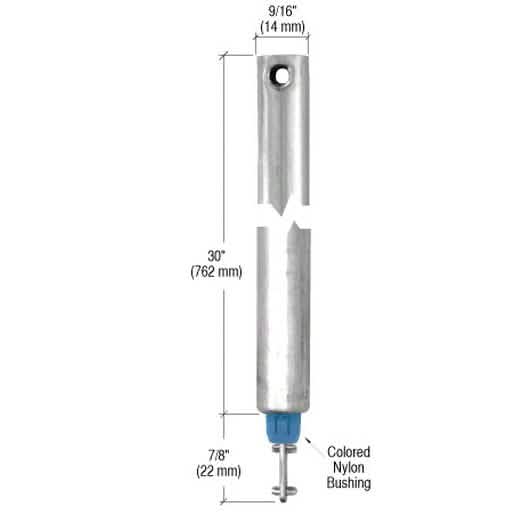

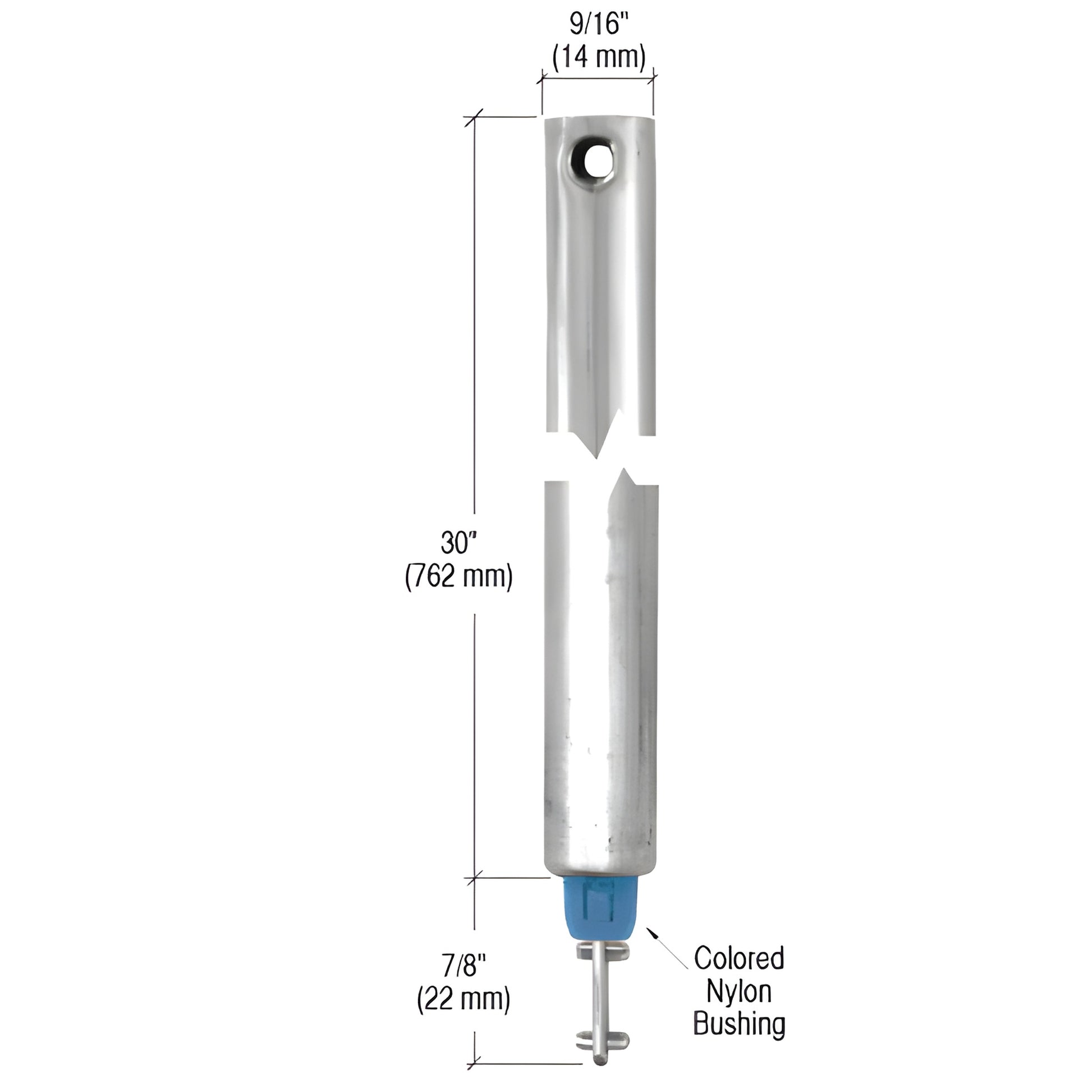

CRL 30 in Spiral Tilt Window Balance with Blue Bushing - Replacement

• Blue bushing indicates sash load weights up to 22 pounds (9.5 kg)
• Tilt window tubular spiral balance for 9/16" (14 mm) tube diameter
• Direct replacement for metal or plastic tube balances

This CRL Tubular Spiral Window Balance (SKU: FH3030) is a replacement spiral balance for tilt-type windows with a 9/16" (14 mm) tube and a sash load capacity up to 22 pounds (9.5 kg). Sold individually; for best performance and balanced operation, replace both window balances at the same time.


How to order this tubular spiral window balance (FH3030):
1. Confirm the tube diameter on the old balance is 9/16" (14 mm).
2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only — do not include the rod extension.
3. Verify the color of the nylon bushing (blue for this model).
4. Check that the rod extension protruding from the nylon bushing matches your existing balance.
5. Match tube diameter, tube length, and nylon bushing color to the information shown with the catalog number. If all match and the rod extension aligns with the photo, FH3030 is the correct replacement.

Order CRL FH3030 tubular spiral window balances now to restore smooth tilt-window operation — replace both balances for optimal results.
