CRL 31" Tubular Spiral Tilt Window Balance Replacement - Blue Bushing
CRL 31" Tubular Spiral Tilt Window Balance Replacement - Blue Bushing
Couldn't load pickup availability
Shipping Weight: 7.92 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

Description
Overview
- Blue bushing indicates sash load up to 35 pounds (15.9 kg)

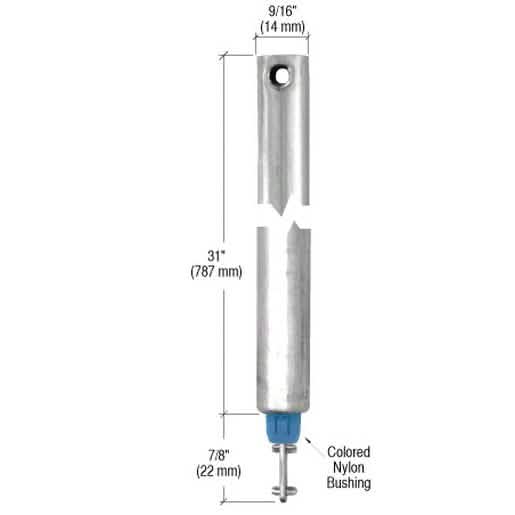

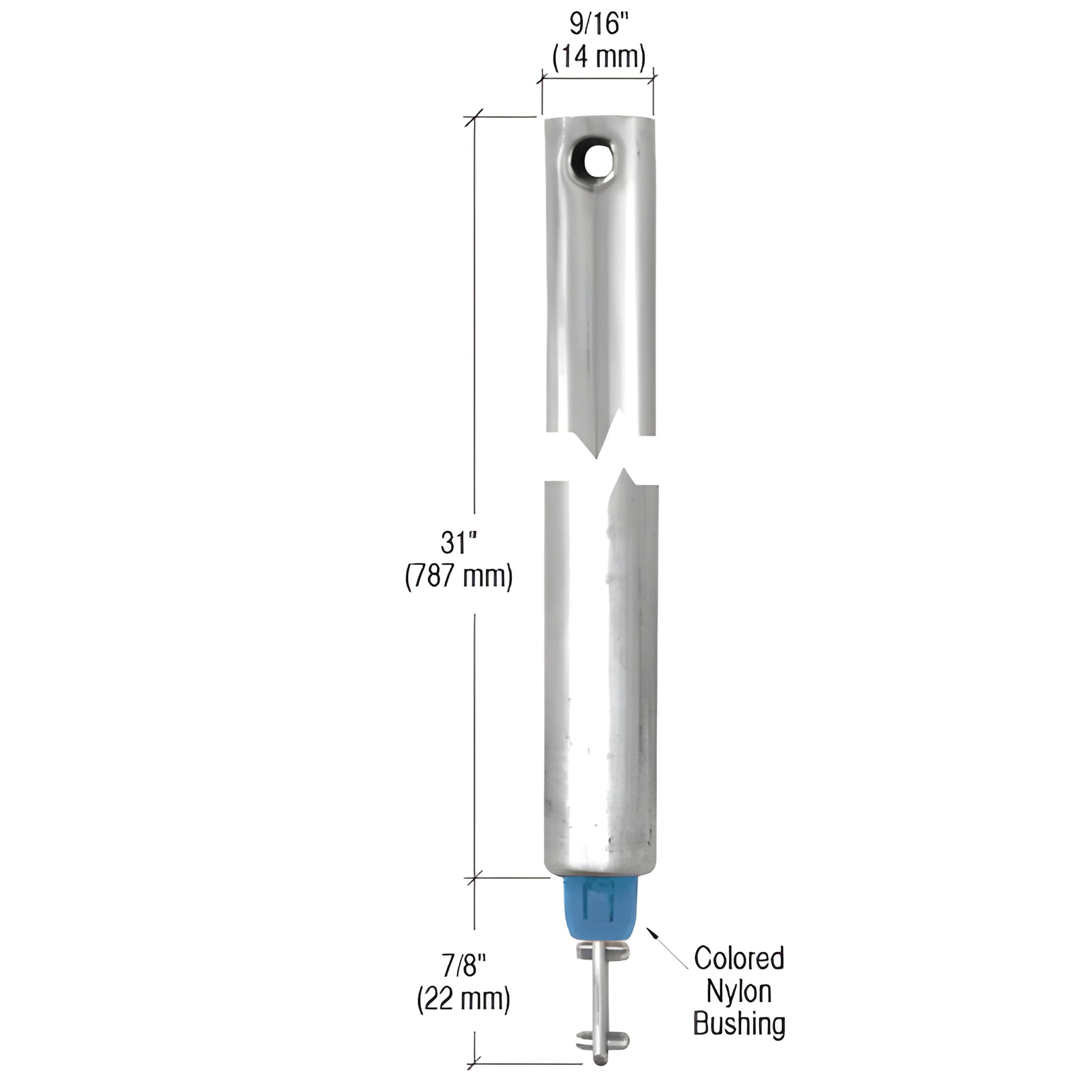

- Tilt window tubular spiral balance — industry-standard 9/16" (14 mm) tube diameter
- Direct replacement for metal or plastic tube balances
This CRL Tubular Spiral Window Balance (SKU: FH3130) fits tilt-type windows and replaces 9/16" (14 mm) metal or plastic tube balances with a sash load capacity up to 35 pounds (15.8 kg). Sold individually; we recommend replacing both balances in the window at the same time for balanced operation.
How to Order Tubular Spiral Window Balances:
- 1. Confirm the tube diameter of the old metal or plastic tube (9/16" / 14 mm).
- 2. Measure tube length from the end of the balance to the bottom of the colored nylon bushing only — do not include the rod extension.
- 3. Check the color of the nylon bushing (blue indicates 35 lb capacity).
- 4. Verify the rod extension protruding from the nylon bushing matches your existing balance.
- 5. Match tube diameter, tube length, and bushing color to the specifications shown next to the catalog number. If all match and the rod extension looks the same, this is the correct replacement balance.
