CRL 316 Brushed SS 2-3/8" x 1" Glass Standoff Base & Domed Cap
CRL 316 Brushed SS 2-3/8" x 1" Glass Standoff Base & Domed Cap
Regular price
$113.60 CAD
Regular price
Sale price
$113.60 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# RS0B215BS
Shipping Weight: 1.67 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.67 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Material
316 Stainless Steel
Width
2 in. (51 mm)
Overview
- For use with 1/2" and 3/4" (12 and 19 mm) monolithic tempered glass or 9/16" and 27/32" (13.52 and 21.52 mm) laminated tempered glass using Kuraray SentryGlas® interlayer
- High-grade 316 stainless steel alloy standard for superior corrosion resistance
- Brushed or polished stainless finishes available to match architectural trim

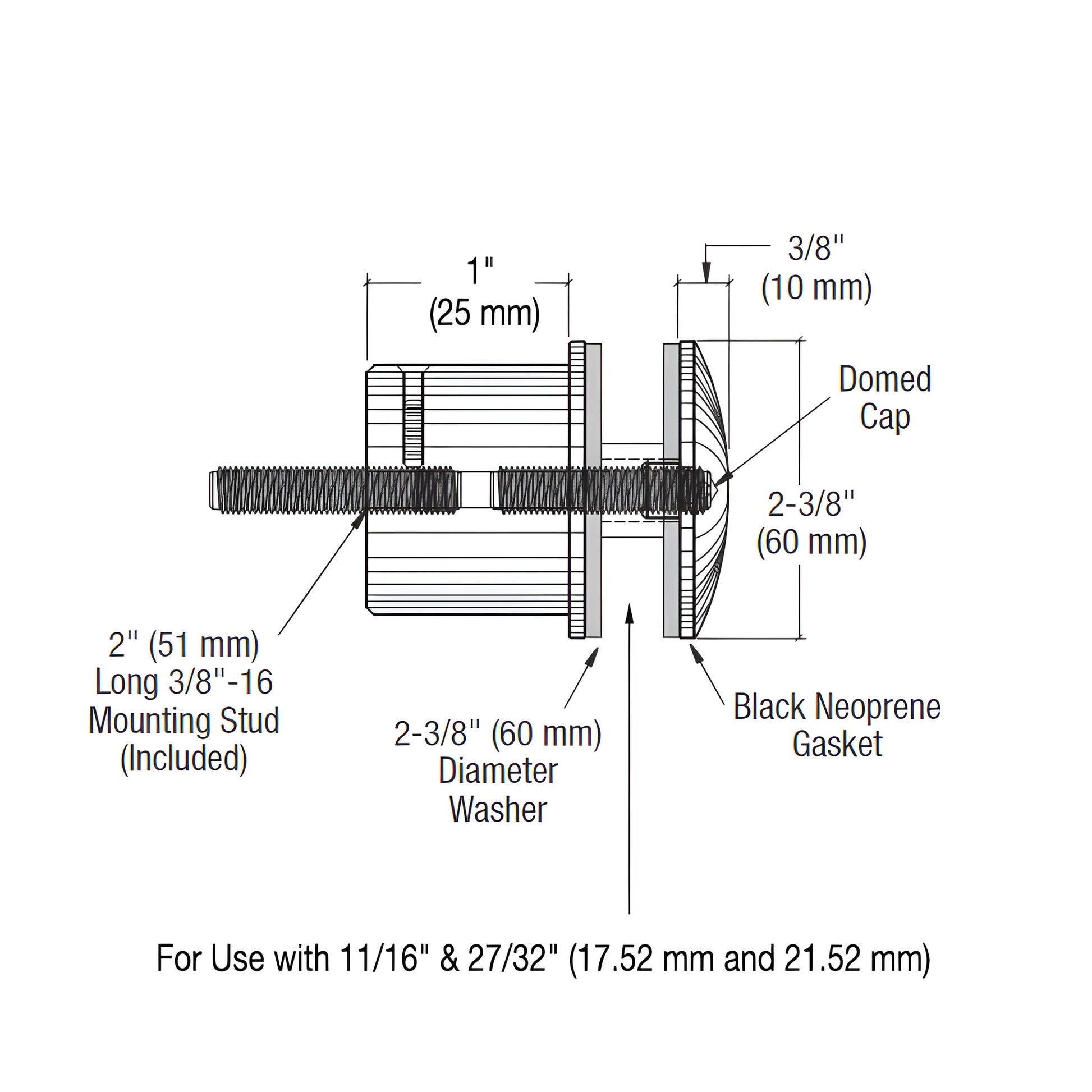

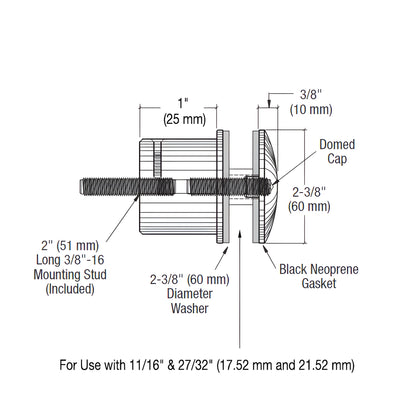

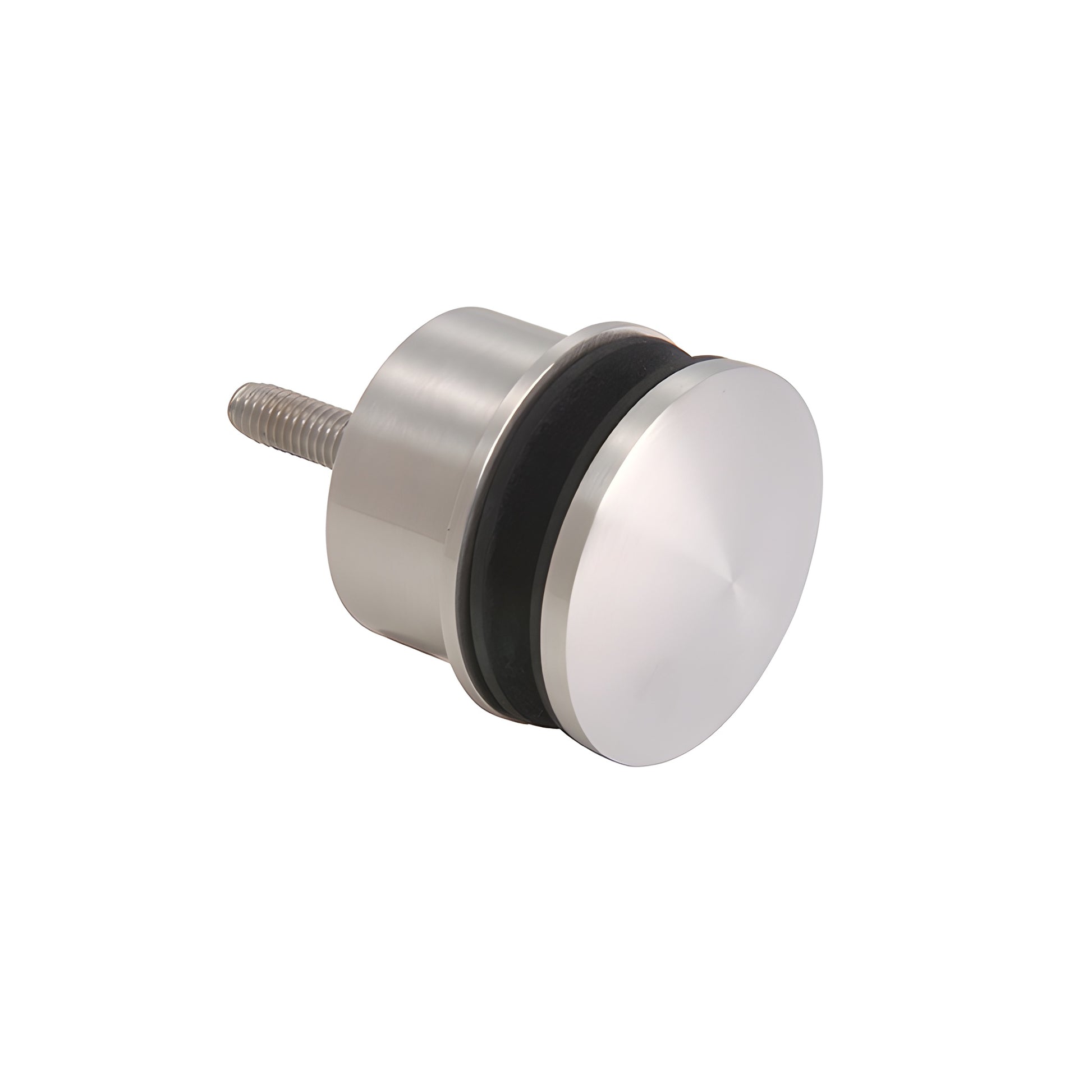

These CRL heavy-duty point supported standoffs (SKU RS0B215BS) are engineered for glass handrail and guardrail applications. Each standoff features a 2-3/8" (60 mm) diameter with a 1" (25.4 mm) standard projection from the mounting surface. Included: 3/8"-16 x 2" (51 mm) Allen stud for steel mounting, gasketing and grommet. Attachment anchors for wood and concrete are available separately. Custom lengths and diameters can be ordered for specialty glass railing projects.
SPECIFICATIONS: Compatible with 1/2" or 3/4" (12 or 19 mm) monolithic tempered glass and with 9/16" and 27/32" (13.52 and 21.52 mm) laminated tempered glass using Kuraray SentryGlas® interlayer.
GLASS FABRICATION: One 3/4" (19 mm) diameter hole per fitting.
SPACING: Maximum horizontal spacing depends on application and mounting conditions. Minimum center-to-center height spacing: 4" (102 mm).
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for care details.
Designed for commercial and residential glass railing systems — order SKU RS0B215BS or contact CRL for custom sizes and installation accessories.
Specifications
CAD Drawings - dwg
