Product Details
- For Use with 1/2" and 3/4" (12 and 19 mm) Monolithic Tempered Glass or 9/16" and 27/32" (13.52 and 21.52 mm) Laminated Tempered Glass Using Kuraray SentryGlas® Interlayer
- High Grade 316 Stainless Steel Alloy Standard
- Brushed/ Polished Stainless and Matte Black Finishes Available

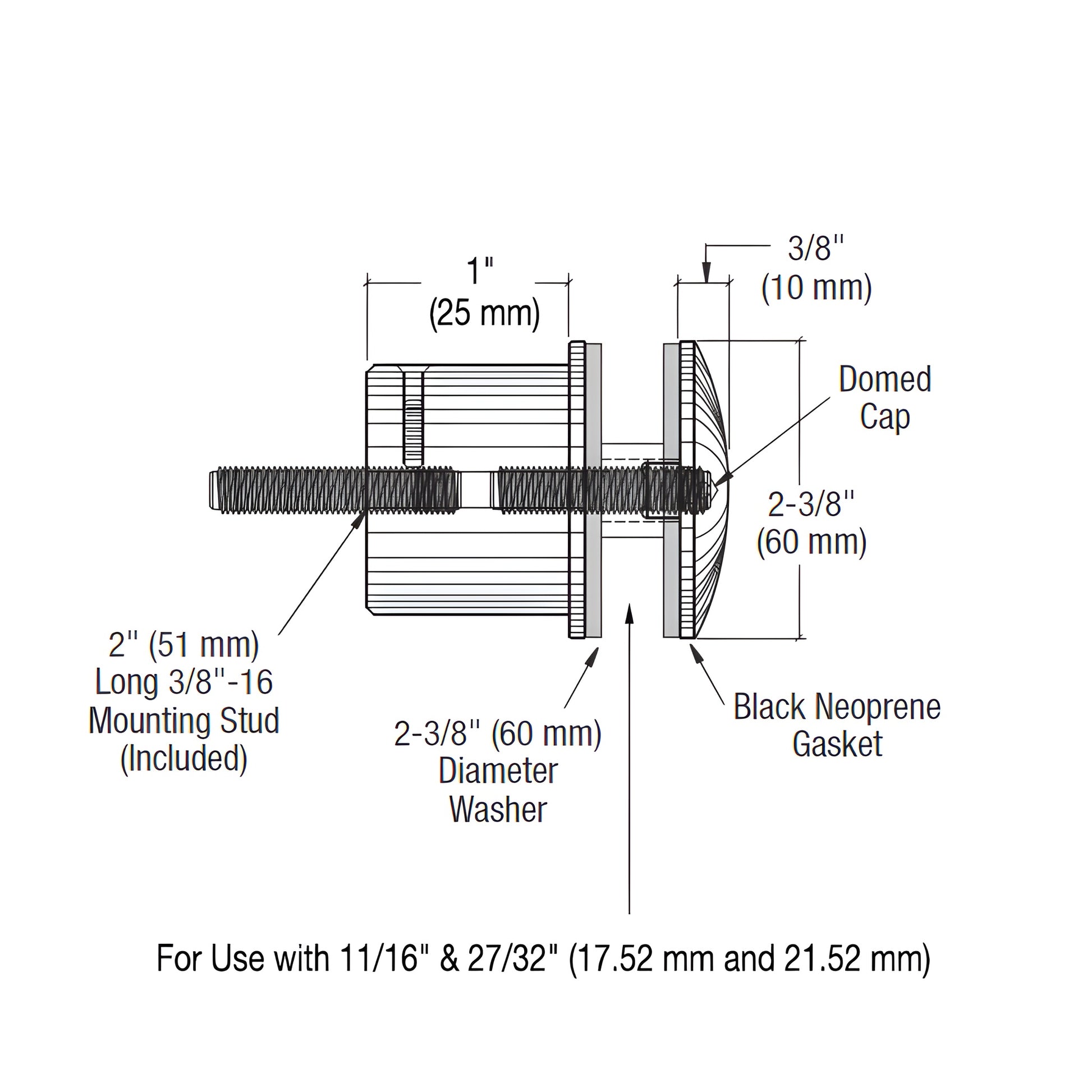

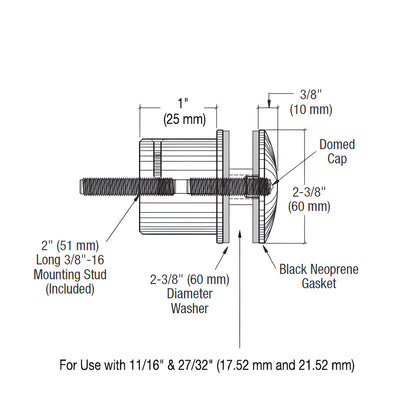

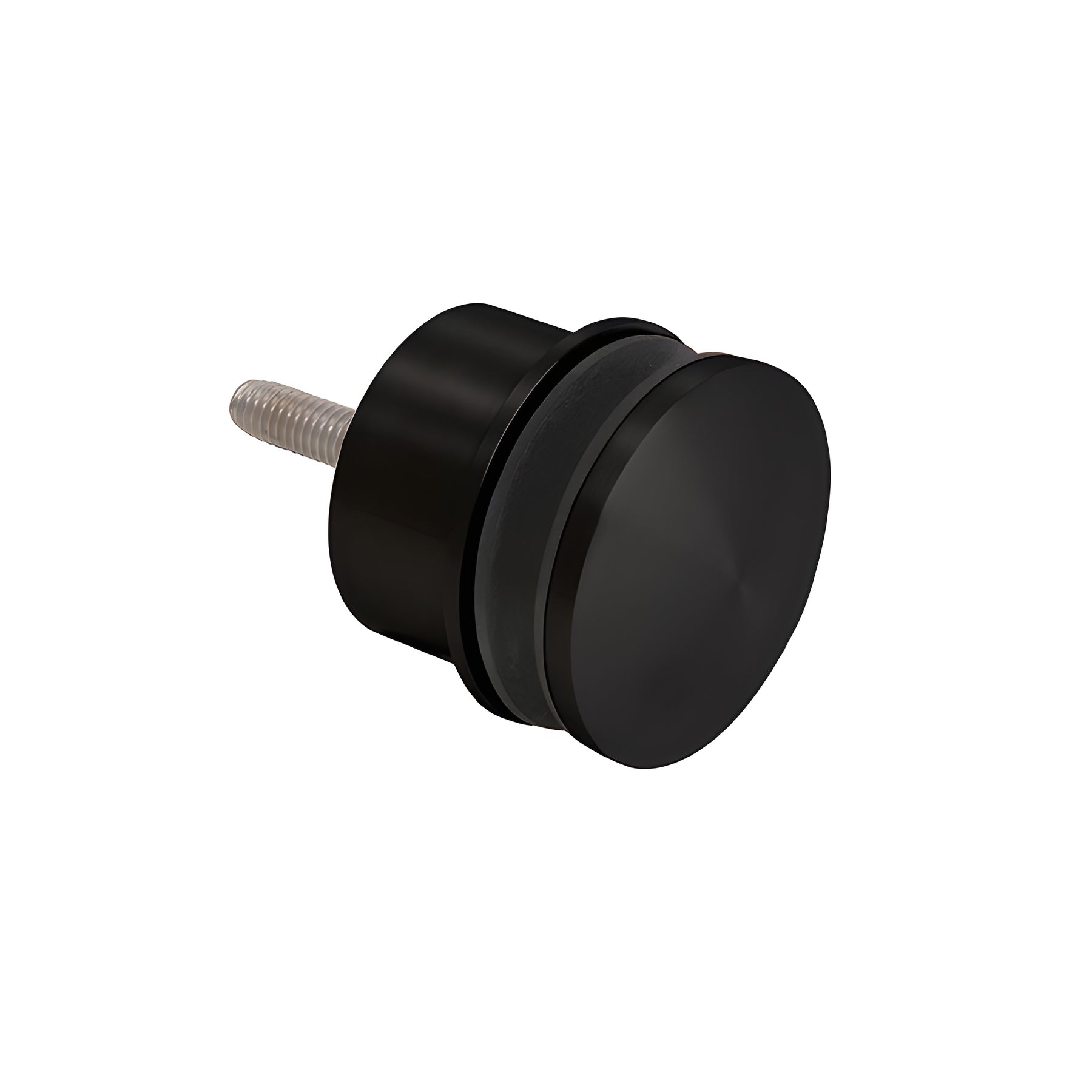

These CRL Heavy-duty Point Supported Standoffs are designed for glass Hand Rail or Guard Rail applications. The standoff fitting has a 2-3/8" (60 mm) diameter x 1" (25.4 mm) standard projection from the installed attachment point. Custom lengths and diameters are also available. It comes with a 3/8"-16 x 2" (51 mm) Allen Stud for mounting to steel, along with necessary gaskets and grommet. Attachment anchors for wood and concrete are also available.
SPECIFICATIONS: For use with 1/2" or 3/4" (12 or 19 mm) monolithic tempered glass. Also for use with 9/16" and 27/32" (13.52 and 21.52 mm) laminated tempered glass using Kuraray SentryGlas® Interlayer.
GLASS FABRICATION: One 3/4" (19 mm) Diameter Hole Per Fitting.
SPACING: Maximum horizontal spacing between fittings depends on its use and mounting conditions. The minimum height spacing is 4" (102 mm) center-to-center.
