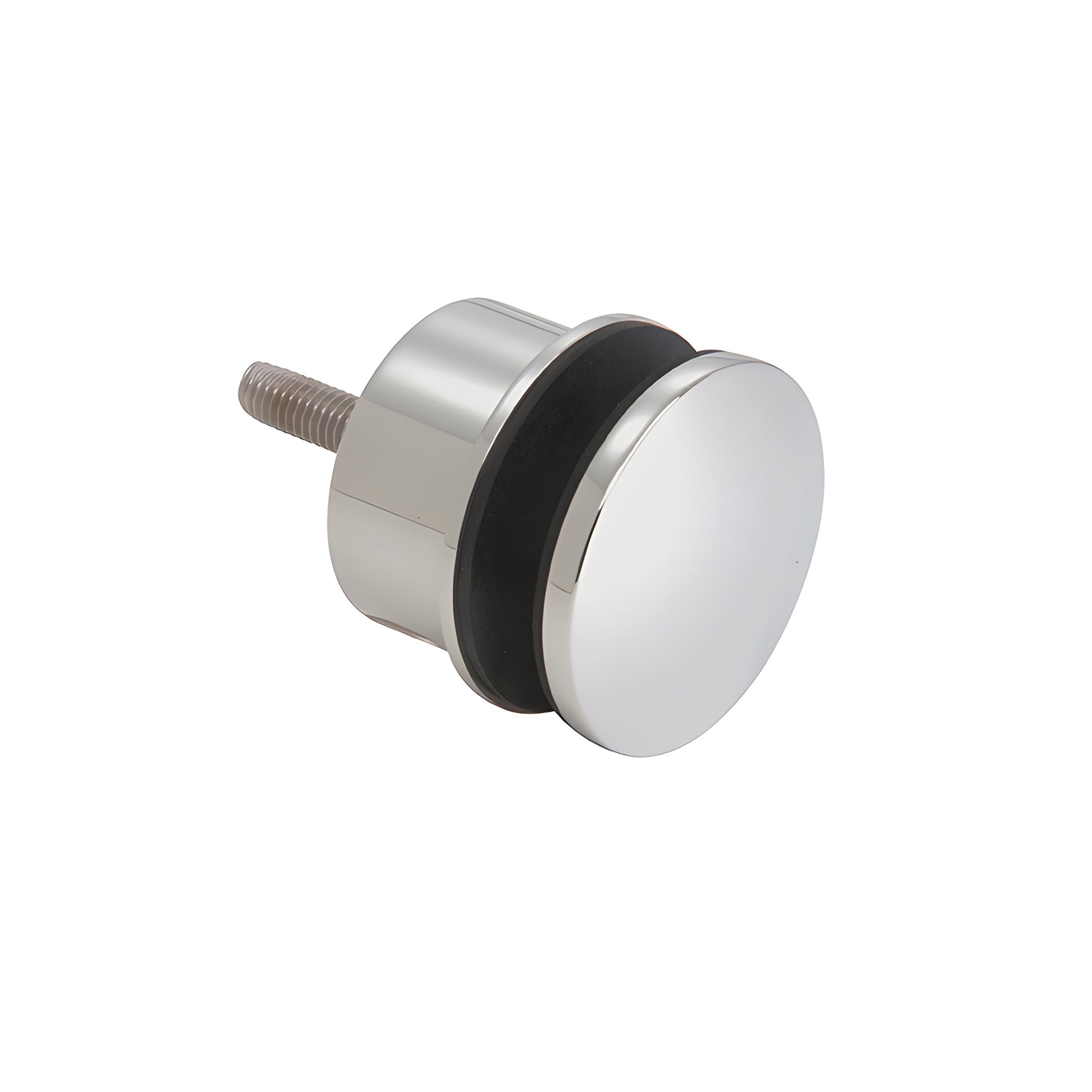

CRL 316 Stainless Glass Standoff 2-3/8" x 1" Domed Cap
CRL 316 Stainless Glass Standoff 2-3/8" x 1" Domed Cap
Regular price
$124.61 CAD
Regular price
Sale price
$124.61 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# RS0B215PS
Shipping Weight: 1.595 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.595 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Material
316 Stainless Steel
Width
2 in. (51 mm)
Overview
- For use with 1/2" and 3/4" (12 and 19 mm) monolithic tempered glass or 9/16" and 27/32" (13.52 and 21.52 mm) laminated tempered glass using Kuraray SentryGlas® interlayer
- High-grade 316 stainless steel alloy — marine-grade corrosion resistance for outdoor and coastal glass railing projects
- Available in brushed or polished stainless finishes to match architectural handrail and guardrail systems

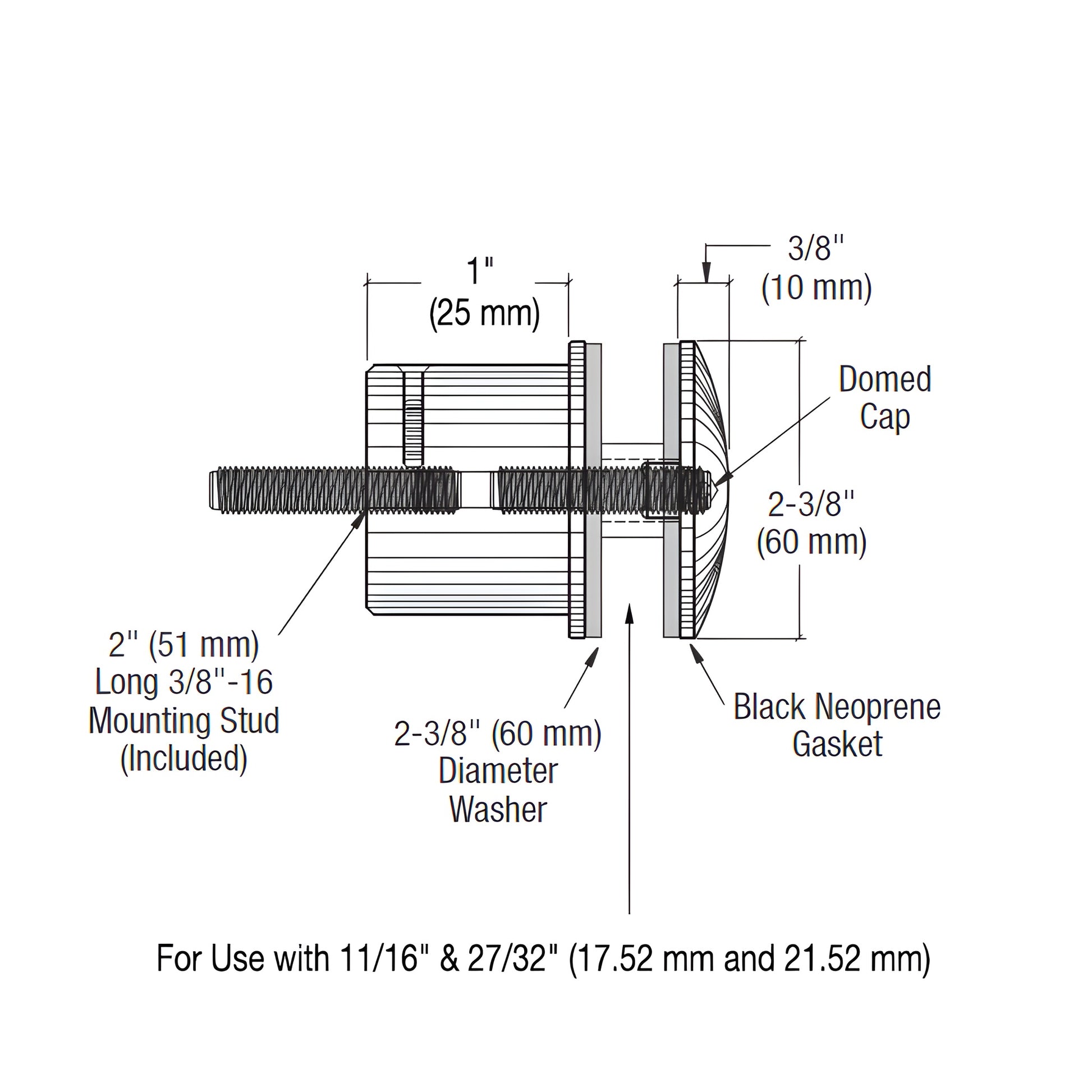

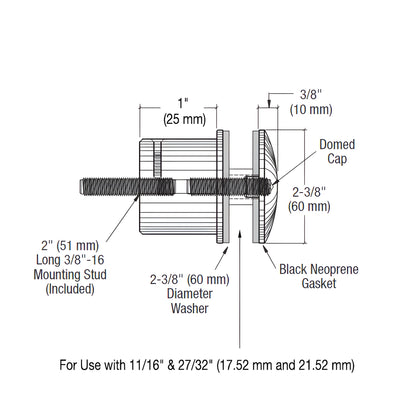

These CRL heavy-duty point supported standoffs (SKU: RS0B215PS) are engineered for glass handrail and guardrail applications. The standoff features a 2-3/8" (60 mm) diameter with a 1" (25.4 mm) standard projection from the attachment point. Includes a 3/8"-16 x 2" (51 mm) Allen stud for mounting to steel plus the required gaskets and grommet; attachment anchors for wood and concrete are available. Custom lengths and diameters can be supplied for specialty glass railing installations.
SPECIFICATIONS: Compatible with 1/2" or 3/4" (12 or 19 mm) monolithic tempered glass and 9/16" or 27/32" (13.52 and 21.52 mm) laminated tempered glass using Kuraray SentryGlas® interlayer.
GLASS FABRICATION: One 3/4" (19 mm) diameter hole per fitting required.
SPACING: Maximum horizontal spacing depends on application and mounting conditions; minimum vertical spacing is 4" (102 mm) center-to-center.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not stain- or rust-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for maintenance guidance.
Ideal for architects, contractors, and fabricators specifying 316 stainless steel standoffs for glass railing projects — order SKU RS0B215PS or contact CRL for custom options and installation accessories.
Specifications
CAD Drawings - dwg
